Description
Our full work station kit provides a quick and easy way to set up your electronics workbench; giving you full protection against any static generation.
Bondline’s range of work station kits are designed to keep you grounded when working with static-sensitive devices. This includes printed circuit boards, computer motherboards, hybrid bio-electronic devices and more.
(Full Work Station Kit is supplied with blue bench mat unless otherwise specified).

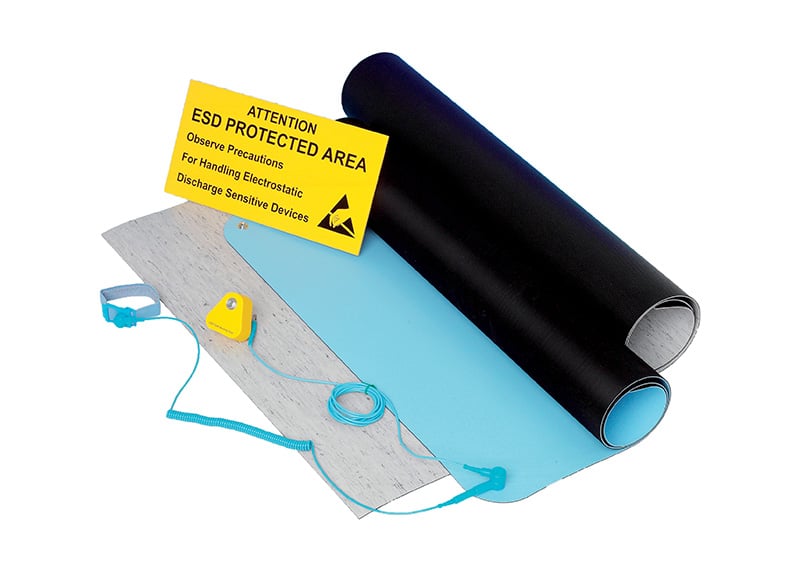

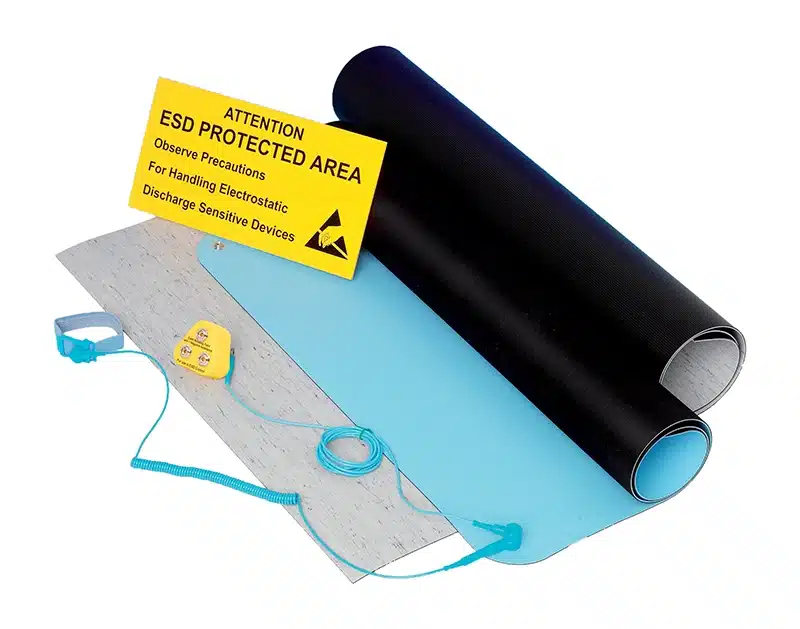

This full work station kit includes:
Static dissipative rubber bench mat (KSMLF)
- Static-dissipative surface with conductive backing.
- Scratch-resistant and prevents the sliding of components.
- Standard blue colour and 2mm thick.
- Easy to clean.
- The dissipative top layer is resistant to abrasion, heat, solders flux and most commonly used solvents.
- Meets the requirements of US ESD Associations ANSI S4.1 and S20.20 guidelines.
- RoHS and REACH compliant.
Static dissipative floor mat (BFM)
- 600 x 1200mm or 600x 1500mm
- Two layer flooring mat.
- Static-dissipative surface with conductive backing.
- 2.5mm thick.
- Abrasion-resistant.
- Suitable for chair castors.
- Re-usable.
- RoHS and REACH compliant.
- Complies to DIN EN 6134051 standards.
- Insulation resistance according to DIN VDE 0100-410 (personnel safety).
Premium coil cord (CCS)
- Dual molding on terminations for maximum strain relief.
- All snaps have 1 meg ohm safety resistor.
- Standard colour is light blue.
- Exceeding 20,000 cycles of bending life test.
- Breakaway Force: 1 to 5 lbs. Of pull away force is required to disconnect the snap in a normal disconnect direction.
- Ground Lead Extendability: Cord should return back to at least 85% of its original length in less than 10 minutes after hanging for 24 hours, with 1kg. weight on the other end.
- Compliant according to IEC-61340-1-5 International Standard.
- RoHS and REACH compliant.
Straight grounding lead (SCJ)
- Standard cord with dual moulding on terminations for maximum strain relief.
- 3m long (10ft).
- All snaps have 1 meg ohm safety resistor.
- Standard colour is light blue.
- Exceeding 20,000 cycles of bending life test.
- Breakaway Force: 1 to 5 lbs. Of pull away force is required to disconnect the snap in a normal disconnect direction.
- Compliant according to IEC-61340-1-5 International Standard.
- RoHS and REACH compliant.
Premium wrist strap (HCA10)
- The conductive woven fibres are silver for maximum conductivity and minimum skin irritation.
- Double thickness material ensures outer layer insulation for complete operator safety.
- Curved buckle for added comfort.
- 10mm stud as standard.
- Compliant according to IEC-61340-1-5 International Standard.
- RoHS and REACH compliant.
Earth bonding plug (BP)
- UK plug, 1 x 10mm stud, no resistor.
- Supports EN 61340-5-1 & ESD S20.20 ESD Handling.
ESD rigid awareness sign (Sign)
- Warning sign for the attention of entering an ESD Protected Area.
- Rigid material with self-adhesive backing.
- Printed in yellow and black as standard.
- Features the ESD cautionary symbol.
Options
| Ref | Bench Mat Size |
|---|---|
| KSWKS7 | 1200 x 600mm |
| KSWKS8 | 1500 x 600mm |
