Heavy Duty Conductive Rubber Matting

Heavy duty conductive rubber matting in rolls of 1.2m x 10m or cut-size lengths. For use in heavy traffic areas around machinery. 4mm thick, black, conductive rubber material. Excellent conductive and anti-slip properties. Complies with ESD specifications BS EN-61340-5, ANSI 520.20 and IEC-61340-5-1. Please contact us if you require cut mats.

an icon of a lightning bolt

Product Code: hd/con/mat

Clear

From £450.00

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

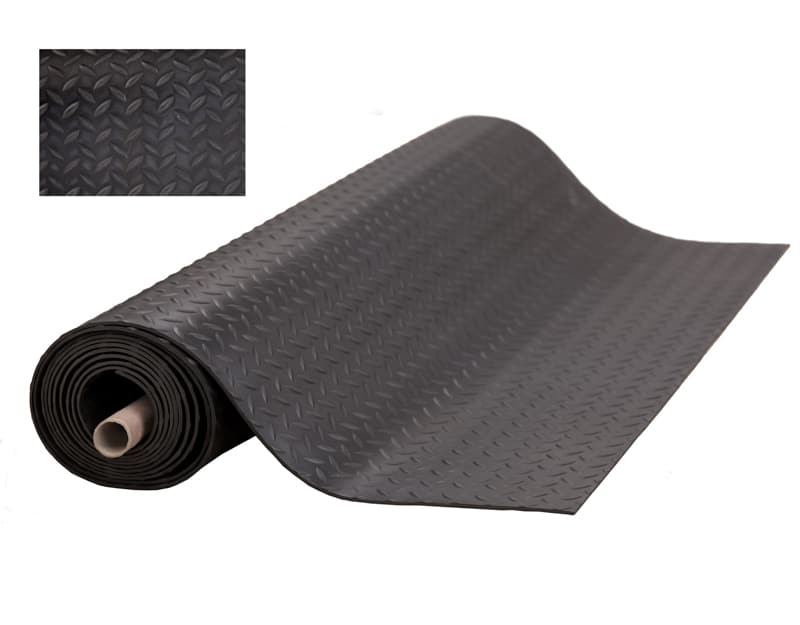

Heavy duty conductive rubber matting in rolls of 1.2m x 10m or cut-size lengths. Suitable for use in heavy traffic areas around machinery such as wave solder machines. The black, conductive, rubber material is highly durable, long-lasting with a non-slip surface finish. The surface layer is resistant to solder-splash and most commonly used oils and acids. The matting is ideally to be used in conjunction with already grounded flooring. It can also be grounded via a 1 meg-ohm lead and 10mm stud. The mat features an abrasive, non-slip, 4mm diamond pattern surface. Complies with the requirements of the IEC 61340-5-1 International Standard.

If you require a cut-size length, please get in touch with our sales team to discuss your requirement.

Key Features of Heavy Duty Conductive Rubber Matting:

ESD safe label - Bondline IEC-61340-5-1 bondline RoHS compliant
ESD safe label - Bondline ANSI 520.20 bondline REACH compliant
ESD safe label - Bondline BS EN-61340-5 CE Icon WEB-min-alt CE approved



*Due to variations in computer monitor displays, colour shown may not be exact.*

*All bespoke cut mat sizes will have a +/-10% manufacturing tolerance dependent on size.*

View our full range of ESD flooring materials.

Additional information

Weight N/A
Select a product:

KSDIA10 – Full Roll Matting – 1.2m x 10m x 4mm thick, KSDIAM – Matting Per Linear Metre (Cut Mat – On Request)

Technical Datasheet

Heavy Duty Conductive Rubber Matting: Technical Datasheet

Cleaning & Maintenance

For optimum electrical performance and shelf-life, the surface of the mat must be cleaned regularly using an ESD-safe mat cleaner. We recommend using a mild, multi-purpose neutral cleaner that does not contain any alkali, ammonia or chemicals on RoHS and REACH SvHC. See our Staticide mat and table top cleaner. Please note: IPA wipes, normal cleaners, Dettol or general anti-bacterial products are NOT RECOMMENDED to be used.   Staticide Mat and Table Cleaner

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more. To contact our team, please fill in the form below or click here.
