Vinyl Bench Matting

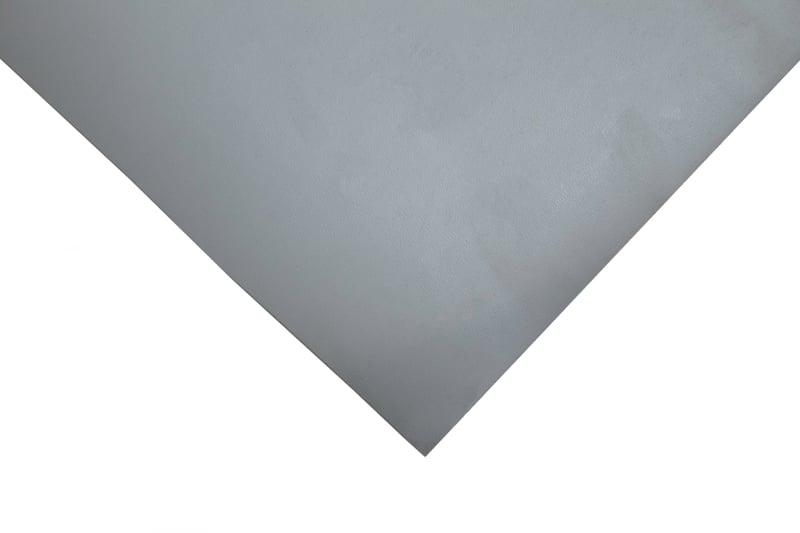

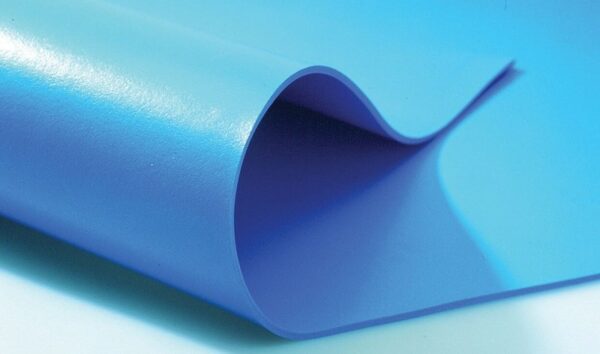

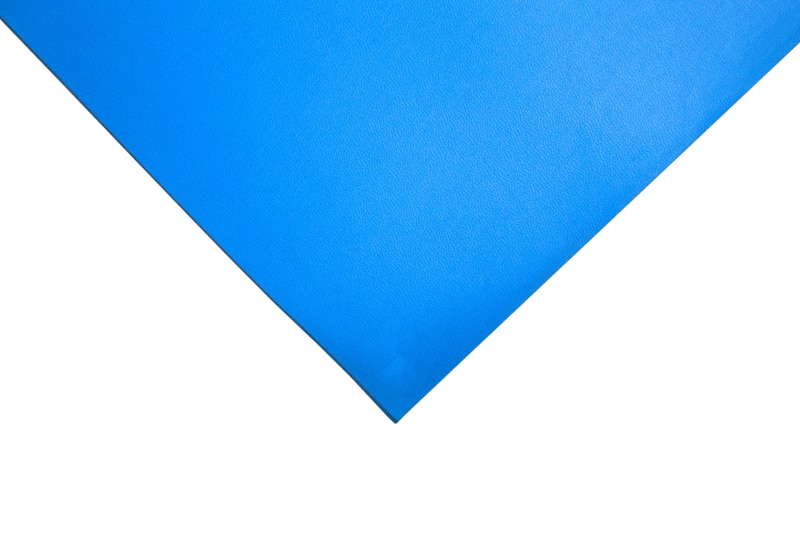

Superior, three-layer, static-dissipative vinyl matting. Vinyl bench matting provides excellent protection against harmful static charges. Designed to protect components and operatives. Available in blue or grey. Size is 1.2m x 15m or 1.2m x 600mm (or on request).

an icon of a lightning bolt

Product Code: vin/ben/mat

Clear

From £9,999.00

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

Superior performance, three-layer, anti-static vinyl bench matting.

This anti-static vinyl bench matting provides excellent protection against harmful static charges. It is specifically manufactured for use on workbenches to protect components and operatives. The matting has a surface resistance of 10^(6) ­ 10^(9) ohms / square and is 3mm thick. Can be supplied in any cut sizes on request and is available in blue or grey as standard.

The surface layer is made from a solid vinyl material with a conductive centre layer and a foam base. Light pebble surface finish. Textured vinyl top surface is chemical and scratch resistant. Meets or exceeds IEC 61340-5-1 resistance requirements.

We recommend using our Staticide Mat and Table Top Cleaner with this product to effectively clean the matting’s surface.

Example of an ESD Workstation:

ESD Workstation  Workbench Set Up Bondline

Key Features:

Resistance To Chemicals

PVC is resistant to many different chemicals, alkalies and general industries chemicals. PVC resists alcohols, aliphatic hydrocarbons, oils, weak acids, strong mineral acids and alkalies. PVC resists oil and grease if properly cleaned. PVC does not resist organic solvents, ketones, esters and aromatic hydrocarbons.

To view our full range of ESD matting, click here.

Additional information

Select a product:

VBLM10 – Vinyl Matting Maximum Roll – 1.2m x 15m, VBLM42 – Vinyl Standard Mat – 1.2m x 600mm – 10mm – Stud In Each Corner

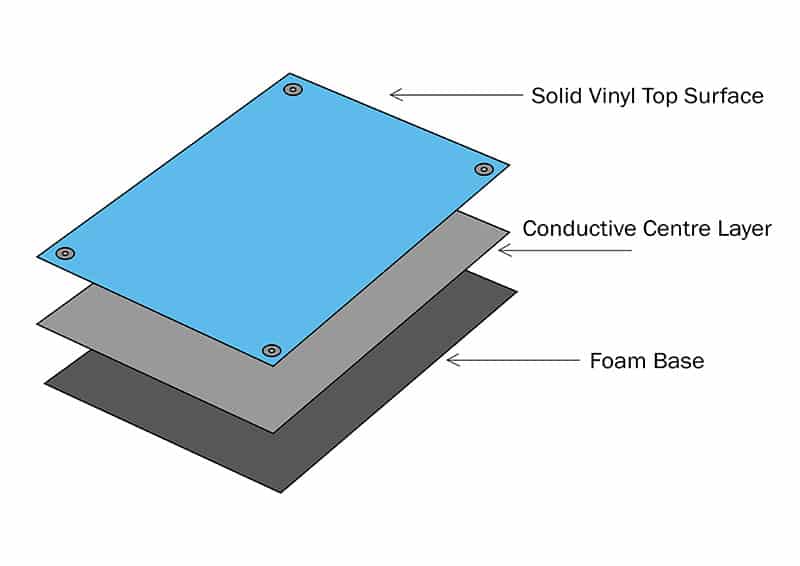

Construction

Three-layer construction consists of:

3 Layer Matting Structure

Bespoke Matting

We provide a premium service of bespoke custom sizing and studding for our bench matting to suit all customer requirements. If you would like bespoke customisation, please make an enquiry to us.

Simon cutting ESD mat Bondline  Rounding Mat Corners Resize   Mat Studding Process Bondline  Stud in ESD Mat Bondline

Cleaning and Maintenance

For optimum electrical performance, the bench matting must be cleaned regularly using an ESD-safe mat cleaner. We suggest using our Staticide mat and table top cleaner for best cleaning results. This will maintain the original resistivity of the anti-static matting whilst extending its shelf-life.

Cleaning Directions

1) Apply liberally to the areas to be cleaned.

2) Wait 2-3 minutes to allow emulsifiers to penetrate.

3) Ensure the matting is fully dry before using it.

ESD Mat and Table Top Cleaner

Technical Datasheet & Materials

Technical Datasheet

Click here to view the ‘Technical Datasheet’.

Materials

How Does An Anti-Static Mat Work?

ESD Matting Guidance
