Description

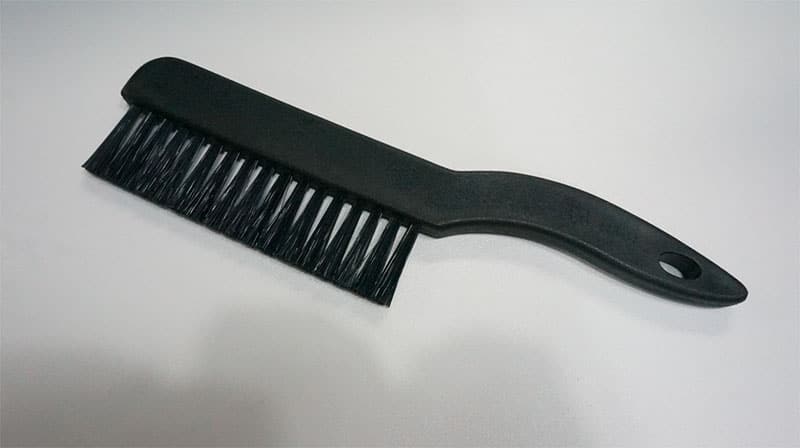

The KB927 255mm ESD Brush is developed for the safe cleaning of static sensitive components without generating any harmful static charges. The brush has a bristle length of 30mm and a bristle size of 130 x 5mm. The bristles are made with anti-static nylon fibres and the handle is made with a strong conductive polypropylene material. The KB927 255mm ESD Brush features a long handle and brush head for PCB cleaning application. This ESD brush does not produce dust particles. The brush consists of 40% polypropylene, 45% polyamide and 15% carbon fibre.

If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.

Key Features:

• Black brush handle and bristles
• Strong, conductive, polypropylene (PP) handle
• Soft, conductive fibre bristles
• Material composition: Polypropylene; 40% Polyamide; 45% Carbon Fibre 15%
• Ensures no harmful charges build up when brushing
• Safe for use on static sensitive components and assemblies

Application:

• For PCB cleaning application

Specification:

• Brush Length: 225mm
• Brush Width: 11mm
• Bristle Size: 130 x 5mm
• Bristle Length: 30mm
• Bristle Material: Anti-static nylon
• Handle Material: Conductive Polypropylene
• Surface Resistance: 10^(3) Ω x 10^(5) Ω
• Standard compliance: ANSI/ESD S20.20*1999 requirements EN61340-5-1

Standards and Regulations Compliance:

	IEC-61340-5-1 / EN-61340-5-1 compliant		RoHS compliant
	ANSI/ESD S20.20*1999 requirements		REACH compliant
	CE approved



View our complete ESD brush range.
