Description

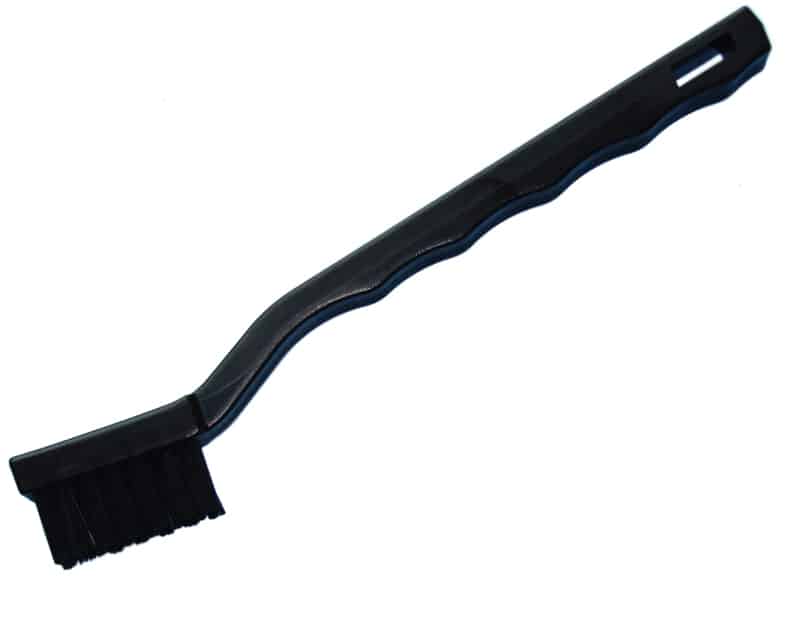

Clearance Killstat ESD Toothbrush (180mm) for only £2.25! This toothbrush style ESD brush is made with a strong, conductive polypropylene handle and soft, conductive fibre bristles. It features a long, easy-to-grip handle and a long brush head, providing ease of use when cleaning static sensitive components and assemblies. This brush does not generate any harmful static charges.

The Killstat ESD Toothbrush 180mm has a total brush length of 180mm and a brush width of 10mm. The bristles measure 15 x 10 x 35mm.

If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.

Product Features:

• Toothbrush style
• Black brush handle and bristles
• Ensures no harmful charges build up when brushing
• Safe for use on static sensitive components and assemblies
• Easy-to-grip, ergonomic handle for comfort during prolonged use
• Strong, conductive polypropylene handle
• Soft, conductive fibre bristles
• Standard compliance: ANSI/ESD S20.20*1999 requirements, EN61340-5-1 / IEC-61340-5-1

Application:

• For PCB cleaning application

Specification:

• Brush Length: 180mm
• Brush Width: 10mm
• Bristles (H/W/L): 15 x 10 x 35mm
• Bristle resistance: 10^(8) Ω ~ 10^(10) Ω
• Filament: Antistatic nylon
• Handle resistance: 10^(4) Ω ~ 10^(6) Ω
• Handle material: Conductive Polypropylene

Standards and Regulations Compliance:

	IEC-61340-5-1 / EN-61340-5-1 compliant		RoHS compliant
	ANSI/ESD S20.20*1999 requirements		REACH compliant
	CE approved



View our complete ESD brush range.
