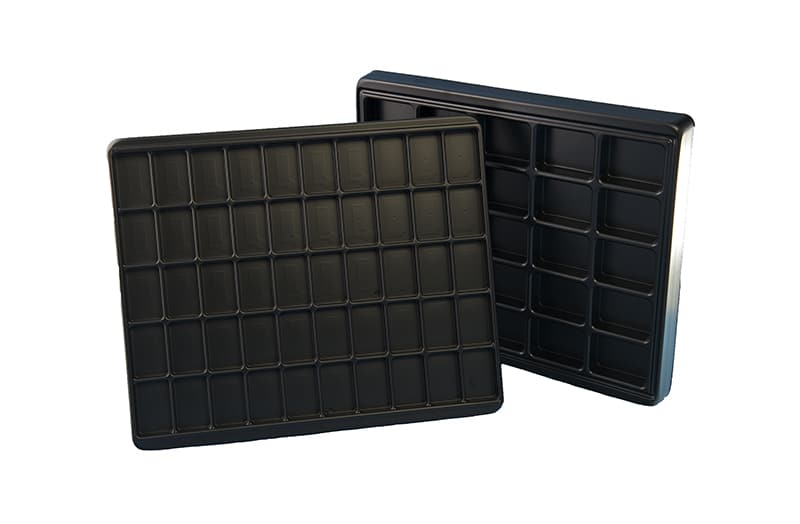

Conductive Component Trays

Keep high value components secure with Bondline's conductive component trays. Excellent solution for PCB and component storage as well as aiding electronic assembly. Designed for use in static sensitive areas. Trays can be vacuum formed in almost any configuration to give versatile method of storage. Four cell combinations available to suit all requirements.

an icon of a lightning bolt

Product Code: con/com/tra

Clear

From £9,999.00

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

Keep high value components secure with Bondline’s conductive component trays. An excellent solution for storing, packaging and shipping static sensitive components and printed circuit boards that require ESD-safe protection. The trays can also be used to aid electronics assembly. Component trays are critical elements of packaging purpose-designed and integral to the safety and security of high value precision parts and components that need a superior level of protection and security in transit or in the plant. The trays are constructed from HIPS (High Compact Polystyrene) which ensures durable, precise and safe storage for the components. Each tray can be vacuum formed in almost any configuration to give versatile method of storage. Trays are available in four combinations to suit all requirements, including various number of cells, sizes and depths. These can be one use options or robust enough for re-use many times over, designed for space saving storage whilst reducing road journeys. Storing components in the correct way ensures safe protection from ESD and physical and mechanical damage.

Key Features of Conductive Component Trays:

Specifications:

  • Density: 1.05 G/cm
  • Melt Flow Index: 2 G/10min
  • Tensile Strength: 25 MPa
  • Yield Strength: 24 MPa
  • Elongation At Break: 65%
  • Elongation At Yield: 3%
  • Moudulus of Elasticity: 2200 MPa
  • Vicat softening point 1.0 KG / 5.0KG: 99 Degrees Celsius
  • HDT 0.45 MPa: 90 Degrees Celsius
  • Volume Resistivity: <10^(3) Ωcm
  • Surface Resistivity: <10^(4) Ω
  • Shrinkage: 0.5%
  • Hardness Shore D: 90

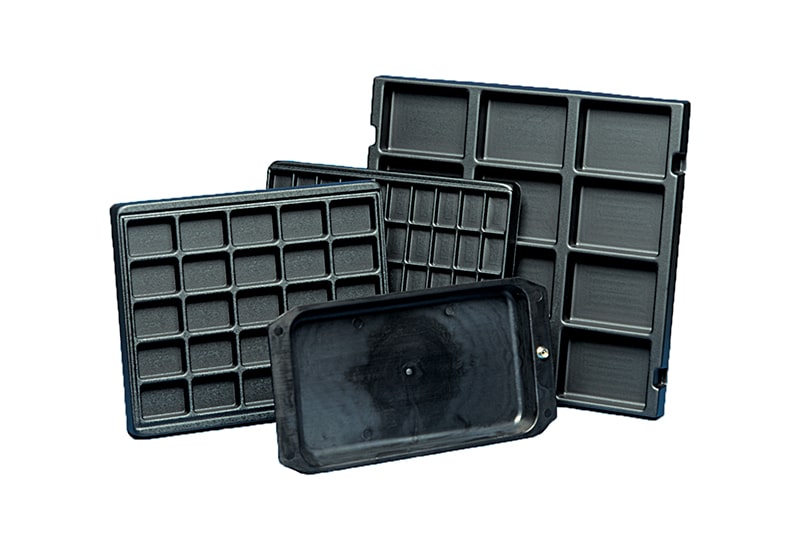

Available Options:

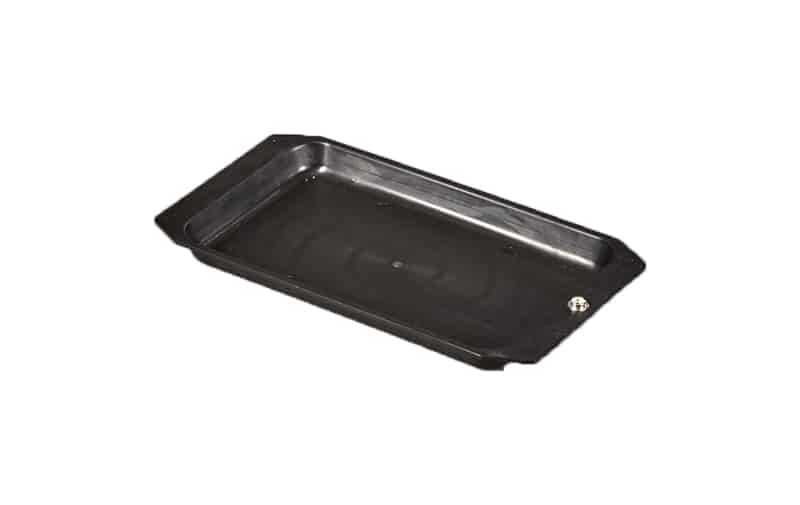

TY1 – 325 x 175 x 25mm deep. Single cell with 1 x 10mm stud

TY12 – 375 x 350 x 25mm deep. 12 cells. 103 x 79 x 24mm

TY25 – 305 x 250 x 22mm deep. 25 cells. 50 x 38 x 16mm

TY50 – 305 x 250 x 25mm deep. 50 cells. 42 x 26 x 13mm

Meets the Following ESD Standards & Regulations:

ESD safe label - Bondline IEC-61340-5-1 CE approved
bondline RoHS compliant bondline REACH compliant

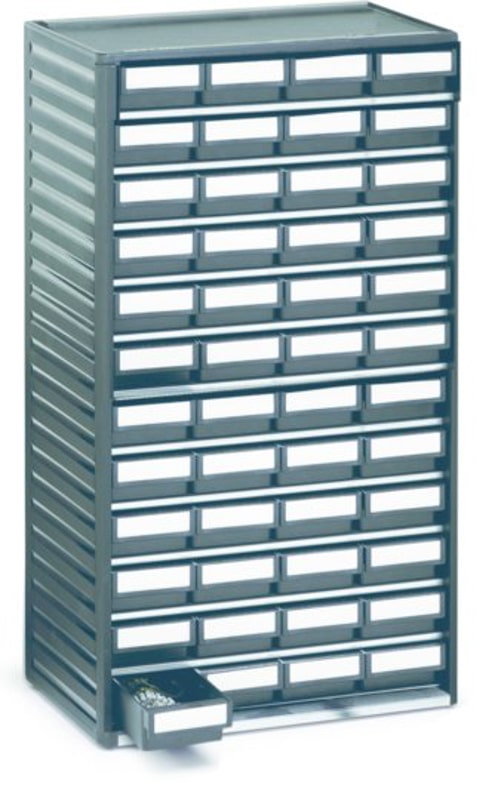

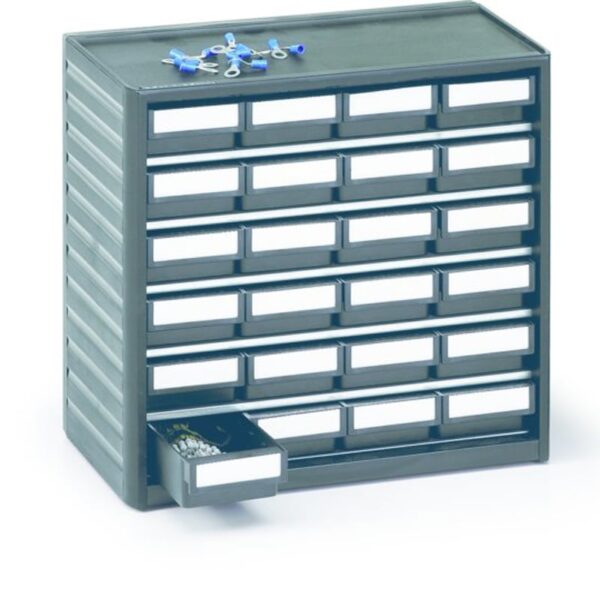

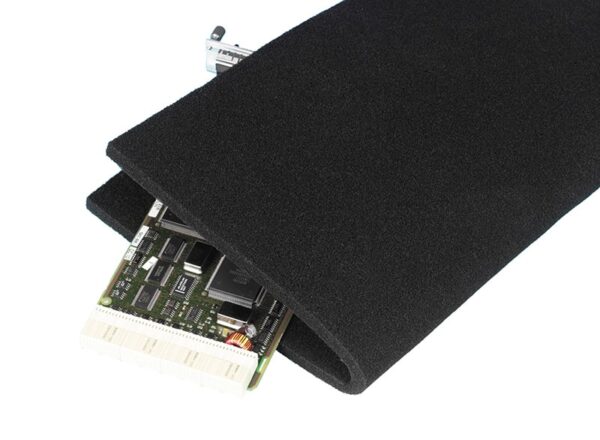

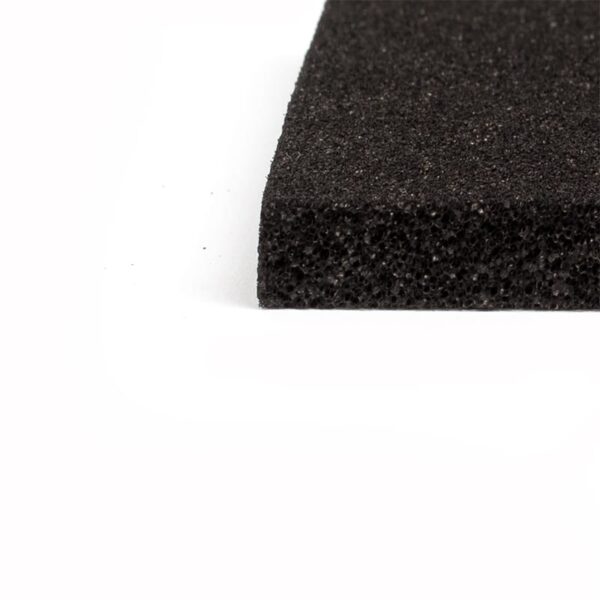

We have a whole range of component storage at Bondline to suit all needs, from conductive component boxes and component storage cabinets to anti-static foam. For more information or advice on component storage, please call +44 (0)1793 511000 or email sales@bondline.co.uk.

Additional information

Weight N/A
Select a product:

TY1 – 325 x 175 x 25mm deep – single cell with 10mm stud, TY12 – 375 x 350 x 25mm deep – 12 cells 103 x 79 x 24mm, TY25 – 305 x 250 x 22mm deep – 25 cells 50 x 38 x 16mm, TY50 – 305 x 250 x 25mm deep – 50 cells – 42 x 26 x 13mm

Technical Datasheet

Conductive Component Trays - Technical Datasheet
