Conductive Component Boxes

Securely store and transport your static sensitive components and devices with our Conductive Component Boxes with hinged lids. Our conductive polypropylene boxes offer a durable and cost-effective way to store and transport your static-sensitive components (PCBS, etc.) Conductive foam can be purchased separately.

£1.32£9.08 excl. VAT

Description

Conductive Component Boxes – Ideal for PCB and electronic component storage and shipping.

The way you store and transport your electronics can critically affect your business. Improper storage solutions or packaging can be costly, resulting in replacements and loss in time. You need to consider a number of factors before storing or shipping your electronic device. For example, if your electronic device is static sensitive then you will need to use the proper ESD-safe storage equipment to protect your device from static charge. Additionally, you would also want storage that is cost-effective, protects against mechanical charge and damage and can be re-usable. Determining which storage solution is right is the most important step in protecting the item.

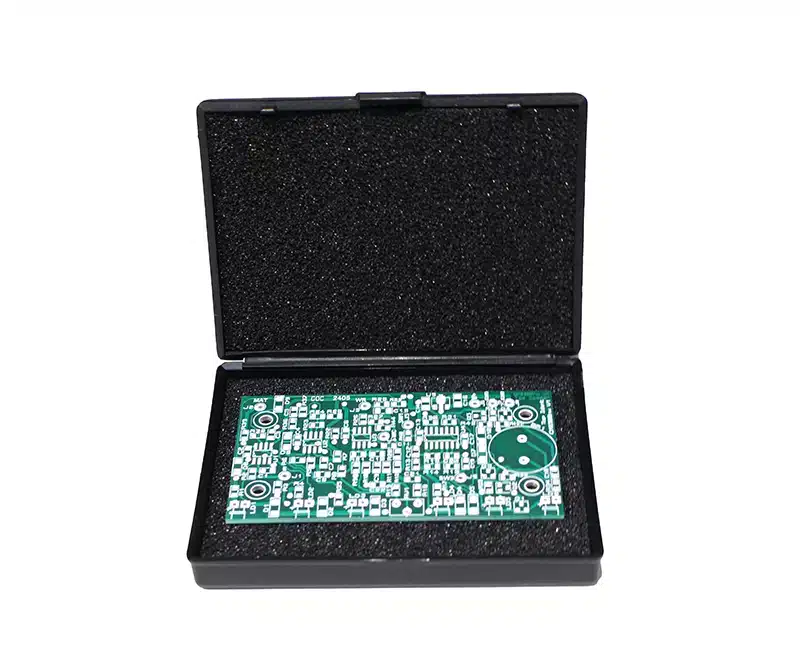

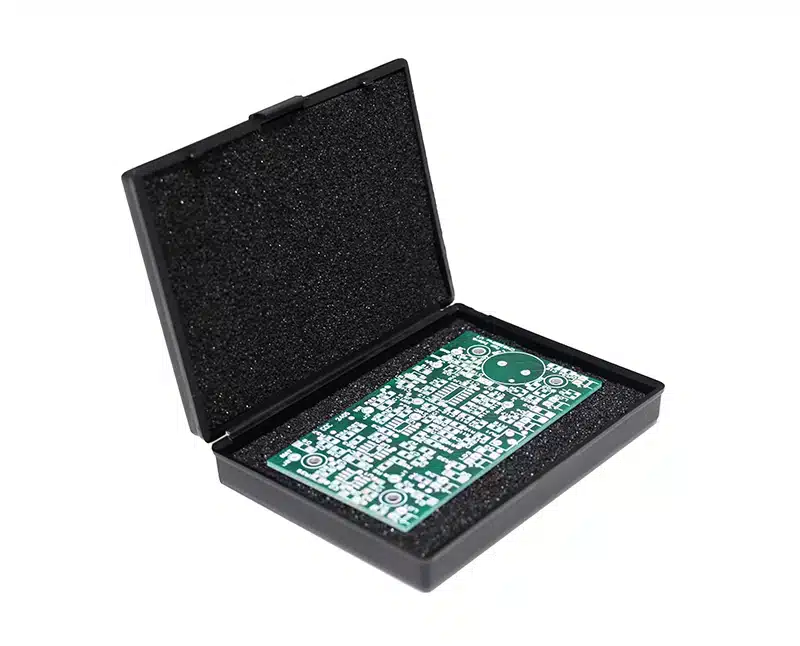

Our range of component boxes are manufactured from a tough, conductive polypropylene material. These are ideal for the safe storage and transport of small static sensitive electronic components and assemblies. Conductive component boxes provide exceptional static and physical protection for ESD sensitive items. They are designed with a latch that is cleverly integrated into the contours of the box and provide a cost-effective method of protecting your ESD sensitive devices. As well as minimising damage and the associated costs, they are durable and cost effective. They can be supplied empty or with any combination of high/low-density conductive foam. If you would like help with selecting the right foam, please contact us and we can discuss options with you.

Please note: SBFB and SBFBL options have a lead time of 3-5 days.

Product Features:

  • Lightweight, durable, conductive component boxes.
  • Manufactured from a conductive polypropylene for ESD protection.
  • Contemporary, modern design.
  • Sturdy yet easy to use catches allows for quick and efficient operation.
  • Cost-effective way to store and transport your ESD sensitive assemblies.

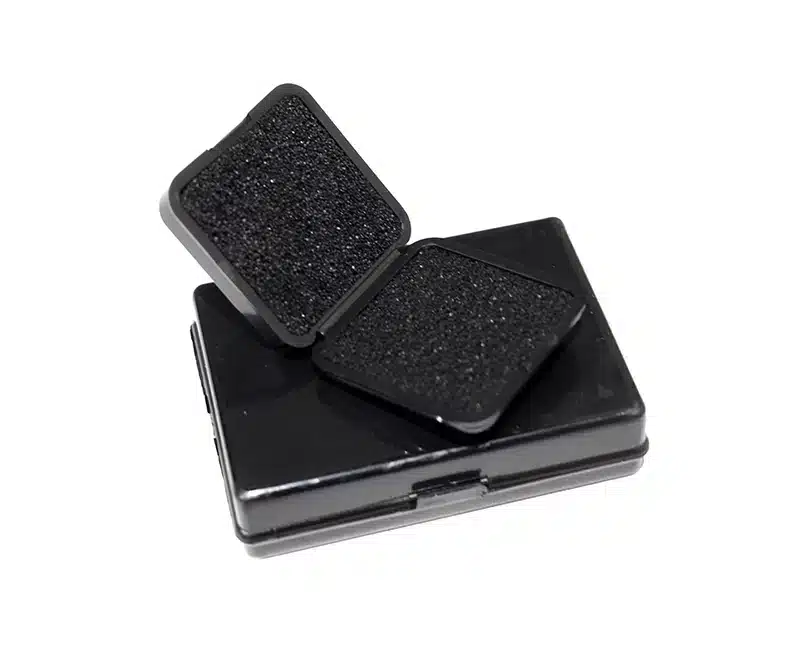

  • Supplied empty or with any combination of high/low-density conductive foam.
  • Conductive component boxes comply with IEC-61340-5-1 International Standard.
  • Standard colour: Black.

Specification:

  • Tensile Strength: 40 MPa (ASTM D-1238)
  • Elongation at Break: 5% (ASTMD-638)
  • Modulus of Elasticity: 4600 MPs (ASTM D-790)
  • Impact Strength Charpy 23°C: 9 kj/m^2
  • Impact Strength Charpy -20°C: 7 kj/m^2
  • Impact Strength Charpy Notched 23°C: 2 kj/m^2
  • Impact Strength Charpy Notched -20°C: 2 kj/m^2
  • Volume Resistivity: <10^3
  • Surface Resistivity: <10^4
  • Shrinkage: 0.7- 1.0%
  • Hardness Shore A/D: 99/81

Key Benefits:

Our range of conductive component boxes are a durable yet cost-effective way to store and transport static-sensitive components and devices. Each box is designed with a sturdy, easy-to-use latch and hinge which helps give a smooth operation, benefiting the end-user. This also gives a premium feel to the product.

Anti-static component boxes are a great solution for transporting and storing your static sensitive assemblies, whilst providing an effective protection barrier against ESD. There are many benefits of using this product for your own business and end-users.

Conductive component boxes can lower costs in a number of ways. These anti-static conductive boxes’ durable design and tough material ensures increased longevity which lowers life-time costs of each box. With its cleverly integrated latch and hinge, it offers an enhanced life-span since the catch can withstand many amounts of usage without breaking.

Improve the efficiency of your operations

  • Sturdy yet easy to use catches allows for quick and efficient operation.
  • Supplied empty or with any combination of high/low-density conductive foam.
  • Great way to store or transport your small static sensitive components and assemblies.

Standards and Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 / EN-61340-5-1 compliant bondline RoHS compliant
CE Icon WEB-min-alt CE approved bondline REACH compliant

Browse our full range of ESD Storage and Handling Products from Bondline.

Additional information

Weight N/A
Select a product:

SB1 – 40 x 40 x 13mm Deep – Box Only (NO FOAM), SB1FB – 40 x 40 x 13mm Deep – Box With 6mm High Density Foam In Base, SB1FBL – 40 x 40 x 13mm Deep – Box With 6mm High Density Foam In Base and 6mm Low Density Foam In Lid, SB2 – 78 x 52 x 18mm Deep – Box Only (NO FOAM), SB2FB – 74 x 52 x 18mm Deep – Boxes With 6mm High Density Foam In Base, SB2FBL – 74 x 52 x 18mm Deep – Box With 6mm High Density Foam In Base And 6mm Low Density Foam In Lid, SB3 – 110 x 83 x 17mm Deep – Box Only (NO FOAM), SB3FB – 110 x 83 x 17mm Deep – Box With 6mm High Density Foam In Base, SB3FBL – 110 x 83 x 17mm Deep – Box With 6mm High Density Foam In Base And 6mm Low Density Foam In Lid, SB5 – 228 x 128 x 30mm Deep – Box Only (NO FOAM), SB5FB – 228 x 128 x 30mm Deep – Box With 6mm High Density Foam In Base, SB5FBL – 228 x 128 x 30mm Deep – Box With 6mm High Density Foam In Base And 6mm Low Density Foam In Lid, SB6 – 90 x 65 x 17mm Deep – Box Only (NO FOAM), SB6FB – 90 x 65 x 17mm Deep – Box With 6mm High Density Foam In Base, SB6FBL – 90 x 65 x 17mm Deep – Box With 6mm High Density Foam In Base And 6mm Low Density Foam In Lid

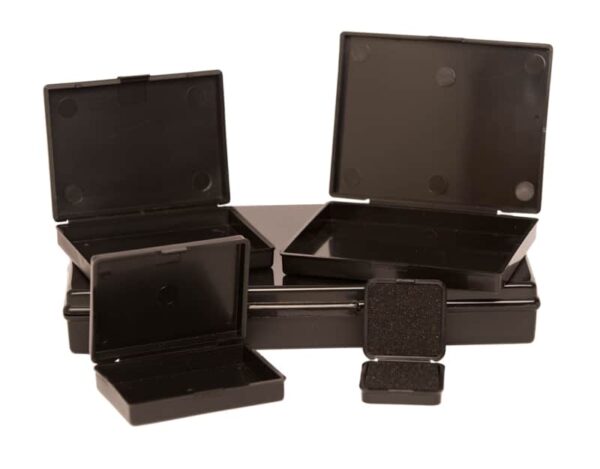

Size Options

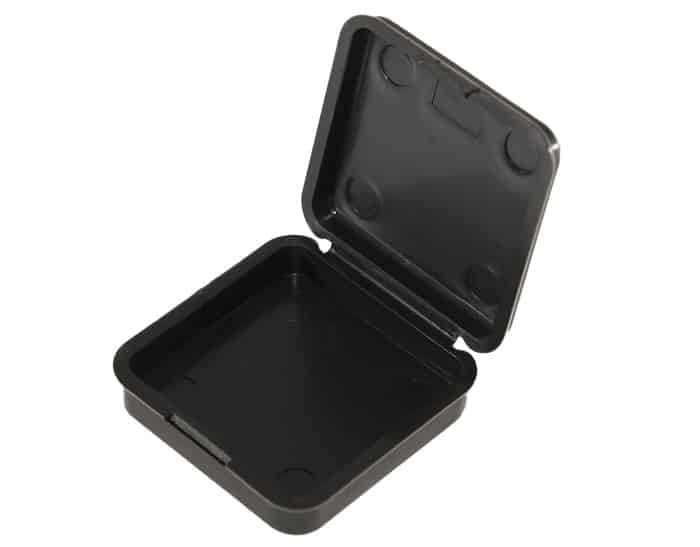

  • SB1 – 40x 40 x 13mm
  • SB2 – 74 x 52 x 18mm
  • SB3 – 110 x 83 x 17mm

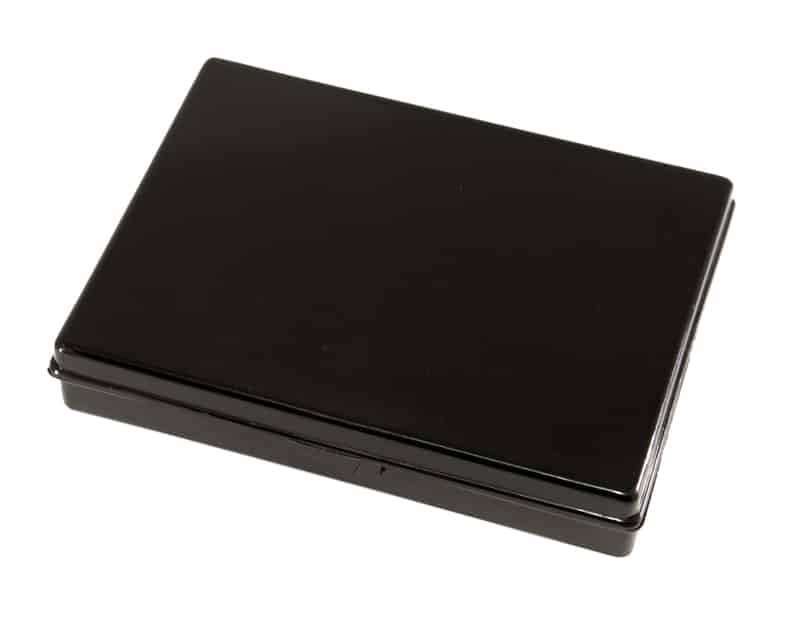

  • SB5 – 228 x 128 x 30mm

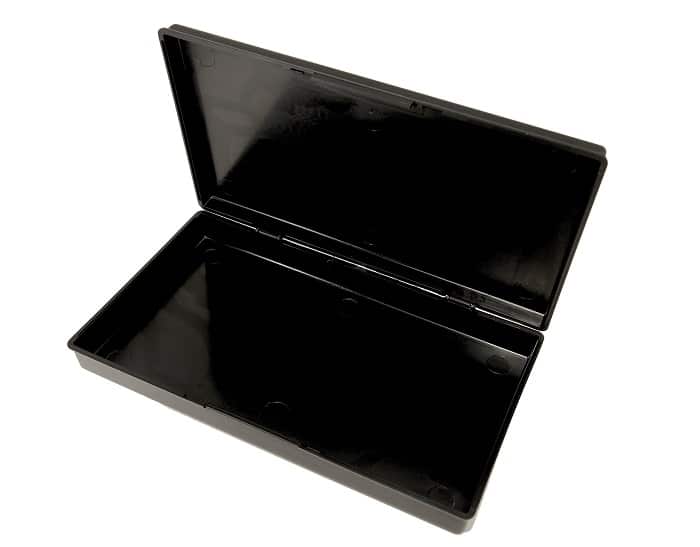

  • SB6 – 90 x 65 x 17mm

Technical Datasheet

Conductive Component Boxes: Technical Datasheet

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.
