ESD Heel Grounder

Single, elasticated, adjustable, ESD heel grounder with a hook and loop strap for quick and easy fastening. (D ring). Very hard-wearing and durable. Incorporates a 1 meg-ohm safety resistor. Custom configurations available.

£2.25 excl. VAT

Description

ESD heel grounder from Bondline is hard-wearing and very durable. They are designed with a single elasticated heel strap with a hook and loop strap for quick and easy adjustment (D-ring). The heel grounder has an elasticated back for extra comfort. Provides continuous ESD protection when used in conjunction with grounded ESD flooring or matting. Each heel strap incorporates a 1 meg ohm safety resistor as standard.

All grounding products are manufactured to the highest quality to ensure high comfort and long life. Heel straps should be worn on both feet for effective static dissipation to ground. We recommend testing the heel straps before every use with a CWST3 footwear test station.

ESD Heel Grounder Features:

  • Construction: Constructed using a strip of two-layered rubber sheet, insulative white and conductive black, attached to 1” elastic garter forming heel cup with one meg ohm metal film resistor joined in series with the conductive tab, assembled with D – ring and hook and loop tape for adjustable feature.
  • Black rubber surface conductivity: 8 x 10^(4) ohms.
  • White rubber surface conductivity: 1 x 10^(12) ohms.
  • Metal film resistor: 1 meg ohm + 20%.
  • Conductive tab: 160 ohms / inch (max.)

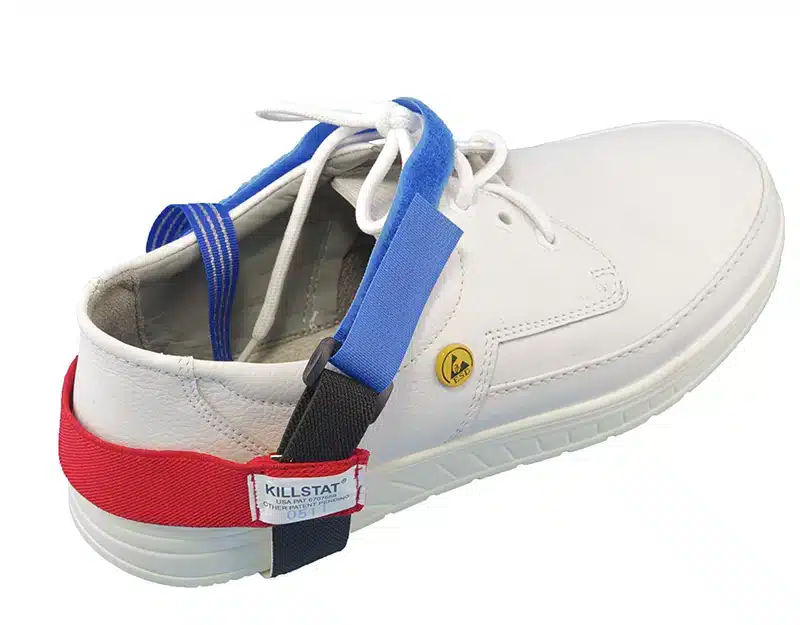

  • Markings: With date code (Killstat).
  • Plastic parts: Made of antistatic nylon material.
  • Colour: Black, blue and red elastic strips and royal blue conductive tab with silver yarn.
  • Elastic garter and hook and loop tape’s colours are available upon request.
  • Very hard-wearing and durable.
  • RoHS and REACH compliant.
  • CE approved.

HS5 Dimensions:

  • Heel ground length: 95 + 10mm
  • Garter width: 25-26mm
  • Rubber width: 25 + 1mm
  • Conductive tab length: 430 + 10mm
  • Tab width: 12-13mm
  • Hook and loop tape assembly total length: 280 +10mm
  • Hook/loop width: 19-20mm
  • Garter length: 35 + 10mm
  • Garter width: 19-20mm

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

View our full range of ESD heel strap products.

Additional information

Weight N/A
Select a product:

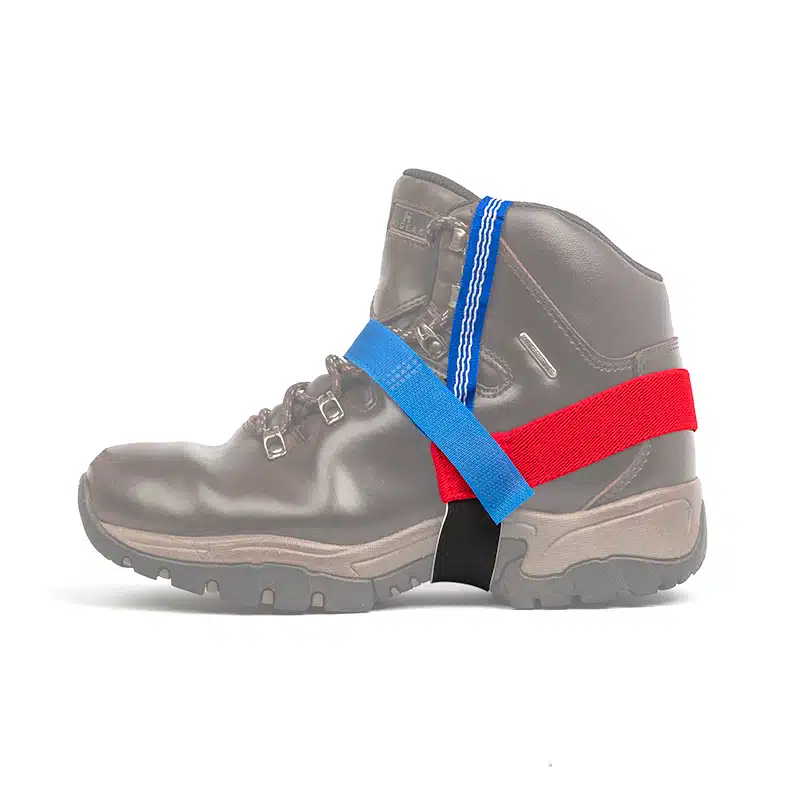

HS5 – Adjustable Heel Grounder – Hook & Loop Fastening (D-Ring)
