ESD Heel Straps

Description

ESD Heel Straps – Reliable Foot Grounding for EPA‑Safe Workspaces

Bondline’s premium ESD Heel Straps provide a dependable, cost‑effective way to ground mobile personnel within an ESD Protected Area (EPA). Designed for comfort, durability, and consistent performance, these heel straps ensure safe dissipation of static electricity when used with grounded ESD flooring or matting, helping to protect static-sensitive electronic components from electrostatic damage. All heel straps are RoHS, REACH, and IEC 61340‑5‑1 compliant.

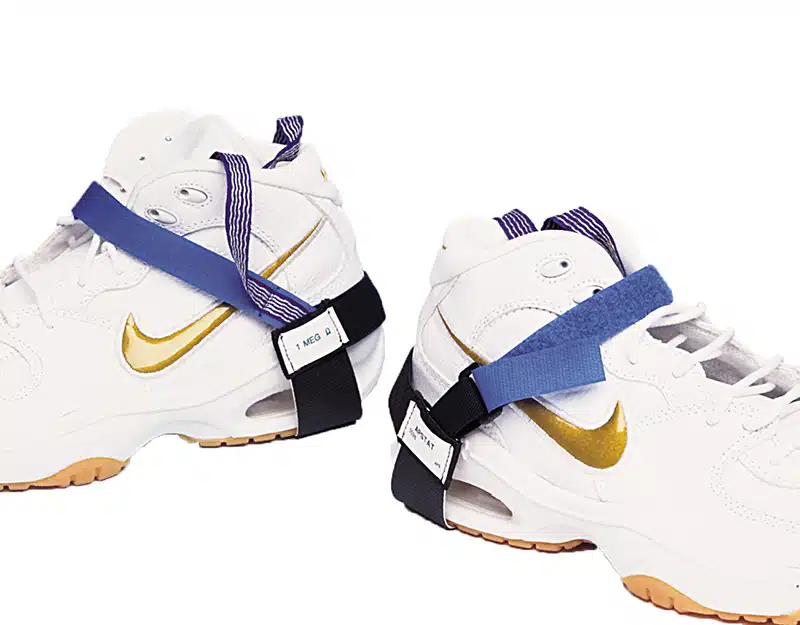

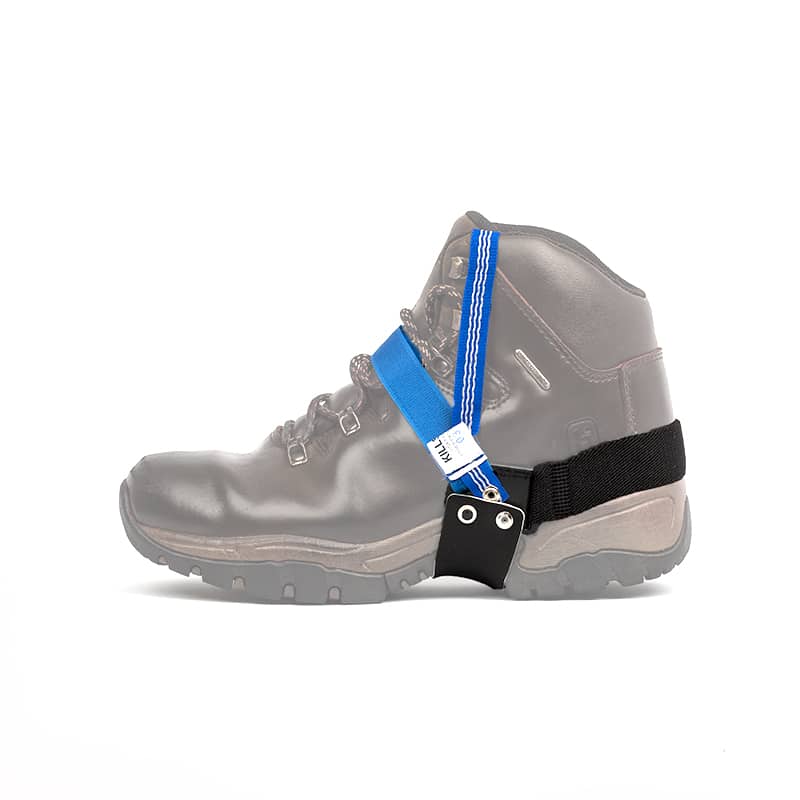

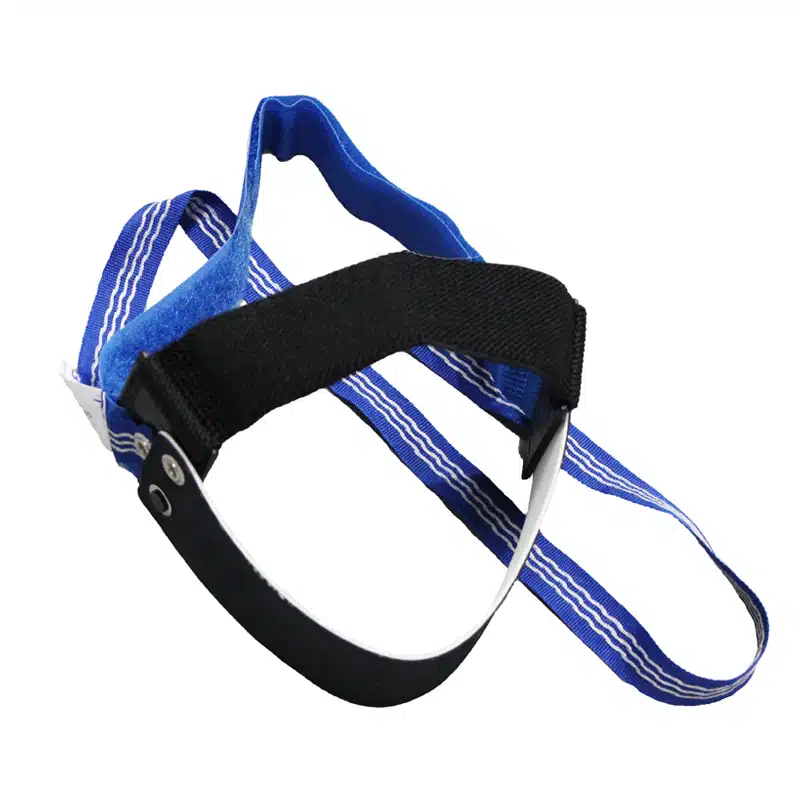

Our premium ESD heel straps are quick and easy to use and can be adjusted with the hook and loop fastener (D-ring). The heel strap is black conductive on the outside and white on the inside to avoid any shoe marking. Re-usable and designed to be long-lasting. ESD heel straps are available in standard and extra large sizes. The extra large heel strap has a plastic connector. All ESD heel straps incorporate a 1 Meg Ohm safety resistor. Hook loop tape’s colours are available on request.

All grounding products are manufactured to the highest quality to ensure high comfort and long life. Heel straps should be worn on both feet for effective static dissipation to ground. Heel straps must be regularly tested with a footwear test station.

Key Features of ESD Heel Straps:

• Premium, Non‑Marking Design: Bondline’s heel straps are made from soft, two‑layer rubber that provides excellent contact with ESD flooring without leaving marks.
• Built‑In 1 MΩ Safety Resistor: Each strap incorporates a 1 megohm resistor for operator safety and controlled static discharge.
• Adjustable & Easy to Fit: Quick hook-and-loop fastening (D-ring). Secure, comfortable fit around most footwear. Designed for long-term, repeated use. Available in standard and XL sizes.
• Consistent Grounding Performance: Heel straps should be worn on both feet to maintain continuous contact with grounded flooring and ensure reliable ESD protection.
• Available In Two Sizes: Select from standard or extra large sizes. Extra large size has a plastic connector.
• ESD Compliance: Compliant to the IEC 61340-5-1 International Standard.
• Regulations Compliance: CE approved and complies with RoHS and REACH regulations.

Specification:

• Colour: Available in black/ white rubber, black elastic garter, royal blue conductive tab with silver yarn, and day-glow yellow hook and loop tape.
• Black rubber surface conductivity: 8 x 10^(4) ohms.
• White rubber surface conductivity: 1 x 10^(12) ohms.
• Metal film resistor conductivity: 1 meg ohm + 20%.
• Conductive tab conductivity: 160 ohms/inch (max).
• Plastic parts: Made of antistatic nylon material.
• Markings: With Killstat logo and date code.

HS2 (Standard Size) Dimensions:

• Cutting length: rubber– 137 + 2mm, rubber width – 35 ~ 1mm
• Cutting length: garter – 80 + 2mm, garter width – 19 ~ 20mm
• Cutting length: tab – 600 + 2mm, tab width – 12 ~ 13mm
• Cutting length: hook tape – 133 + 2mm
• Cutting length: loop tape 157 + 2mm, loop width – 19 ~ 20mm

HS2XL (Extra Large) Dimensions:

• Cutting length: garter– 130 + 2mm, garter width – 25 _~ 26mm
• Cutting length: rubber – 147 + 2mm, rubber width – 35 ~ 1mm
• Cutting length: tab – 432 + 2mm, tab width – 12 ~ 13mm
• Cutting length: hook tape – 152 + 2mm
• Cutting length: loop tape – 229 + 2mm, hook and loop width – 19 ~ 20mm

Where To Use ESD Heel Straps:

• Electronics assembly
• Inspection and testing areas
• Cleanrooms
• Repair and rework stations
• Warehousing or areas where ESD shoes are not practical

Why Choose Bondline Heel Straps?

• Manufactured to high comfort and long‑life standards
• Fully compliant with IEC 61340‑5‑1 ESD standard
• Reliable grounding when used with ESD flooring
• Cost‑effective alternative to ESD shoes
• Suitable for all EPA‑compliant facilities

ESD Standards & Regulations Compliance:

	IEC-61340-5-1		CE approved
	RoHS compliant		REACH compliant

Browse Our ESD Heel Straps Range

Explore Bondline’s full range of ESD heel straps designed for safe, reliable foot grounding in EPA environments. From standard heel grounders to toe grounders and disposable heel straps, you’ll find the right solution for every workspace.
