Description

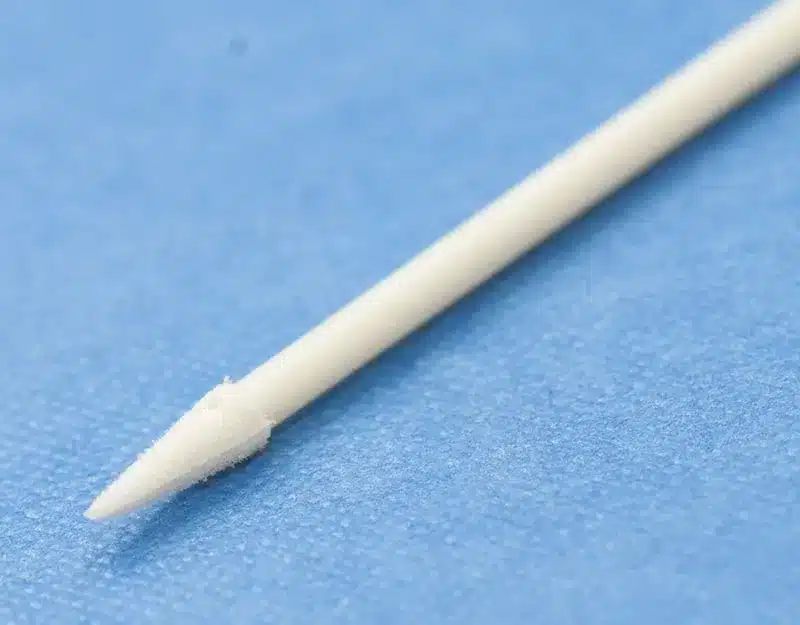

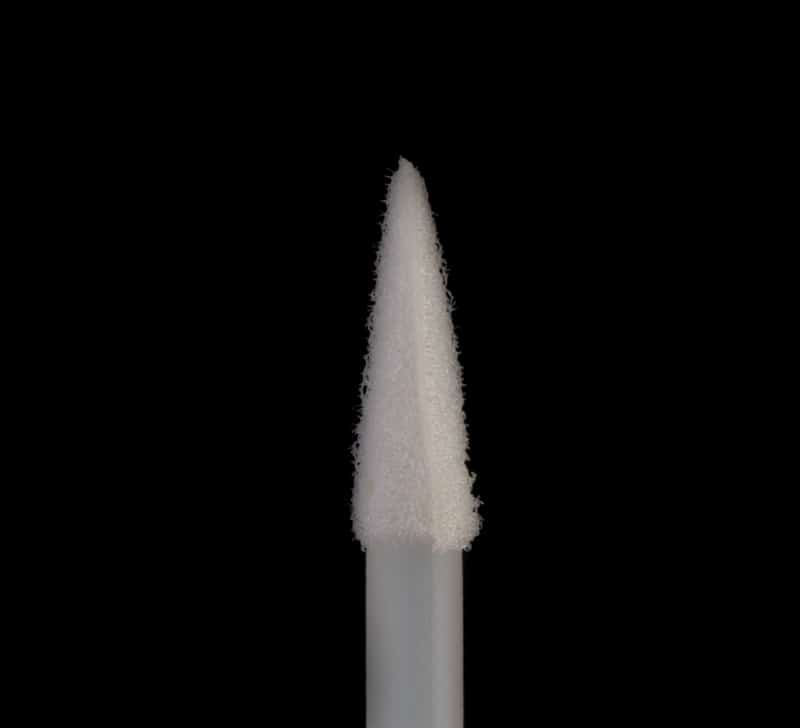

Sharp tip ESD swab is designed to easily remove particle and residue, with no abrasion.The smooth pointed foam tip is thermally bonded to the handle, eliminating the use of contaminating adhesives. It is an excellent swab for cleaning small slotted and grooved areas. The universal ESD swab has a compact mini compressed foam head which possesses firmness and a pointed top. It features an ESD-safe, rigid and compact handle made from a patented inherently polymer to provide clean permanent protections without contributing particulate contaminates to the cleanroom. The swabs are free from silicone, amides and DOP. They have very low particle generation, fibres, ion content and extractables. Designed for general purpose cleaning, ESD Foam Swabs are the ideal swabs to use in cleaning static sensitive components, helping to minimise risk of electrostatic damage.
Key Features:
- Colour: White
- Tip Material: Polyurethane foam
- 100 swabs / pack
- Tip Width: 3.3mm
- Tip Thickness: 3mm
- Tip Length: 11mm
- Stick Length: 75mm
- Total Swab Length: 75.5mm
- Allows for the careful removal of contaminations
- Good chemical resistance
- Free from silicone, amides and DOP
- Thermally bonded foam head
- Minimises risk of electrostatic damage
- Low in particles, fibres, ion content and extractables
- ESD-safe handle made from a patented inherently polymer
- Compliant to IEC 61340-5-1 International Standard
- High solvent capacity, compact and non-abrasive tip
- Compatible with most common solvents
- Design: Smooth pointed head with compact handle
Specification:
- Surface Resistivity of Handle: 1.0 x 10^(9)Ω
- Volume Resistance of Handle: 1.0 x 10^(8)Ω
- Non-Volatile Residue (IPA mg/swab): 0.035
- Ions (µg/swab):
- Chloride 0.044
- Sulfate: 0.022
- Nitrate: ND*
- Phosphate: ND*
- Fluoride: ND*
- Potassium: 0.0038
- Calcium: 0.024
- Sodium: 0.081
- Magnesium: 0.0043
ND* = below the detection limit of the equipment
Applications:
- Cleaning small, slotted and hard to reach areas with solvents such as IPA
- Micro-mechanical cleaning
- Cleaning of static sensitive electronic components
- Applying lubricants and other liquids
- Removing flux residues and excess materials
- For general purpose cleaning
- Cleanroom applications
Meets the Following ESD Standards & Regulations:
 |
IEC-61340-5-1 |  |
CE approved |
 |
RoHS compliant |  |
REACH compliant |
