Description

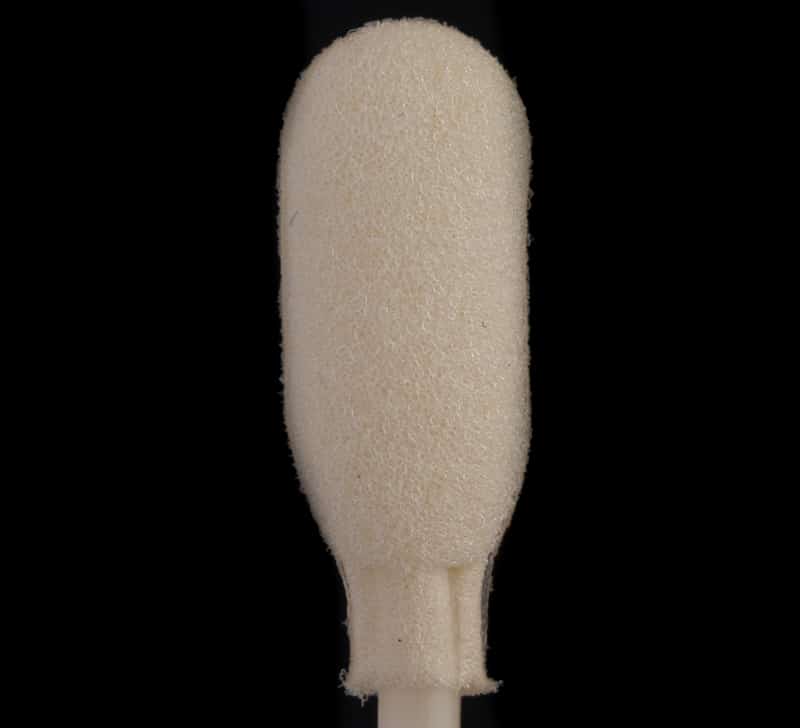

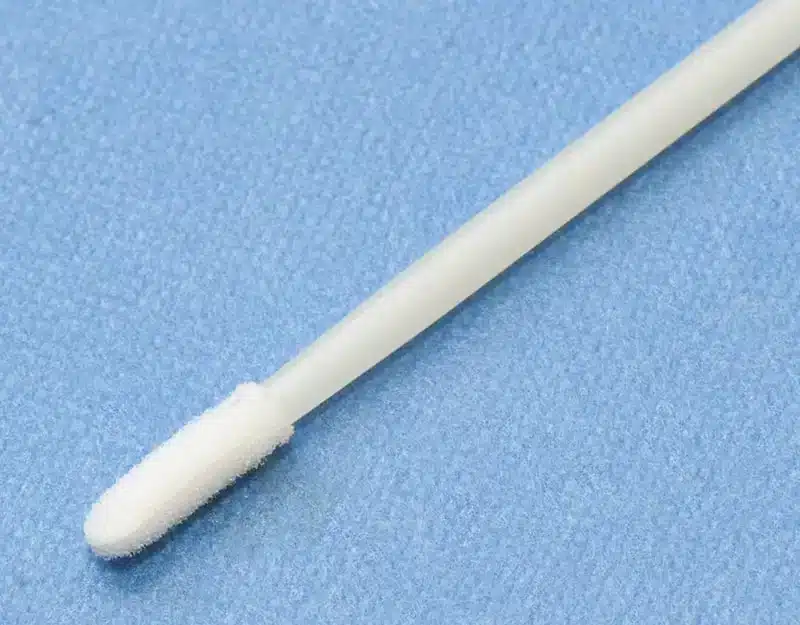

Paddle tip ESD foam swab is a general purpose swab specially made for cleaning hard-to-reach areas on static sensitive electronic components. Its flexible paddle tip is excellent for rigorous cleaning applications and removing particles and residue with ease. The foam paddle tip is thermally bonded to the handle, eliminating the use of contaminating adhesives. The ESD-safe, rigid and compact handle is made from a patented inherently polymer to provide clean permanent protections without contributing particulate contaminates to the cleanroom. Paddle tip ESD foam swab is free from silicone, amides and DOP. They have very low particle generation, fibres, ions and extractables. These universal ESD swabs help to minimise the risk of electrostatic damage in electrostatic protected areas.
Key Features:
- Colour: White
- Tip Material: Polyurethane foam
- 100 swabs / pack
- Tip Width: 6.2mm
- Tip Thickness: 5mm
- Stick Length: 161mm
- Total Swab Length: 163mm
- Good chemical resistance
- Free from silicone, amides and DOP
- Thermally bonded foam head
- Minimises risk of electrostatic damage
- Low in particles, fibres, ions and extractables
- ESD-safe handle made from a patented inherently polymer
- Compliant to IEC 61340-5-1 International Standard
- High solvent capacity, compact and non-abrasive tip
- Soft, paddle foam tip allows for careful removal of contaminations
- Compatible with most common solvents
Specification:
- Surface Resistivity of Handle: 1.0 x 10^(9)Ω
- Volume Resistance of Handle: 1.0 x 10^(8)Ω
- Non-Volatile Residue (IPA mg/swab): 0.035
- Ions (µg/swab):
- Chloride 0.044
- Sulfate: 0.022
- Nitrate: ND*
- Phosphate: ND*
- Fluoride: ND*
- Potassium: 0.0038
- Calcium: 0.024
- Sodium: 0.081
- Magnesium: 0.0043
ND* = below the detection limit of the equipment
Applications:
- Cleaning small, slotted and hard-to-reach areas with solvents such as IPA
- Cleaning of static sensitive electronic components
- Applying lubricants and other liquids
- Removing flux residues and excess materials
- For general purpose cleaning
- Cleanroom applications
Meets the Following ESD Standards & Regulations:
 |
IEC-61340-5-1 |  |
CE approved |
 |
RoHS compliant |  |
REACH compliant |
To enquire about this product, please contact us on 01793 511000 or sales@bondline.co.uk.
See our full range of ESD swabs.
