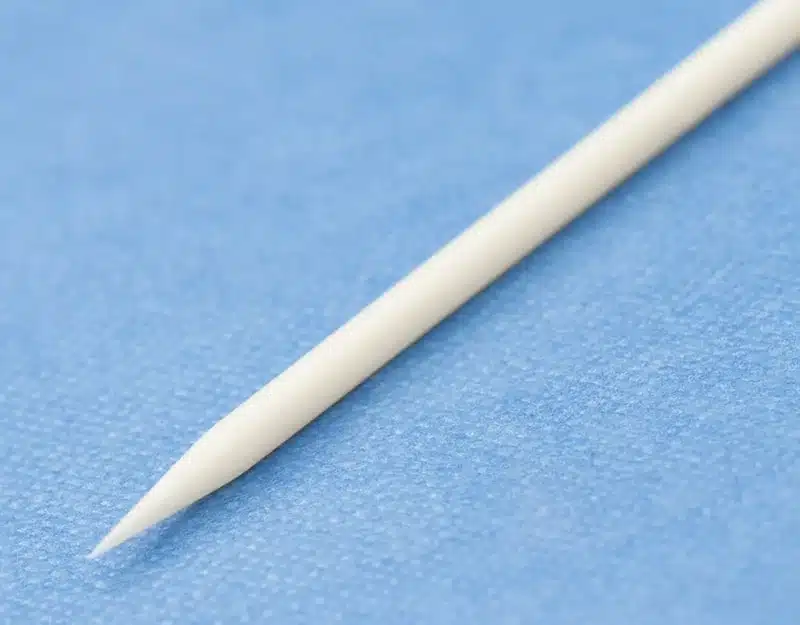

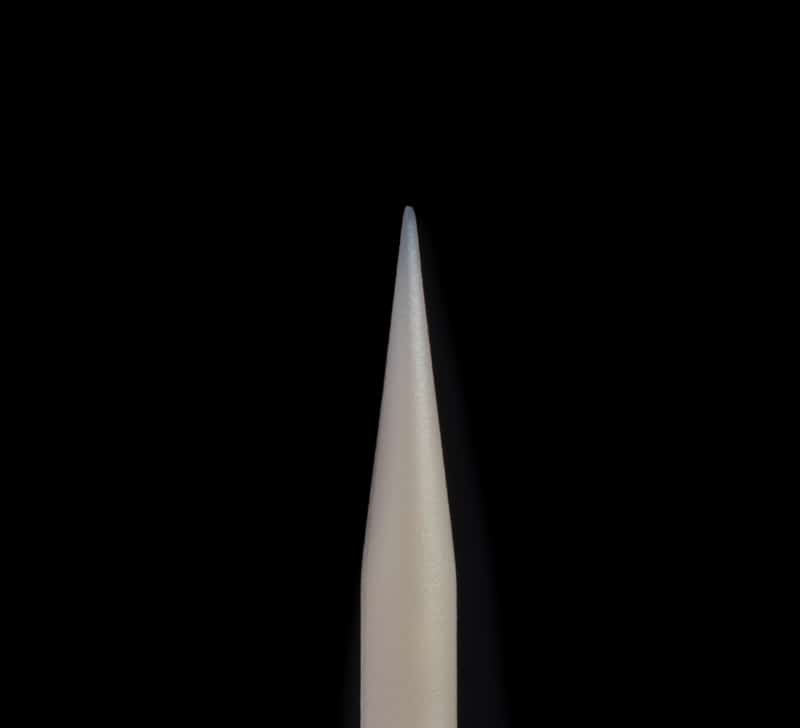

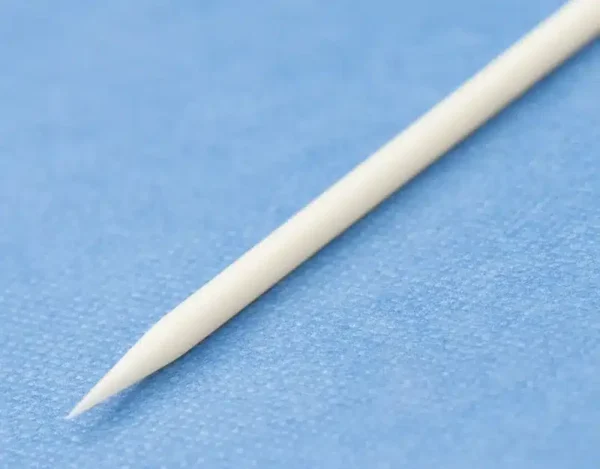

Description
A sharp ESD swab stick designed for the careful and precise removal of particles and residue from static-sensitive components. It is an excellent swab for cleaning small slotted and confined areas. This swab features a compact and firm handle with a round internal core providing. The handle is made from a patented inherently polymer to provide clean permanent protections without contributing particulate contaminates to the cleanroom. Our full range of universal ESD swabs are free from silicone, amides and DOP. They have very low particle generation, fibres, ion content and extractables. Designed for the highest level of contamination control in critical processing applications.
Key Features:
- Colour: White
- 100 swabs / pack
- Total Swab Length: 74mm
- Tip Length: 8mm
- Handle Thickness: 2.4mm
- Handle Length: 66mm
- Sharp tip allows for the careful removal of particles and residue from hard-to-get-to areas
- Non-abrasive with no contaminating adhesives
- Free from silicone, amides and DOP
- Minimises risk of electrostatic damage
- Low in particles, fibres, ion content and extractables
- ESD safe handle made from a patented inherently polymer
- Compliant to IEC 61340-5-1 International Standard
Specification:
- Surface Resistivity of Handle: 1.0 x 10^(9)Ω
- Volume Resistance of Handle: 1.0 x 10^(8)Ω
- Non-Volatile Residue (IPA mg/swab): 0.035
- Ions (µg/swab):
- Chloride 0.044
- Sulfate: 0.022
- Nitrate: ND*
- Phosphate: ND*
- Fluoride: ND*
- Potassium: 0.0038
- Calcium: 0.024
- Sodium: 0.081
- Magnesium: 0.0043
ND* = below the detection limit of the equipment
Applications:
- Cleaning of static sensitive electronic components and devices
- Cleaning small and confined areas
- Removing flux residues and excess materials
- Static-sensitive applications
- For general purpose cleaning
- Cleanroom applications
Meets the Following ESD Standards & Regulations:
 |
IEC-61340-5-1 |  |
CE approved |
 |
RoHS compliant |  |
REACH compliant |
To enquire about this product, please contact us on 01793 511000 or sales@bondline.co.uk.
See our full range of ESD swabs.
