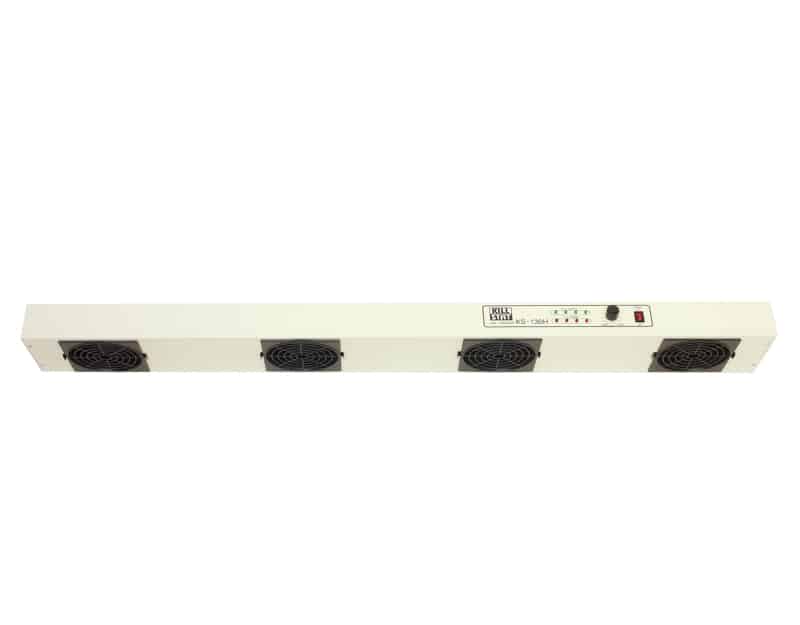

Overhead Ioniser 4-Fan

Overhead ioniser 4-fan is light, quiet and high performing; ensuring a static-free work area. Ideal for large workstations. The four fans are independent of each other with individual controls and circuitry. Very easy to clean and maintain due to clip-on fan covers. Auto ion balance 0±5V. Size: 1200 x 145 x 65mm. Full instruction manual supplied. Professional calibration service available on request.

an icon of a lightning bolt

Product Code: ove/ion/4

Clear

£850.00

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

A highly efficient four-fan overhead ioniser for ionisation of a large workstation. The overhead ioniser 4-fan is light, quiet, high performing, ensuring a static-free work area. Each of the four fans operate independently with individual controls and circuity. Simple operation. The clip-on fan covers allow for easy cleaning and maintenance. The ioniser can be suspended above the workstation either from the bench framework or the ceiling using the supplied two hooks. The ioniser has a built-in auto-ion balance feature of 0±5V with an out-of-balance alarm. This four-fan ioniser measures 1200 x 145 x 65mm and weighs 6.5kg. All ionisers are CE approved and compliant to the IEC 61340-5-1 International Standard. The ioniser is supplied with a full instruction manual and a mains power lead, ready for immediate use.

Key Features of Overhead Ioniser 4-Fan:

  • Power Supply: AC100~240V 50/60 Hz
  • Safety Performance: Equipped with ion output monitoring system
  • Capacity: 48VA
  • HV Output: AC2200V
  • Ion Balance: Auto ion balance, 0±5V
  • Air Volume: 5.2~13m^3/min
  • Ozone Density: Less than 0.007ppm
  • Allowable Humidity: 25~70%RH (no drops)
  • Allowable Temperature: 0~40 degrees Celsius
  • Weight: 6.5kg
  • Dimensions: 1200 x 145 x 65mm
  • Ideal for large workstations
  • The four fans are independent of each other with individual controls and circuitry
  • Very easy to clean and maintain due to clip-on fan covers
  • Light, quiet and high-performing
  • Compliant to the IEC 61340-5-1 International Standard
  • RoHS and REACH compliant
  • CE approved

Supplied with:

  • Mains power supply lead (European plug available on request)
  • 2 hooks
  • Full instruction manual

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

Ioniser Calibration

All ionisers should be calibrated once a year to check their efficiency. With over 35 years of experience, Bondline can offer a full professional calibration service traceable to national standards. A full dated certificate will be issued for each product upon completion. This is valid for 1 year. For more information on our calibration service, please contact us on +44 (0)1793 511000 or email sales@bondline.co.uk.

Looking for a smaller overhead ioniser? View our range of 3-fan overhead ionisers.

Additional information

Weight N/A
Select a product:

KS130H – Overhead Ionizer 4-Fan – 1.2m x 145mm x 65mm – (Includes Mains Power Supply Lead)

Technical Datasheet

Overhead Ioniser 4-Fan: Technical Datasheet

Instruction Manual

KS130H 4-Fan Overhead Ioniser: Instruction Manual
