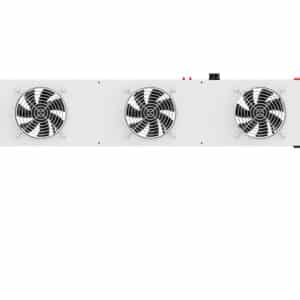

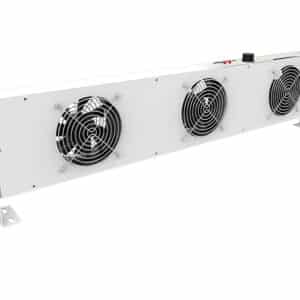

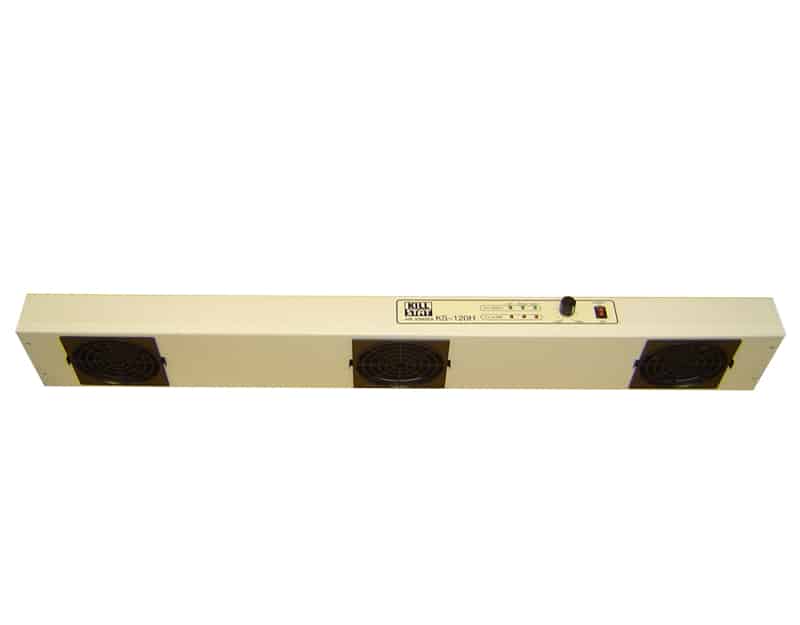

Overhead Ioniser 3-Fan

Our best-selling overhead ionizer 3-fan is light, quiet and high performing; ensuring a static-free work area. The three fans are independent of each other with individual controls and circuitry. It is very easy to clean and maintain due to clip-on fan covers. Auto ion balance +/-5V. Size: 1m x 145mm x 65mm. Full instruction manual supplied. Professional calibration service available on request.

an icon of a lightning bolt

Product Code: ove/ion/3



This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.


A light, quiet and high performing overhead ioniser which neutralises electrostatic charges on insulators and un-grounded conductors. Each of the three fans operate independently with individual controls and circuity. Simple operation. The clip-on fan covers allow for easy cleaning and maintenance. The ioniser can be suspended above the workstation either from the bench framework or the ceiling using the supplied two hooks. The ioniser unit has a built-in auto-balance feature with an out-of-balance alarm. The Overhead Ioniser 3-Fan measures 1000 x 145 x 65mm and weighs 5kg. All ionisers are CE approved and are supplied with a full instruction manual. The ioniser is supplied with a mains power lead, ready for immediate use.

Key Features of Overhead Ioniser 3-Fan:

  • Power Supply: AC100~240V 50/60 Hz
  • Safety Performance: Equipped with ion output monitoring system
  • Capacity: 36VA
  • HV Output: AC2200V
  • Ion Balance: Auto ion balance 0±5V
  • Air Volume: 3.9~9.76m^3/min
  • Ozone Density: Less than 0.007ppm
  • Allowable Humidity: 25~70%RH (no drops)
  • Allowable Temperature: 0~40 degrees Celsius
  • Dimensions: 1m x 145mm x 65mm
  • Weight: 5kg
  • The three fans are independent of each other with individual controls and circuitry
  • Light, quiet and high-performing
  • Very easy to clean and maintain due to clip-on fan covers
  • Compliant to the IEC 61340-5-1 International Standard
  • RoHS and REACH compliant
  • CE approved

Supplied with:

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

Ioniser Calibration

All ionisers should be calibrated once a year to check their efficiency. With over 35 years of experience, Bondline can offer a full professional calibration service traceable to national standards. A full dated certificate will be issued for each product upon completion. This is valid for 1 year. For more information on our calibration service, please contact us on +44 (0)1793 511000 or email sales@bondline.co.uk.

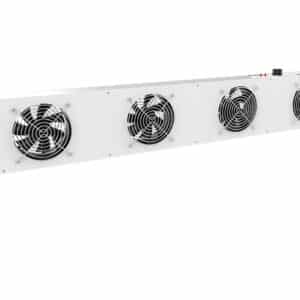

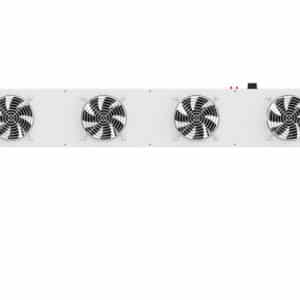

Looking for ionisation for large workstations? View our range of 4-fan overhead ionizers.

Additional information

Weight N/A
Select a product:

KS120H – Overhead Ionizer 3-Fan – (Incl. Mains Power Supply Lead)

Technical Datasheet

Overhead Ioniser 3-Fan: Technical Datasheet

Instruction Manual

Overhead Ioniser 3-Fan: Instruction Manual
