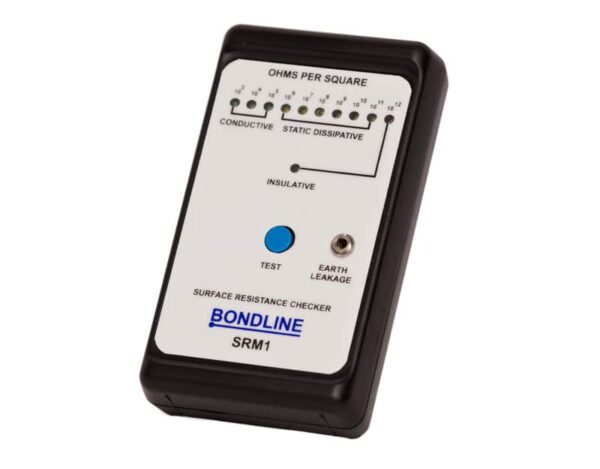

Surface Resistance Meter

This item has now been discontinued and replaced with Surface Resistivity Meter.

Portable instrument for measuring both surface resistivity and resistance to ground. (Using 10 / 100 volts). It is very easy to use and is supplied with required test leads and a 9V battery. (Includes carrying pouch).

£9,999.00 excl. VAT

Description

Surface Resistance Meter (SRM1) has now been discontinued and replaced with Surface Resistivity Meter (SRM100).

Custom logos/printing available on request. Each unit is supplied with 1 year calibration certificate. Manufactured with soft probes for maximum and consistent surface contact to give more accurate readings. The battery is very easy to change. All test instruments are manufactured to the very highest quality allowing qualification to council directives 89/336/EEC. All items are CE approved.

Key Features:

  • Portable instrument for measuring both surface resistivity and resistance to ground. (Using 10 / 100 volts).
  • Custom logos/printing available on request.
  • Each unit is supplied with 1 year calibration certificate.
  • Very easy to use.
  • supplied with required test leads and a 9V battery.
  • Includes carrying pouch.
  • Manufactured in the United Kingdom.
  • CE approved.
  • Battery is very easy to change.

Specification:

The first pocket resistivity meter, with specifications ranging from 103 Ohms per square to 1012 ½ decade. The meter can be supplied with a certificate of Calibration upon request.

The meter measures both surface resistivity and resistance to ground. To measure surface resistivity, simply place the meter on the surface of the material that requires measuring, and press the green test button. The meter will then light the appropriate LED from 103 – 1012 Ohms per square or insulative. To measure resistance to ground, repeat this process and insert the earth leakage lead in the earth socket attaching the croc clip to your ground point.

The meter uses correctly spaced parallel bars for sensing its measurements and operates with a 9 volt PP3 battery, giving over 40 hours of testing time. Calibration of the unit is recommended every 12 months, this can be arranged by contacting the Bondline Office.

To view our full range of ESD Test equipment, click here.

Additional information

Weight N/A
Select a product:

SRM1 – Surface Resistance Meter – (Incl. Carrying Pouch)

Technical Datasheet

SRM1: Technical Datasheet

Instruction Manual

SRM1: Instruction Manual
