Clear Anti-Static Tape

Clear non-static generating adhesive packaging tape. Ideal for sealing the conductive plastic bags that are commonly used for protecting static sensitive devices. Roll is 30 metres long with variable widths.

Special Offer
Quantity Discount Per Item Price
10+ £3.55 £3.19 £3.19
Quantity Discount Per Item Price
10+ £5.88 £4.98 £4.98

£2.95£5.88 excl. VAT

Description

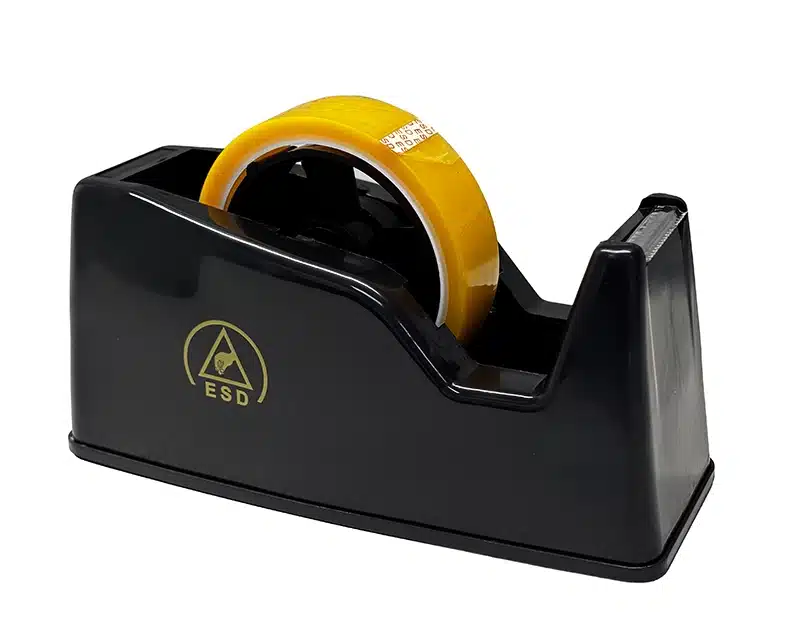

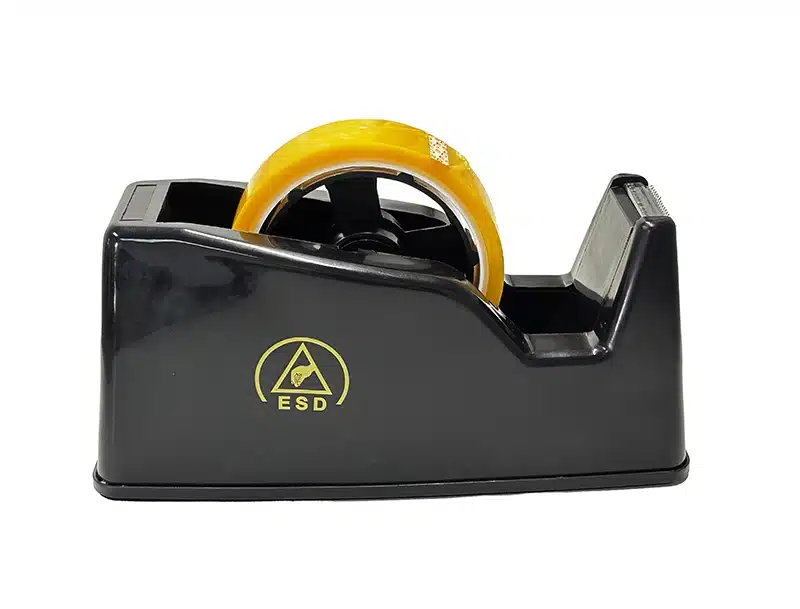

Non-static generating, clear anti-static tape for use in electrostatic protected areas. Available in widths 12mm, 18mm and 25mm. This tape is made with a natural fibre base and film coated with a rubber-based adhesive to give non-static generating properties. Both sides of the tape are ESD treated, upper side and adhesive side. Tapes are labelled with ESD symbol on the inner core to avoid use of non-ESD tape within EPAs. The tape is transparent on application and will not obscure printed text or images. Each roll is individually wrapped to provide protection from contamination which could in turn harm the product the tape is applied to. Use in conjunction with ESD Tape Dispenser.

Product Features:

  • For use in EPAs
  • 3 widths available: 12, 18 & 25mm
  • 30m of tape per roll
  • Individually wrapped
  • Ideal for sealing the conductive plastic bags
  • Made with a natural fibre base and film-coated with a rubber based adhesive

Specification:

  • Surface resistivity (upper and lower side): 1 x 10^(7)-^(9)Ω
  • Top layer material: Antistatic Acrylic PSA
  • Bottom layer material: Opp Film
  • Thickness of tape: 60 ±0.002mm

Application:

Ideal for sealing conductive plastic bags that are commonly used for protecting static sensitive components. The tape can be written on with a spirit-based marker pen, which removes easily and without leaving adhesive deposits. Excellent for temporary labelling of ESDs during processes such as inspection on quality control.

All non-ESD tapes should be replaced with Anti-Static Tapes to comply with EN-61340-5. The Electro Static Protected Area (EPA) should never have any electrostatic generating tapes.

Standards and Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 / EN-61340-5-1 compliant bondline RoHS compliant
CE Icon WEB-min-alt CE approved bondline REACH compliant

View our full range of ESD tape.

Additional information

Weight N/A
Select a product:

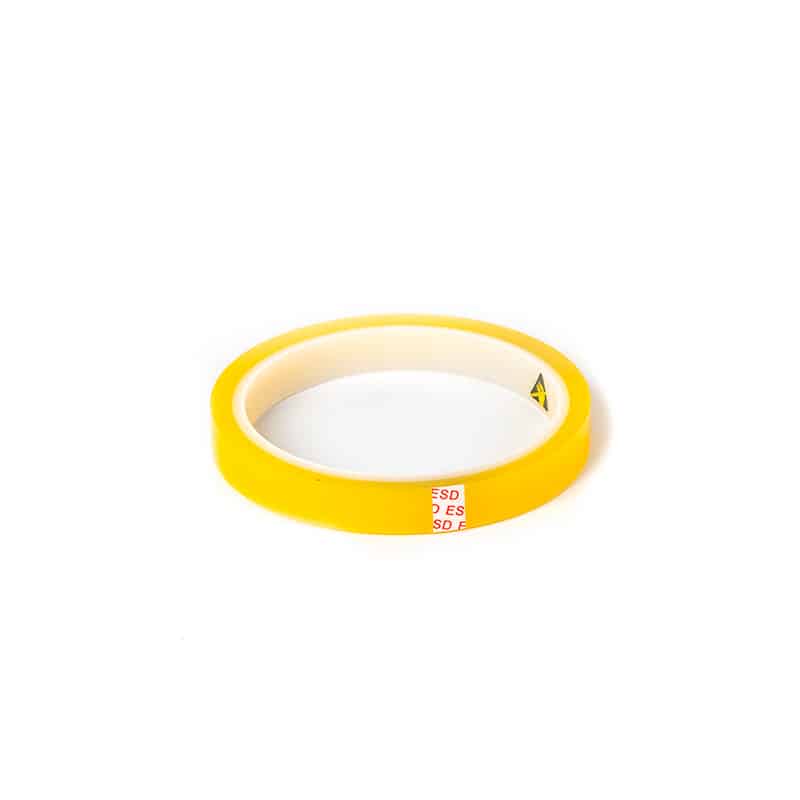

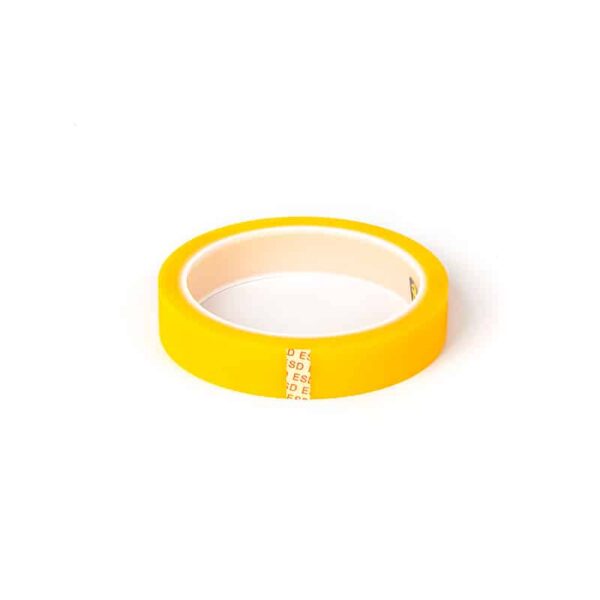

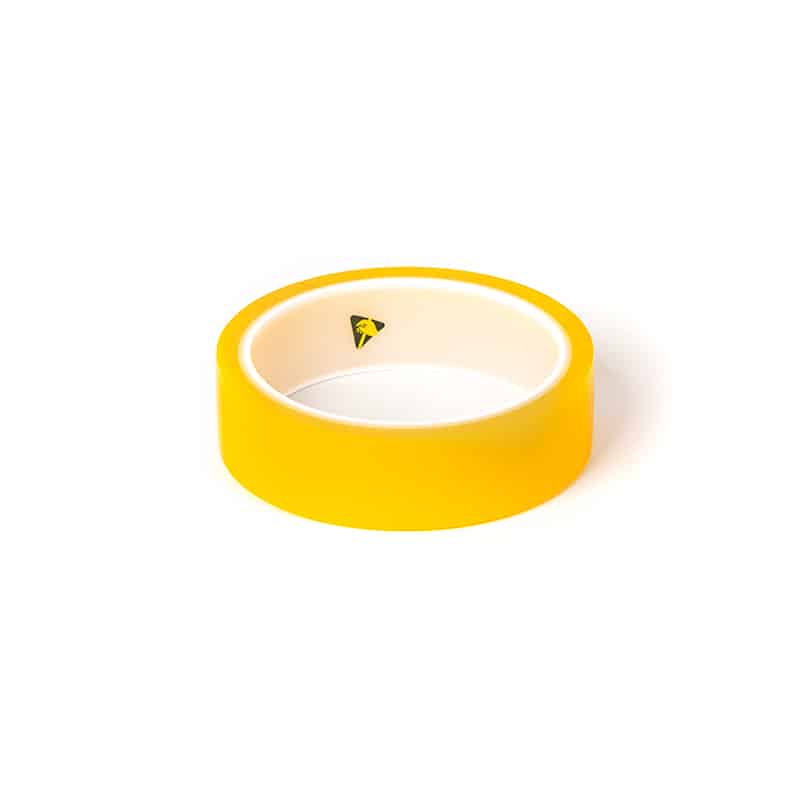

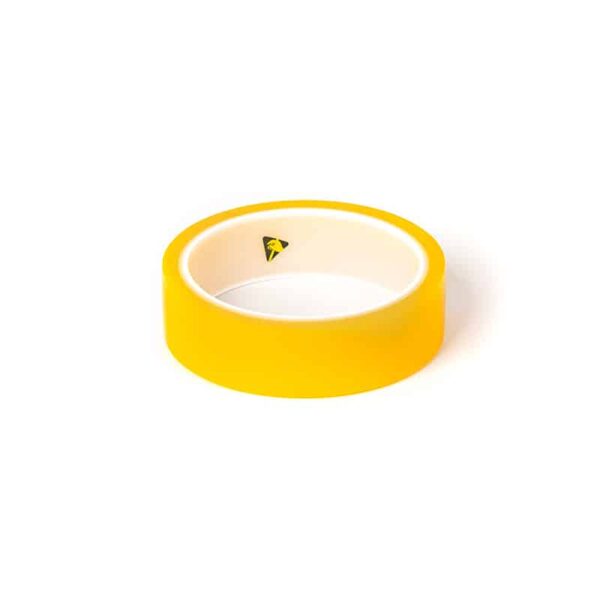

AS12 – Clear Anti-Static Tape – 12mm wide, CLEARANCE AS18 – Clear Anti-Static Tape – 18mm wide, AS25 – Clear Anti-Static Tape – 25mm wide

Application

  • Sealing ESD bags and other ESD packaging / containers.
  • Temporary labelling of ESDs (e.g. as might be required during inspection and quality control procedures).
  • General purpose ESD tape applications.
  • Secure (bundle) IC DIP tubes.
  • Use with ESD symbols for ESD awareness.
  • Holding work orders, instructions or notes in offices, ESD workstations, or for general purpose.
  • Packaging for container sealing, holding IC DIP tubes and static shielding bag closure.
  • Conformal coating or holding and sealing supplies in manufacturing.

Technical Datasheet

Antistatic Tape: Technical Datasheet
