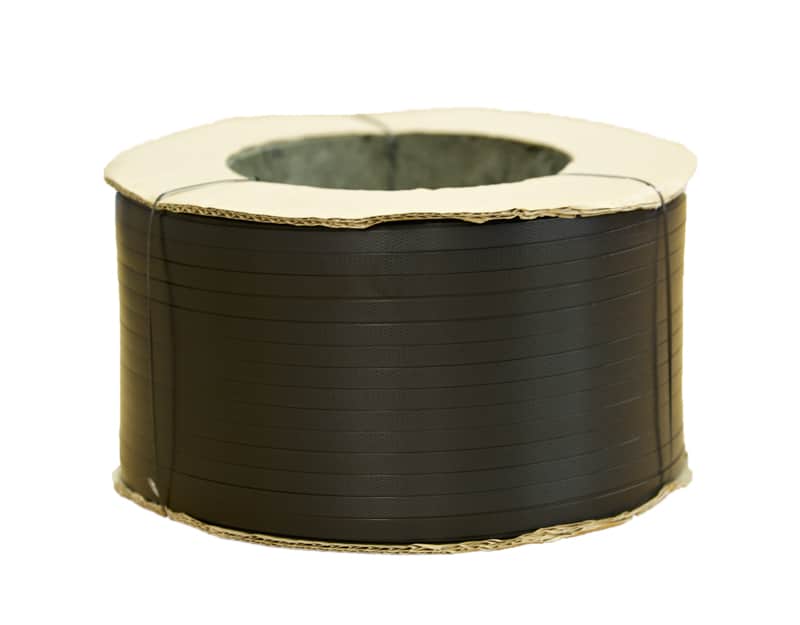

Conductive Strapping

Conductive Strapping is ideal for packing in ESD areas. It supports the packing of boxes and can be used for securing multiple packages together. Conforms to MIL-PRF-81705D, EIA541 and IEC 61340-5-1. Supplied in rolls of 12mm wide x 1500 metres long and 0.6mm thick.

£9,999.00 excl. VAT

Description

Conductive strapping is designed to assist the packing process in EPAs. This strapping supports the packing of boxes and can be used for securing multiple packages together. Conductive strapping is very durable and hard-wearing. Can be used in an Electrostatic Protected Area (EPA). Conforms to MIL-PRF-81705D EIA541. Supplied in rolls of 12mm wide x 1500 metres long and 0.6mm thick.

Conductive Strapping Features:

  • 12mm wide x 1500 metres long x 0.6mm thick
  • Provides effective support when packing multiple boxes
  • Safe to use in an Electrostatic Protected Area (EPA)
  • Conforms to MIL-PRF-81705D, EIA541, IEC-61340-5-1
  • RoHS and REACH compliant
  • CE approved

Technical Specification:

  • Material: Conductive PP (Polypropylene co – Polymer)
  • Density: 23°C – 1.05 / g/ml – ASTM D1505
  • Surface resistivity:  1 x 10^(7) to 1 x 10^(9) ohms / sq (after baking) (ESO/ESD S11.11)
  • Surface resistivity: 1 x 10^(4) to 1 x 10^(6) ohms/ sq (before baking) (EOS/ESD S11.11)
  • Decay test: As per Mil spec 81705B- Less than 2.0 seconds
  • Capacitance probe: <30 volts (MIL-PRF-81705D, EIA 541) To Dissipate 1KV
  • Standard width: 12mm +/- 1.00mm
  • Thickness: 0.60mm +/- 0.1mm
  • Size of plastic core: 200mm (I.D) x 190mm (h)
  • Tensile strength: >250KGS/CM^(2) – ASTM D638
  • Gross weight: Per roll 8.5 KGS +/- 1KG
  • Length per roll: 1500 meters
  • Standards: IEC 61340-5-1, MIL-PRF-81705D, EIA541.

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
ESD safe label - Bondline MIL-PRF-81705D bondline REACH compliant
ESD safe label - Bondline EIA541 bondline RoHS compliant

If you have any queries or need further assistance with regard to this product, please contact us and one of our Bondline team members will help you.

View our full range of ESD Packaging.

Additional information

Weight N/A
Select a product:

KSP0002 – Conductive Strapping

Technical Datasheet

Conductive Strapping: Technical Datasheet

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.
