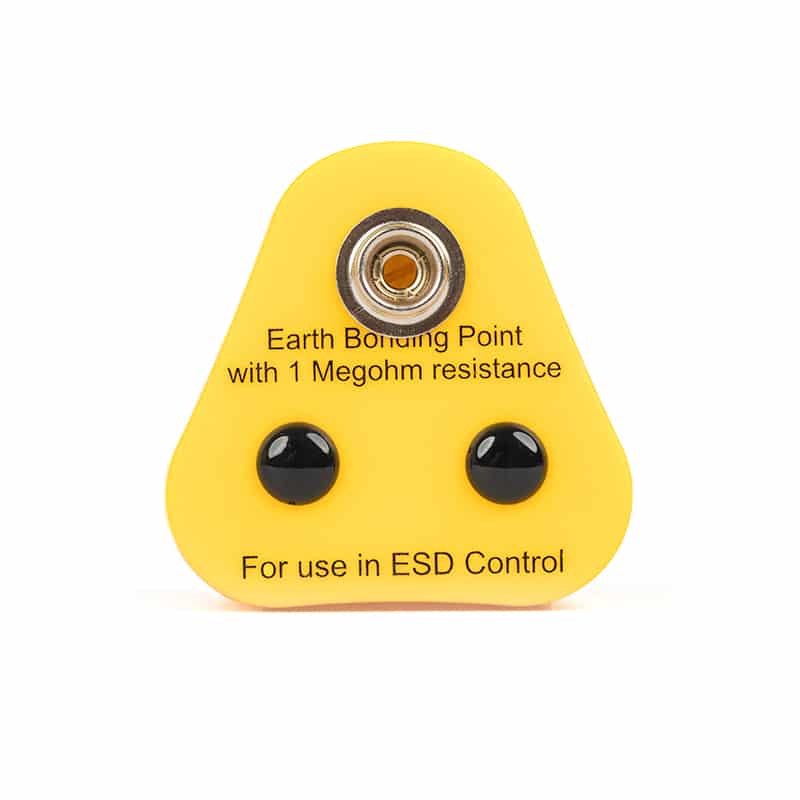

The BPE Earth Bonding Plugs are designed to provide a common ground point for grounding using protective Earth in an ESD protected area (EPA). An essential item for connecting wrist straps and Earth leads to mains Earth.
Earth bonding plugs can be supplied with any combination of 10mm studs, 7mm studs, 4mm studs, banana sockets, shrouded banana sockets and reverse banana sockets to suit any requirements. These plugs offer a simple and easy method of grounding. BPE is supplied with 1 x 10mm stud, 1 x 7mm stud and 1 banana socket.
Utilising mains earth as the “Earth Facility” is now the most popular method for guaranteeing Zero potential in the EPA. Designed to be plugged directly into the mains socket.
Used for connecting wrist wraps and Earth leads to mains Earth.
- Simple and easy method of grounding personnel, ESD work bench, ESD matting and ESD flooring.
- Reduction in the static decay rate of workstations.
- Reduction in component damage when handling sensitive electronic devices.
Pair your BPE with our static control workstation. This includes all of the essential grounding items needed for static control. To view this product, click here.
We also provide separate grounding items including:
As with any ESD application, there are a number of factors that must be considered in order to protect the workforce and eliminate the risks of component damage. For expert advice on creating the right ESD safe environment, get in touch with us and we’ll be happy to help.
