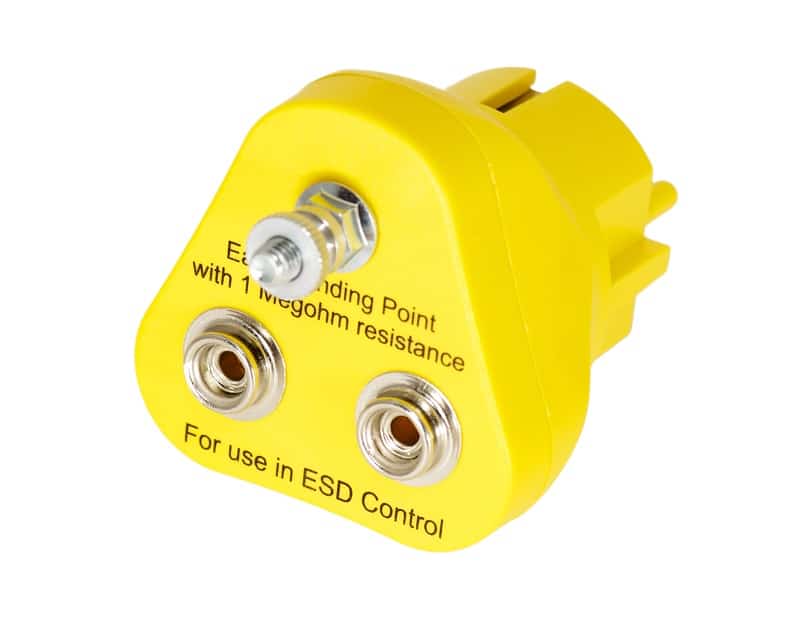

BP210M5EU is supplied with 2 x 10mm studs, 1 x M5 post, 1 meg-ohm resistor. Earth Bonding plugs can be supplied with any combination of 10mm studs, 7mm studs, 4mm studs, banana sockets, shrouded banana sockets and reverse banana sockets to suit any requirement.
Utilising mains earth as the “Earth Facility” is now the most popular method for guaranteeing Zero potential in the EPA. Designed to be plugged directly into the mains socket.
- Supports EN 61340-5-1 & ESD S20.20 ESD Handling.
- Can be supplied with any combination of 10mm studs, 7mm studs, 4mm studs, banana sockets, shrouded banana sockets and reverse banana sockets.
- Used for connecting wrist wraps and earth leads to mains earth.
- Designed to be plugged directly into the mains socket.
- Manufactured in the United Kingdom.
- Customisation available on request. Includes, logos, configurations, resistance values, languages and more.

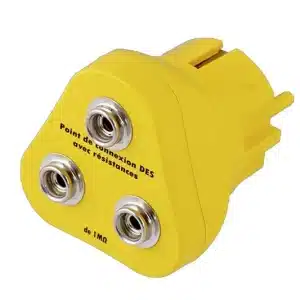

Earth Bonding Plugs (UK and EU)
The Earth Bonding Point (EBP) plug is designed to provide a common ground point for grounding using protective earth in an ESD protected area (EPA). The plug fits into the mains supply socket, making a connection with the earth conductor only. In place of the live and neutral pins are moulded insulating plastic pins to allow positive location in the socket. Connectors on the front of the plug are available for connection via ground cords to the various elements of the EPA. Each element is held at a common potential.
A resistance of sufficient resistance to limit current to less than 0.0005 amperes (0.5 milliamps), at the highest voltage that may be encountered, should be incorporated. Nominally, 800 kilo ohms are sufficient for voltages of up to 240 volts alternating current (AC). The value of one mega ohm is specified because it is a standard value discrete resistor. Follow appropriate regulatory or company safe grounding instructions. If overstressed the resistor will open the circuit. It is virtually impossible to misuse the plug, which is permanently sealed. The resistance between the terminations and the pin of each plug is tested after manufacture. Configurations can include 4mm,7mm,10mm Stud, 4mm Banana Sockets, M5 Binding Post.
Supports EN 61340-5-1 & ESD S20.20 ESD Handling.
