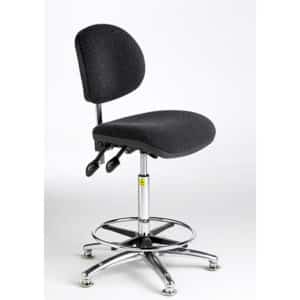

Intermediate ESD Chairs

Intermediate mid-price range of Static Dissipative Ergonomic Chair specifically designed and manufactured for use in the electronics and electrical industries. This range prevents the build up of static electricity by dissipating it directly to earth. The fully ergonomic chair is fitted with a seat tilt, back rack angle and height adjustment, gas lift swivel height adjustment and glides or locking castors. Three dimensional moulded foam and synchro mechanism for added comfort and support. An excellent investment to make for your static control area.

All chairs are made in the UK to order, lead time is approx 7 working days.

an icon of a lightning bolt

Product Code: sup/low/cha

Clear

From £189.00

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

Intermediate ESD Chair specifically designed and manufactured for use in the electronics and electrical industries. This range prevents the build-up of static electricity by dissipating it directly to earth.

This fully ergonomic chair is fitted with a seat tilt, back rack angle, height adjustment and gas lift swivel height adjustment. Each intermediate ESD chair has a waterfall seat design with three dimensional moulded foam and synchro mechanism for added comfort. Suitable for use in static controlled environments. All of our ESD chairs are manufactured in the United Kingdom.

Our Intermediate ESD Chairs are available in either high or low options. They are available in different materials and colours to suit your requirements, including black vinyl, dark blue and charcoal black fabric.

Intermediate Range Features:

Special Orders:

If you would like a special seating order or a detailed volume quotation, please contact Bondline and we’ll be happy to discuss this with you.

Please contact us on 01793 511000 or email sales@bondline.co.uk.

All chairs are made in the UK to order, lead time is approx 7 working days.

How Do ESD Chairs Work?

Quite simply, ESD chairs dissipate any static potential that it receives from the operator or the environment and balances out the potential until both the operator and the chair share the same charge.

The resistance to ground from any part of the seat which may have contact with personnel, must be less than 1×10^(10)Ω. At least two castors or feet must provide a path to ground.

Electricity only flows through conductive objects, and normal concrete floors are not conductive. Therefore, any buildup of static potential will discharge when contact is made with an electronic device unless a grounded connection is maintained with an ESD wrist strap. An ESD chair ensures the effectiveness of ESD flooring and ESD mats.

Non-conductive ESD chairs create opportunities for user error, such as when a user rests their feet on something besides the floor such as a separate footrest or stool rail. If both of a user’s feet do not touch an ESD floor or ESD mat, and the user is not grounded with an ESD strap, then the likeliness of an ESD event is greatly increased. Likewise, if the user is not wearing ESD footwear or grounding straps, the insulative character of standard shoe soles threaten the integrity of a conductive ESD chain.

Why Do You Need ESD Chairs?

Your workers need the same comfort, adjustability, and ergonomic support in electronic assembly, repair areas, and other highly sensitive environments as they do in other areas that are non-sensitive to ESD.

Some areas require the static protection provided by ESD chairs for workers that deal with delicate electronic circuitry or work areas that require minimised environmental pollutants such as a cleanroom environment.

Even when there is an ESD floor or floor mat in place, it is highly recommended that you use an ESD chair. If an operator were to remove their feet from the ESD floor, then this could cause static to generate and discharge onto the person and then to the electronic they are working on. Therefore posing a high risk to the static sensitive item. A combination of ESD flooring and ESD chairs would be the most effective solution to static control.

To prevent any static damage from occurring, investing into ESD seating for your industrial environment is a smart choice to opt for.

Additional information

Select a product:

SUR2BLV – Black Vinyl High Chair – Height 500mm-690mm – (Black Fabric Image Shown), SUR3BLF – Black Fabric Low Chair – Height 450-590mm – (Blue Fabric Image Shown), SUR3BLV – Black Vinyl Low Chair – Height 450-590mm – (Blue Fabric Image Shown), SUR3DBF – Dark Blue Fabric Low Chair – Height 450-590mm – (Image As Shown), SUR4BLF – Black Fabric High Chair – Height 500mm-690mm – (Image As Shown), SUR4BLV – Black Vinyl High Chair – Height 500mm-690mm – (Black Fabric Image Shown), SUR4DBF – Dark Blue Fabric High Chair – Height 500mm-690mm – (Black Fabric Image Shown)

Intermediate Chair Options

Our Intermediate ESD Chairs are available in either high or low options. They are available in different materials and colours to suit your requirements.

SUR3 Low Range

SUR3BLV – Black Vinyl

SUR3DBF – Dark Blue Fabric

SUR3BLF – Black Fabric

SUR4 High Range

SUR4BLV – Black Vinyl

SUR4DBF – Dark Blue Fabric

SUR4BLF – Black Fabric

Technical Datasheets

SUR3 Technical Datasheet

SUR4 Technical Datasheet
