Bondline Helps UK Electronics Manufacturer Set Up EPA With ESD Workbenches And ESD Chairs

On the 23rd January 2023, Bondline helped a UK electronics manufacturing company set up an Electrostatic Protected Area with the supply, deliver and install of ESD Workbenches and ESD Chairs.

The Project Brief

The brief from the customer was to supply ESD Workbenches and ESD Chairs as part of the project to turn the area (which was being used as office space) into an Electrostatic Protected Area (EPA).

John, a member of Bondline’s team, had a site meeting initially to obtain as much information about what the company wanted. John then measured up and suggested the most suitable range of benches based on the information given. The products that would be installed on-site were: ESD SUR2 Chairs and ESD KSHB Benches with the additional instalment of lights. Each product installed on-site was in compliance to the IEC-61340-5-1 International Standard.

John quoted the job and received the order in late October. In early December, the customer asked for delivery and installation on 23rd January as this was the optimum date for them as it coincided with the completion of other works on site. We duly delivered and installed on the 23rd and the customer is happy.

Bondline’s ESD Benches and ESD Chairs Installed at the Customer’s Premises

Several ESD Benches and ESD Chairs were installed on-site the customer’s premises. Each ESD Bench was installed with one shelf and a pair of uprights along with lighting support. The new EPA set-up has provided the customer with a designated ESD Work Area to allow for the safe handling and manufacturing of static sensitive components and devices.

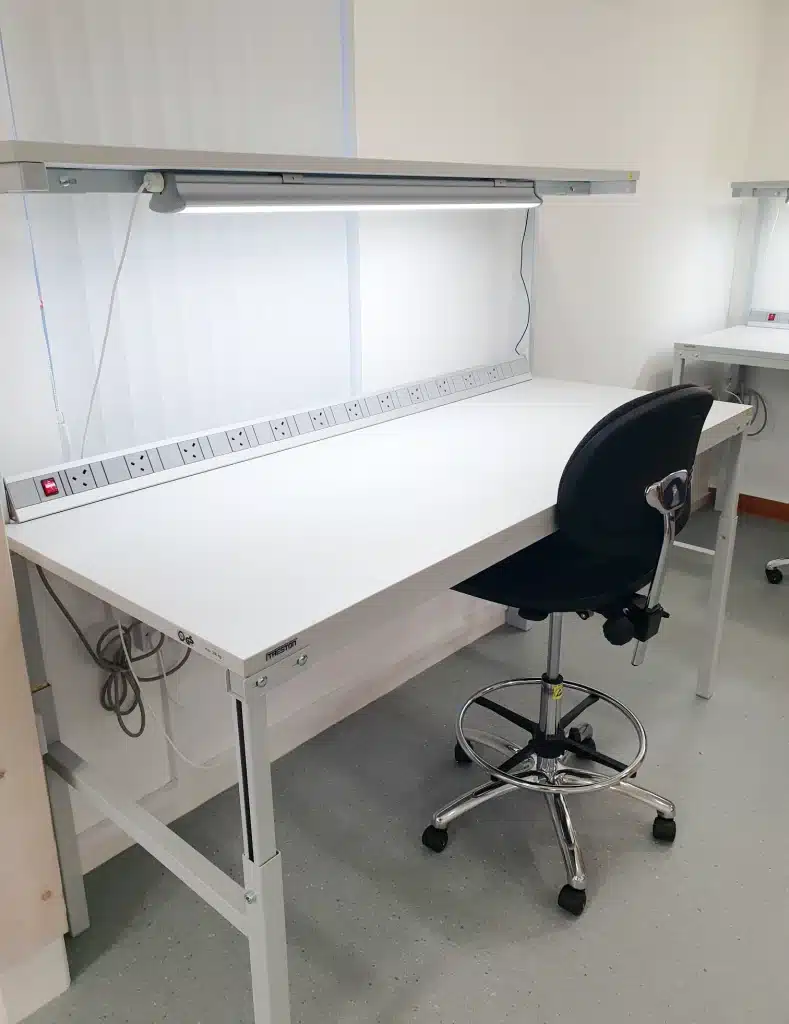

An image of an EPA with ESD Benches and ESD Chairs installed by Bondline Electronics Ltd  An image of an ESD Bench and chair installation at Customer's premises - Bondline

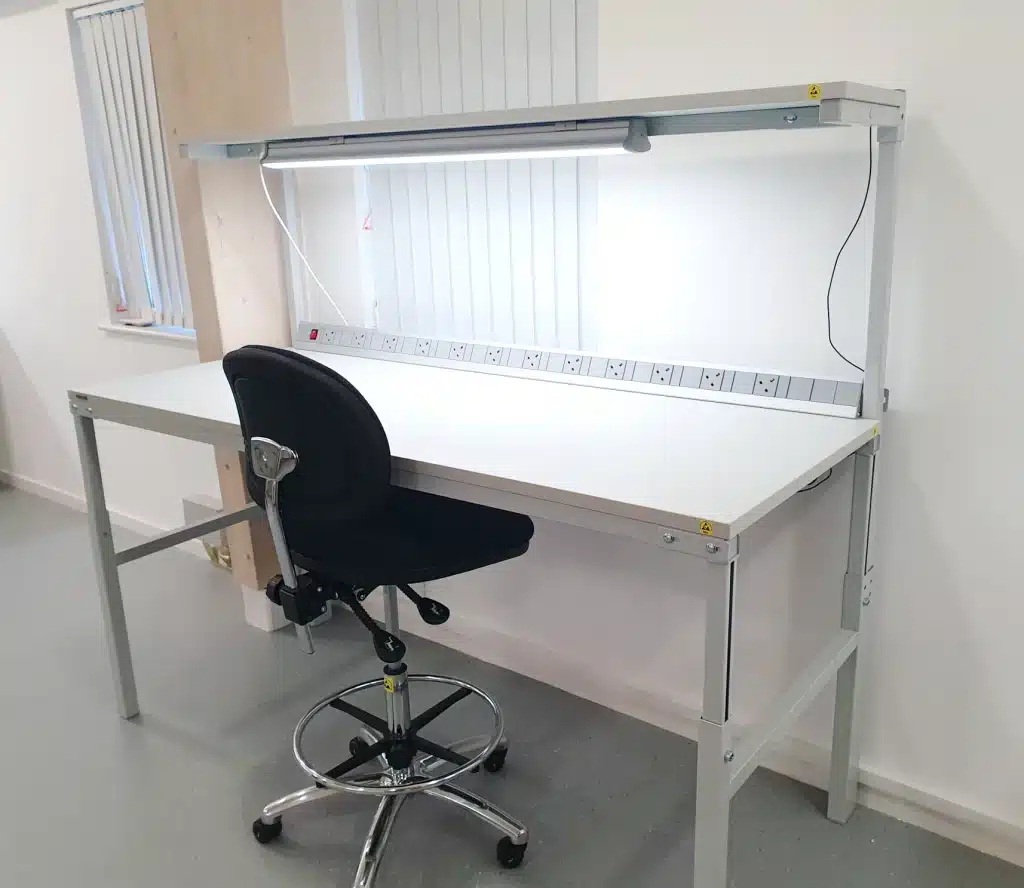

An image of an ESD Bench and Anti-Static Chair installation from Bondline Electronics Ltd

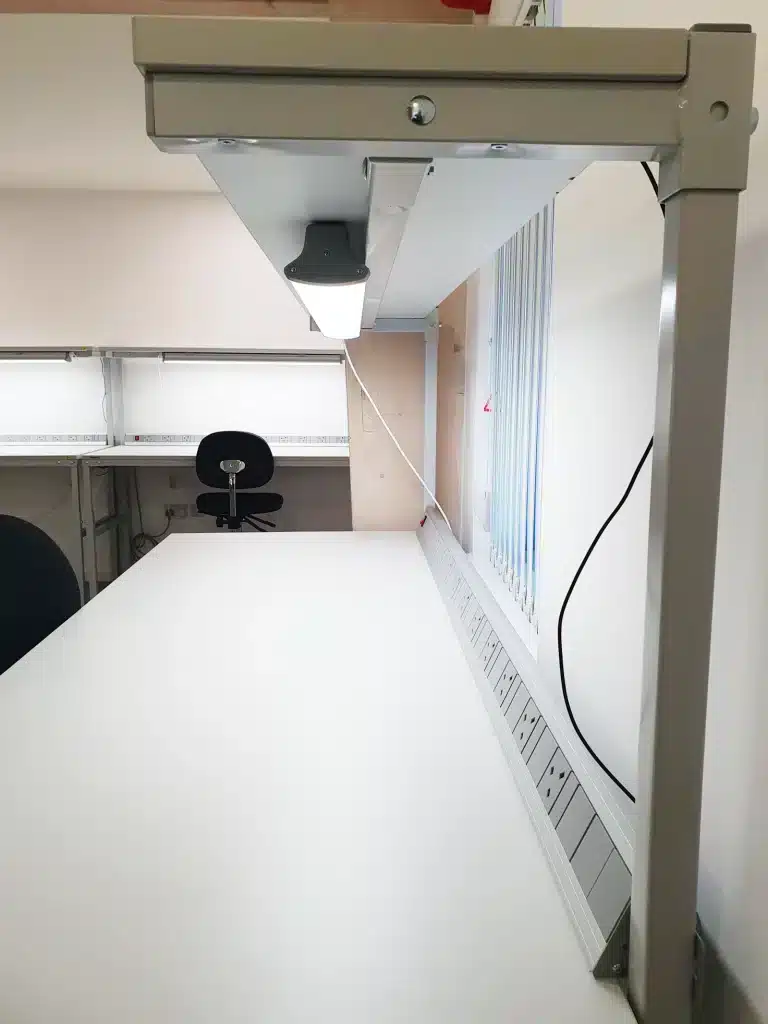

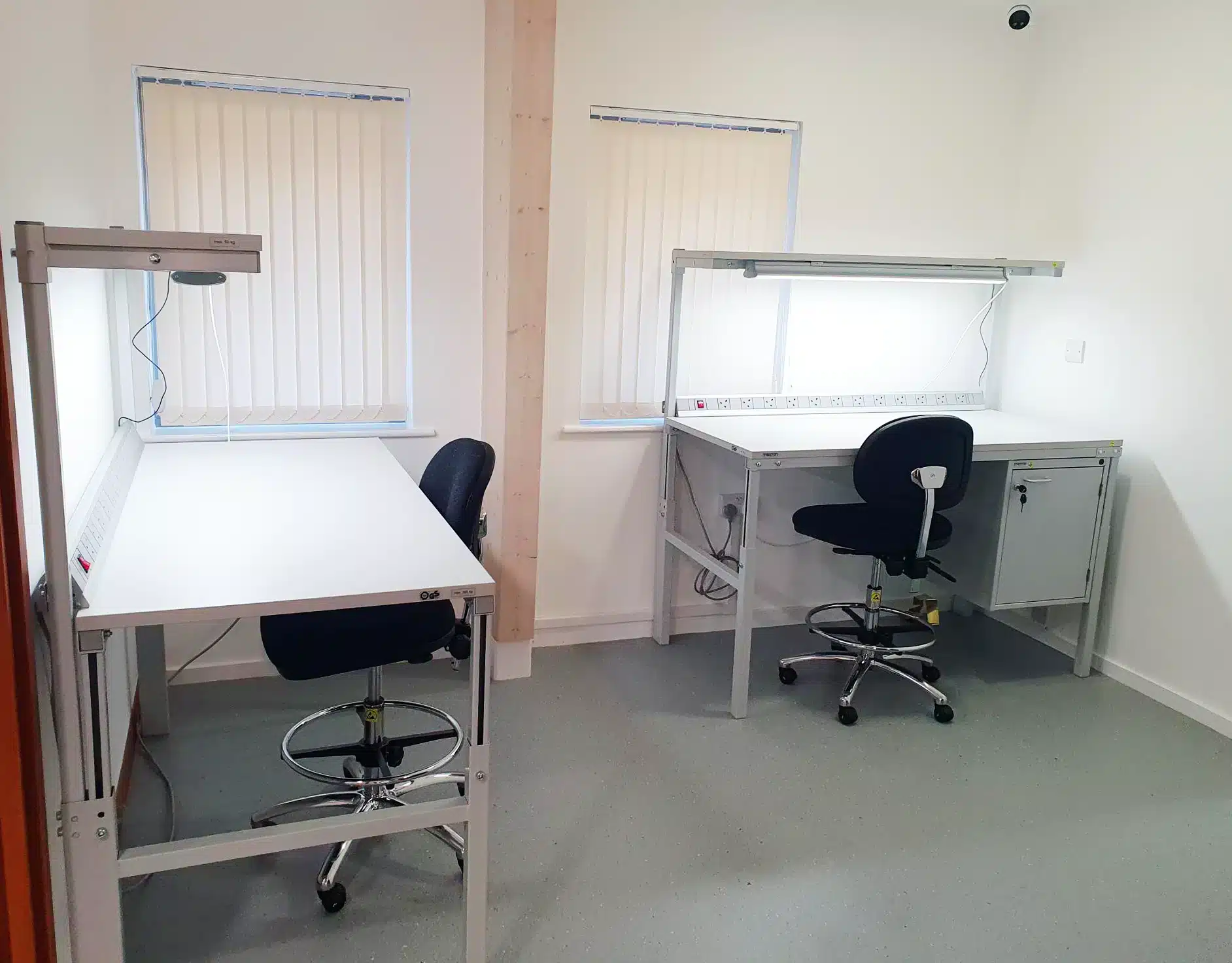

An image of an ESD Bench and ESD Chair installation at Electronic Manufacturing Company - Bondline  An image of two ESD Benches and ESD Chairs installed by Bondline Electronics Ltd  A close up image of an ESD Bench installation with lighting set up at Customer's premises - Bondline

The ESD KSHB Workbench Range

Installed at the customer’s premises was Bondline’s ESD KSHB Workbench.

Key Features of KSHB Workbench:

  • A low-cost, standard ESD workbench with a shelf and a pair of uprights.
  • Easy height adjustment with an Allen key, 650-900 mm.
  • Height of ESD laminate shelf can be adjusted between 1080-1550 mm.
  • Maximum load capacity of the bench top is 300 kg.
  • Maximum load capacity of the shelf 50 kg even load.
  • Durable and high quality steel frame.
  • Essential range of accessories and add-ons for basic needs.
  • ESD bench top with a light grey laminate surface, grey edging, 25mm thickness and semi-conductivity.
  • 2 / 5 years guarantee from date of delivery, dependent on additional items*.
  • Quick lead times*.
  • Easy to install.
  • RoHS and REACH compliant.
  • CE approved.
  • Compliant according to IEC-61340-5-1 International Standard.

ESD TPH Workbench with extra working space - BondlineESD TPH Workbench - Bondline

The SUR2 Premium ESD Chair Range

Installed along with Bondline’s ESD KSHB Workbenches was the SUR2 Premium ESD Chair range.

Premium ESD Chair Range Features:

  • Fully Ergonomic with waterfall seat design with three dimensional moulded foam and synchro mechanism for added comfort.
  • Cushioned hardwearing polyurethane seat and back rest that can be washed clean.
  • Supplied with glides or locking conductive castors. (internal safety brakes).
  • Seat tilt angle adjustment: 85-95 degrees.
  • Back rest angle adjustment: 75-115 degrees.
  • Gas lift seat height adjustment: 500mm-690mm (SUR1), 430mm-570mm (SUR2).
  • Base Diameter: 24” / 600mm (SUR1), 27”/ 675mm (SUR2).
  • SUR2 is supplied with a chrome height adjustable foot ring.
  • Manufactured in the United Kingdom.
  • Quick lead times (approx. 7 working days).
  • Special orders and ad-ons on request.
  • Compliant to IEC-61340-5-1 International Standard.
  • RoHS and REACH compliant.

Supreme ESD Chair 5 | Bondline Electronics Ltd

Looking To Set Up A New ESD Area? Get In Touch With Bondline

With the help of Bondline, we can help you set up your own ESD Protected Area in accordance to the IEC 613-40-5-1 International Standard. Whether you are looking to establish a large work area or even a small part of your room, we have a wide variety of anti-static equipment to suit all requirements.

As well as our anti-static products, we can also offer our complete supply, deliver and install package to help you set up your EPA. To get in touch please call (+44) 01793 511000 or email sales@bondline.co.uk. Alternatively, you can also fill in the form below.

If you’d like to find out how we helped other UK electronics manufactures with their installations, see our ESD installation case studies page.
