PCB Racks

Our robust, moulded conductive PCB holders are a very convenient method of storage and shipping in assembly area. They are carbon loaded robust racks for the protection of CMOS assembled boards. For use in static controlled product areas where the racks give a conductive path to ground. Available in a range of sizes and shapes.

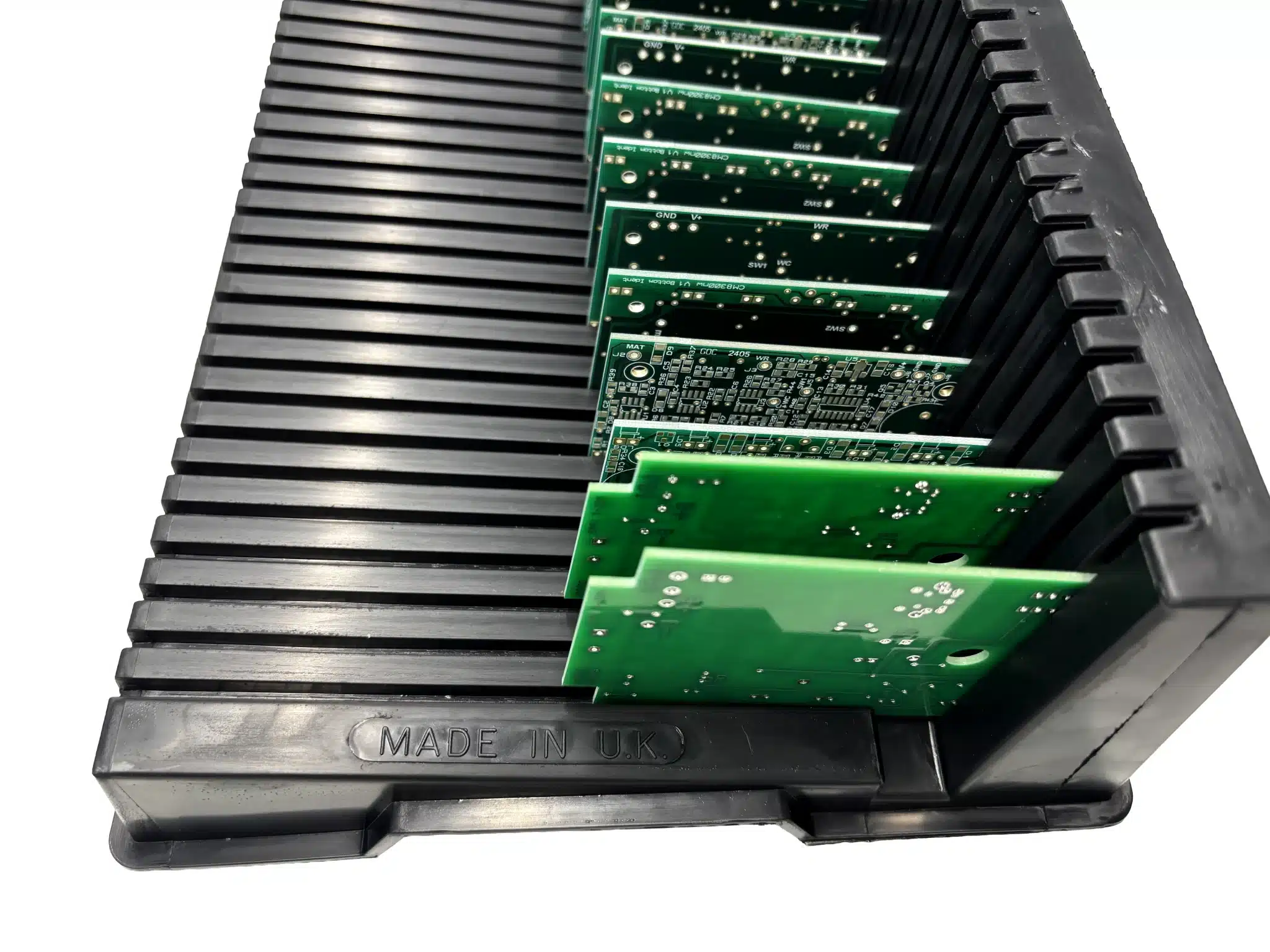

Manufactured in the United Kingdom.

an icon of a lightning bolt

Product Code: pcb/rac

Clear

From £6.25

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

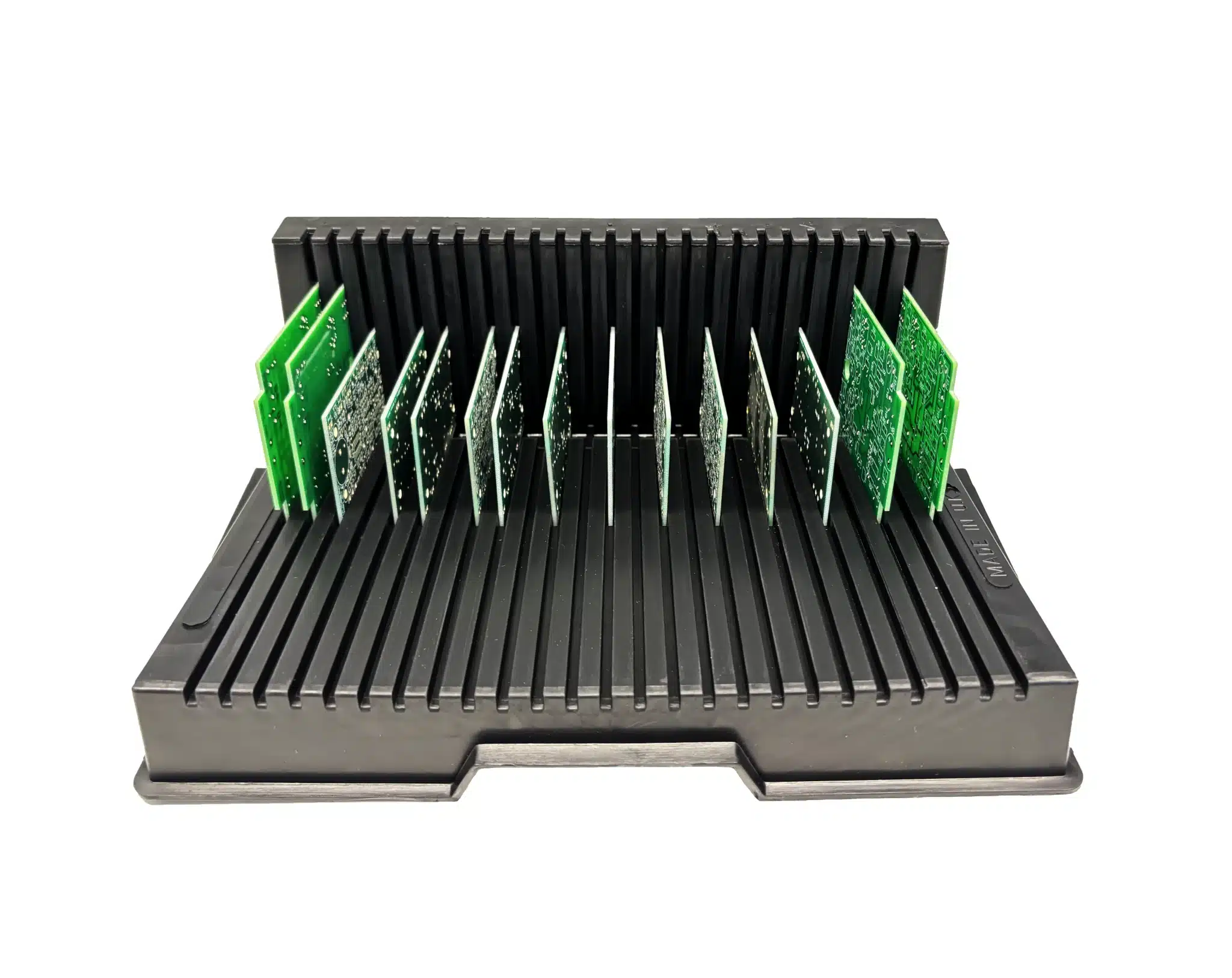

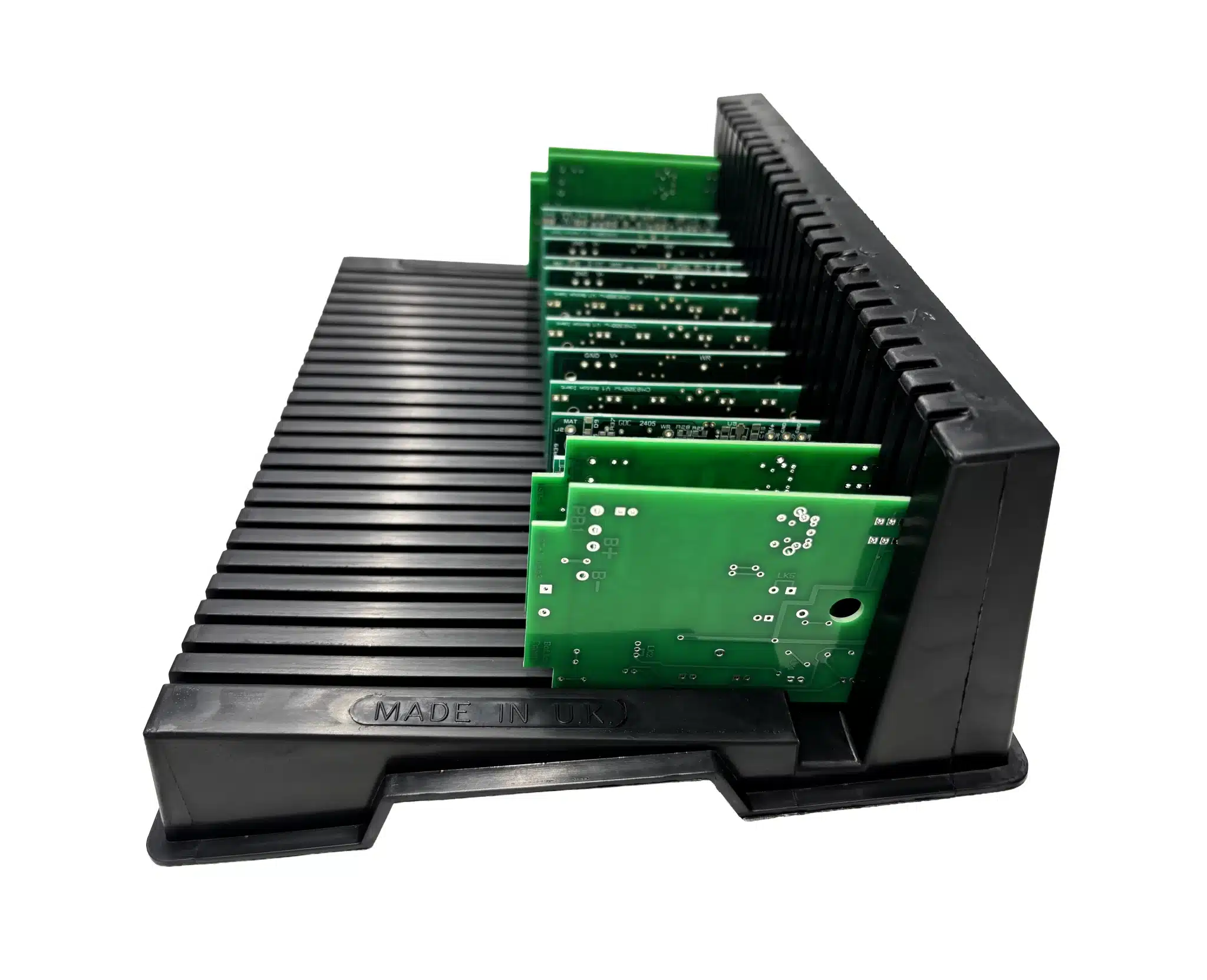

These conductive PCB racks are moulded with black conductive polypropylene. They are carbon loaded robust racks for the protection of CMOS assembled boards.

Robust, moulded conductive PCB holders are a very convenient method of storage and shipping in assembly area. These PCB racks are moulded with black conductive polypropylene. Ideally, these should be used in unison with an ESD conductive surface such as an ESD bench mat or ESD workbench. They are carbon loaded robust racks for the protection of CMOS assembled boards. Manufactured from a rigid carbon infused material these PCB racks are also stackable for space saving. For use in static controlled product areas where the racks give a conductive path to ground.

Made in the UK logo

Key Features:

Application

PCB Racks can be used for the following:

Please Note: All of our PCB racks are now Imilani manufactured.

Discover our full PCB Rack range by clicking here.

PCB Racks



Additional information

Weight N/A
Select a product:

PCBHD – 406 x 275 x 150mm – 48 slots (3mm wide), PCBL – 350 x 270 x 130mm – 25 slots (2.2mm wide), PCBS – 210 x 275 x 95mm – 25 slots, UPCKS – Universal Panel Carrier 400 x 77mm 20slots 3mm wide

Size Options

Our conductive PCB racks are available in various sizes.

PCBS – Maximum board thickness 3.0mm wide (Size: 210 x 275 x 95mm -25 slots).

PCBL – Maximum board thickness 2.2mm wide (Size: 350 x 270 x 130mm -25 slots).

PCBHD – Maximum board thickness 3.0mm wide (Size: 406 x 275 x 150mm -48 slots).

UPCKS – Maximum board thickness 3.0mm wide. (Size: 400 x 77mm -20 slots) Universal Panel Carrier.

Technical Datasheet

Click here to view the ‘Technical Datasheet’.
