Description
Ensure constant monitoring of the Earth to ground connection with Constant Monitors.
The in-line wrist-strap, mat and Earth Constant Monitors are designed to continuously monitor whether the wrist-strap, bench mat or the Earth is disconnected whilst simultaneously checking the Earth to ground system is working correctly. Should any part of the ESD system fail, a red LED indicator will illuminate and a buzzer will sound. This part of the system should be checked using the appropriate test equipment before continuing with manufacture. All cords must be uncoiled for correct working order.
Please note, the CM8300R resistive version is custom manufactured and made to order. The CM8300C capacitive version is available from stock.
Product Features:
- Constant monitoring of the Earth-to-ground connection, work mat-to-Earth connection and wrist-strap connection.
- Simultaneously checks to see if the Earth to ground system is working correctly.
- Available with European plug on request.
- Fast UK delivery. Order before 1pm for next day UK delivery. Standard UK delivery 2-3 days*.
- Each unit is supplied with 1 year calibration certificate.
- Full calibration service available. Recommended annually.
- Bespoke customisation. Logos and printing can be quoted on request.
- All test instruments are manufactured to the very highest quality allowing qualification to council directives 89/336/EEC.
- UK manufactured. High quality, reliable.
- Meets the requirements of IEC 61340-5 International Standard.
- Compliant to CE, UKCA, RoHS and REACH standards.
- Bondline is a leading UK supplier and vast stockist of ESD control equipment.
 |
UK Manufactured |
ESD Standards & Regulations Compliance:
 |
IEC 61340-5-1 | |
Qualification to council directives 89/336/EEC |
 |
European Conformity |  |
UK Conformity Assessed |
 |
RoHS compliant |  |
REACH compliant |

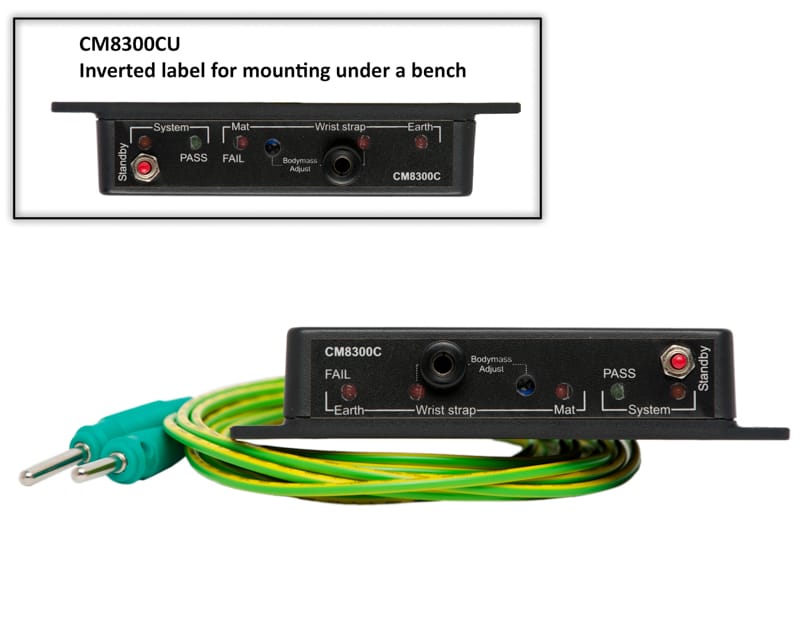

Constant Monitor – Capacitive
Works with a standard wrist-strap and cord and has a body mass adjustment for individual user set-up:
- Constant monitoring of the earth to ground connection.
- Constant monitoring of the work mat to earth connection.
- Constant monitoring of the wrist-strap connection.
- Monitor comes with 2 of 0 ohms cords that connect the monitor to the bench mat and Earth bonding point.
CM8300C – Capacitive Monitor (for use on the workbench).
CM8300CU – Capacitive Monitor (for use under the workbench).

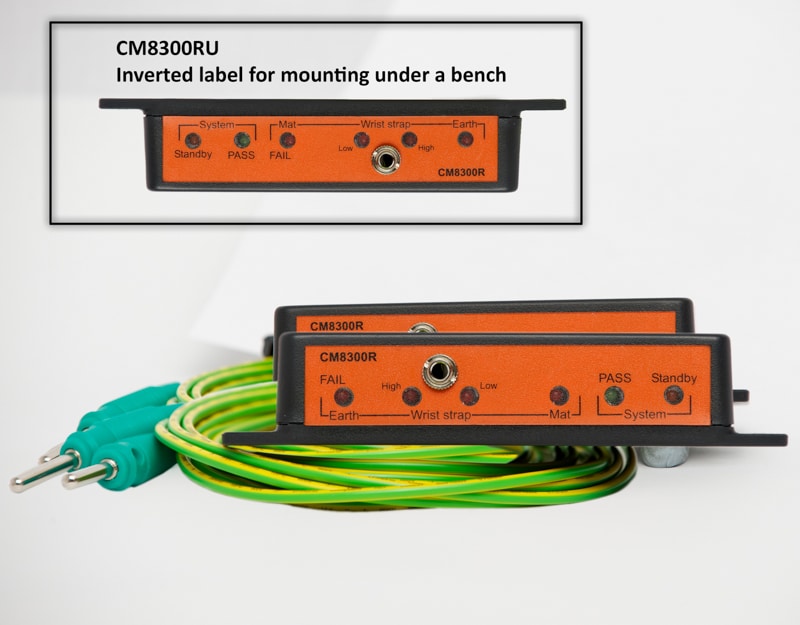

Constant Monitor – Resistive
Works with a dual wrist-strap and cord and automatically enters standby mode when the wrist-strap cord is removed. Indicates ‘high’ or ‘low’ fail for the users wrist-strap. Range 750K-35M.
- Constant monitoring of the earth to ground connection.
- Constant monitoring of the work mat to earth connection.
- Constant monitoring of the wrist-strap connection.
CM8300R – Resistive Monitor (for use on workbench).
CM8300RU – Resistive Monitor (for use under workbench).

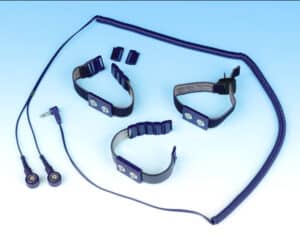

Dual Wrist Straps and Cord
High-quality dual wrist-strap and cords to be used with CM8300R.
DCC6 – Dual coil cord 3m (10ft) 4mm Stud to Stud,1 x Right Angle Jack, Colour Dark Blue.
DHCA4 – Dual Fabric Wrist Strap- 4mm Studs With enquiry form.
See our full range of ESD Testing Equipment here – ESD Test Instruments | Bondline.
