ESD Workbenches (Square Tube Style) “Cantilever” Design

Our range of best-selling ESD Cantilever Workbenches provide static dissipative properties which act as protection from an electrostatic charge for employees and employers within the workplace. These workshop benches are ideal for the electronic assembly industry. Fully configurable to suit any application. Available with anti static Neostat or Lamstat worktops. Framework is powder-coated in a light grey. Manufactured in the UK. 5-day express delivery on specific configurations.

Contact us to discuss if you need a quick delivery ESD bench solution.

an icon of a lightning bolt

Product Code: can/wor/ben

Clear

£9,999.00

This product is unavailable for online purchase. Please fill out this form and a member of our team will be in touch to discuss the product with you.

Description

Get 5-day express delivery on specific configurations with our ESD Cantilever Workbenches

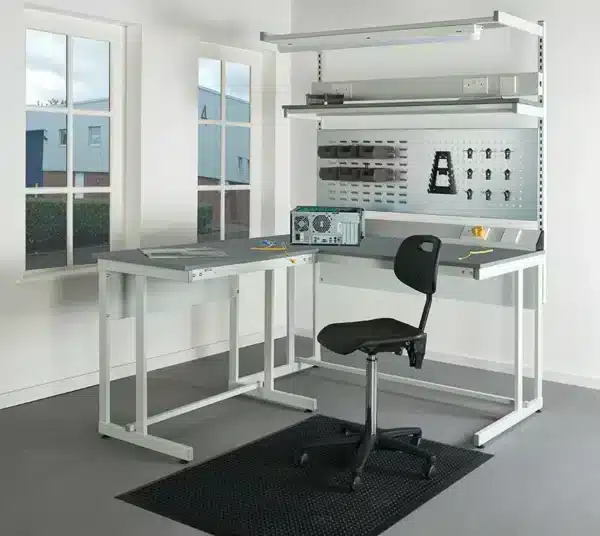

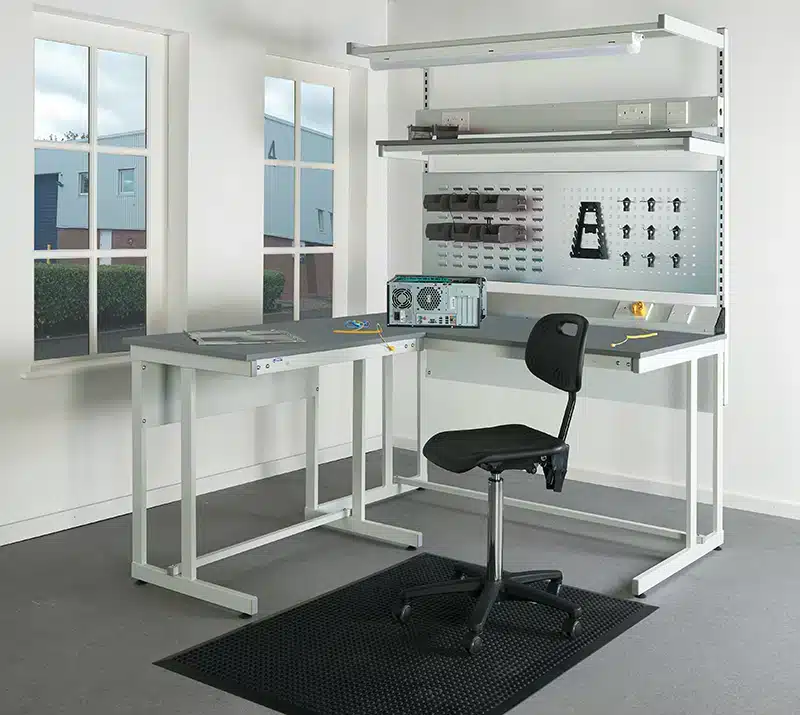

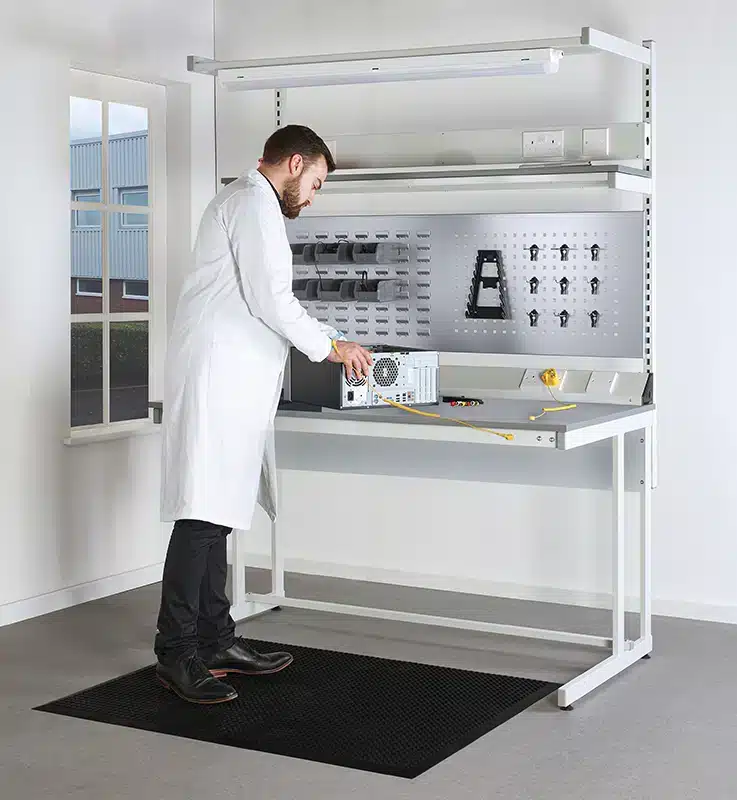

Our best selling range of 5-day delivered Cantilever ESD Workbenches are ideal for use in electronics assembly, production and light engineering, with a weight load of 250KG evenly distributed. The workbenches’ framework enables maximum capacity for legroom within the workplace for the user. These steel workbenches have a powder-coated light grey framework and hard-wearing surface; available with 20mm thick Neostat or Lamstat worktops. Single drawer, cupboards, and triple drawer units are powder-coated with a light grey carcass and dark blue fronts as standard. The workbenches are supplied with levelling feet for uneven floor surfaces.

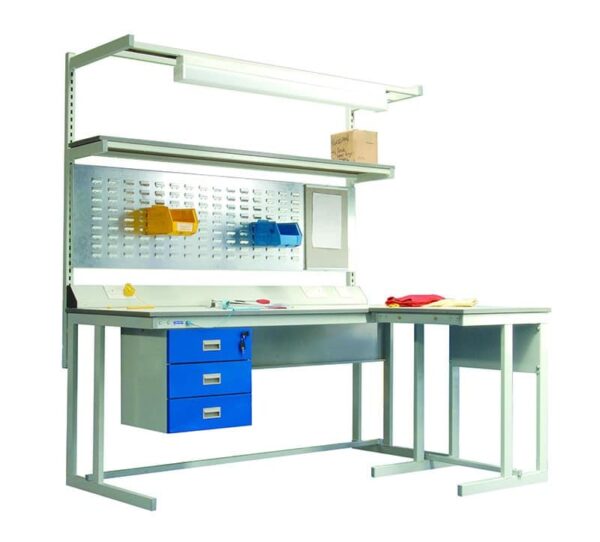

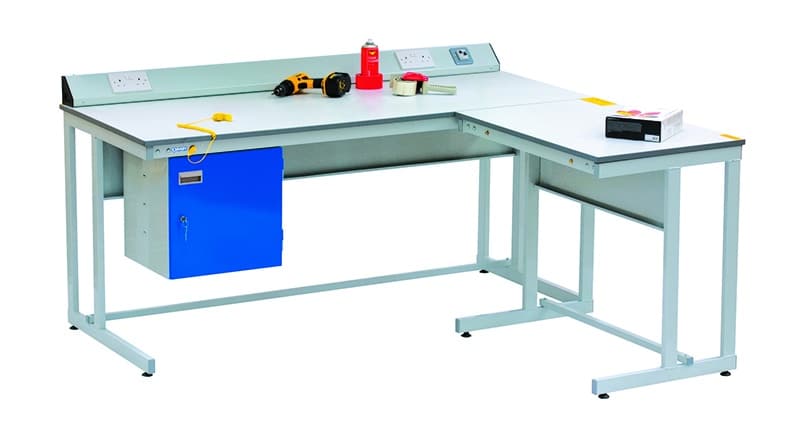

Cantilever ESD Workbenches can be fully configured to any requirement. Full range of compatible static dissipative accessories available to suit ESD cantilever workbench including wrist straps, circuit breakers, Earth/ground leads, galvanised louvre panels, anti-static floor matting, etc. Above-bench accessories mount to support posts that fix to rear of leg frames. Lower shelves and extension benches available. Standard bench height is 840mm (760mm and 920mm heights also available). The ESD bench includes wrist strap sockets for attaching a wrist strap, which ensures that the user is Earthed to the bench (wrist straps sold separately).

Key Features of ESD Cantilever Workbenches:

Made in the UK logo UK Manufactured

Choice of Worktops Available:

Workbench Sizes:

(760mm and 920mm heights also available)

ESD Standards & Regulations Met:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt European Conformity
bondline RoHS compliant bondline REACH compliant

Need a quick delivery ESD bench solution? Call us on +44 (0)1793 511000 to discuss options

Additional information

Select a product:

ESD/WOR – Square Tube Cantilever Style Workbench

Worktop Options

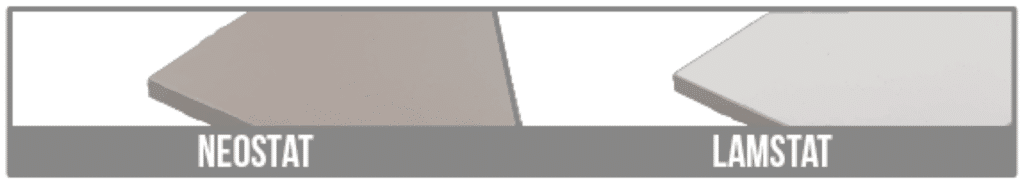

Neostat and lamstat worktops for ESD cantilever workbench from Bondline

Neostat ESD Worktop

Description: A synthetic rubber based sheet of material that covers over MDF core and has a lightly embossed texture to eliminate glare. Application: For general assembly, inspection and test applications where live equipment is not exposed. Total Top Thickness: 20mm. Material Properties: Highly resilient to heat, hot solder and flux resistant. Leakage Resistance: 10 to the power of 6 - 10 to the power of 8 ohms. Top Layer: Conductive. Colours: Grey (other colour available on request - blue). Finish: Surface has a lightly embossed texture to eliminate glare. Light Reflection: 29%. Relevant Standards: BS EN 61340-5-1:2001 - Protection of Electric Devices from Electrostatic Phenomena.

Lamstat ESD Worktop

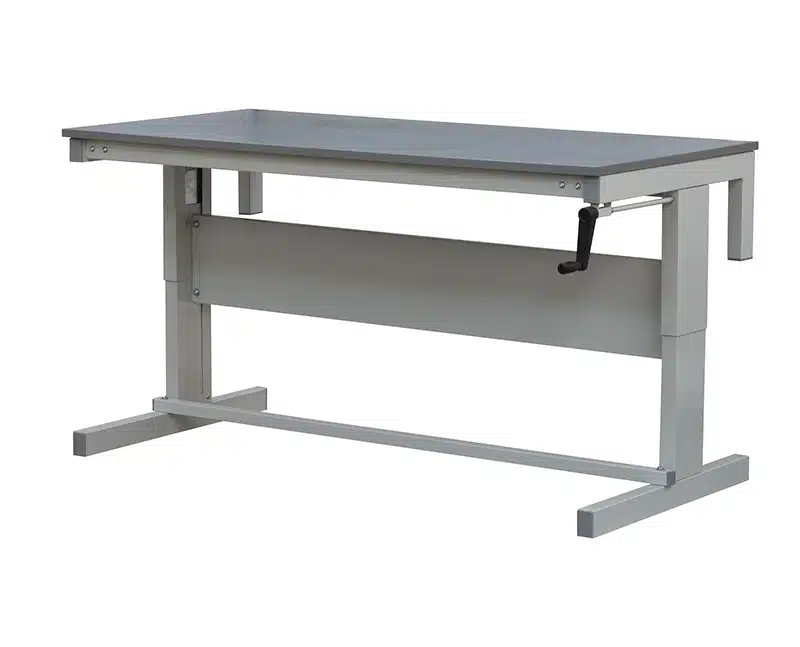

Description: A hard-wearing quality worktop with 20mm thick chipboard. Total Top Thickness: 20mm with chipboard core. Actual Lamstat Thickness: 8mm. Leakage Resistance: 10 to the power of 6 - 10 to the power of 8 ohms conforming to BS IEC 61340-5-1. Material Properties: Resistance to heat, molten solder, oil pot test 20 minutes at 180 degrees and cigarette tests meets the requirements of EN438. Abrasion and scratch resistant Level 3 Class H to EN43. Chemical Resistance: Resistant to organic solvents, weak acids, alkaline, petrol and oil meets the requirements of EN438. Premium height adjustable ESD bench with laminate worktop - Bondline Electronics Ltd

Cleaning & Maintenance

1. Clean paint work periodically with warm soapy water. 2. Clean worktop surfaces periodically with warm soapy water or proprietary surface cleaners. Do not use solvents of any type. 3. Where cupboards and drawers are fitted, periodically oil hinges and locks sparingly with a light oil (3-in-1 or similar).

Technical Datasheet

ESD Cantilever Workbench: Technical Datasheet

Assembly Instructions

ESD Square Tube Style Bench: Assembly Instructions
