ESD matting is an anti-static surface that safely dissipates electrostatic discharge (ESD) by controlling the flow of static electricity to ground. It is used to protect static sensitive electronic components from damage caused by sudden static shocks.
ESD mats are commonly used on workbenches and floors in electronics manufacturing, repair environments, and electrostatic protected areas (EPAs).
ESD matting plays a critical role in protecting static sensitive electronic components from electrostatic discharge (ESD), particularly in environments where static electricity is a constant risk.
Static-sensitive components are vulnerable in industries such as electronics manufacturing, flat panel production, and assembly operations. Even a small electrostatic discharge can generate sparks that cause irreversible damage to components like printed circuit boards.
To prevent this, organisations implement ESD control measures, with ESD matting forming a foundational layer of protection. ESD mats help to safely manage and dissipate static electricity in the workplace.
If you work in an Electrostatic Protected Area (EPA) or handle electronic components, understanding how ESD matting works and why it is essential can help you prevent costly damage and improve operational safety.
ESD mats work by slowly draining static electricity from objects and people into a grounded system.
Instead of allowing a sudden discharge (which can damage electronics), the mat controls the flow of electricity through a dissipative surface layer and conductive backing. This ensures static charge is neutralised safely.
For ESD mats to work effectively, they must be properly grounded using a ground cord and common point ground.
Antistatic mats help to protect static sensitive components from electrostatic discharge. They are engineered to drain static charge from items placed on their surface. A secondary benefit of ESD mats is that they serve to protect the surface of the ESD sensitive devices from wear and tear. They do this by slowing down the flow of static charge, which neutralises the static electricity and moves the charge into the grounded mat, away from the electronic components being worked on.
The performance of ESD matting is based on the material itsit is constructed with, as well as its electrical properties and ability to withstand heat, chemicals and mechanical abrasion. Generally, anti-static mats have a low electrical resistance of between 0.1 and 1000 MegaOhm (MΩ). The use of anti-static matting prevents the build-up of electrostatic charge in the body by dissipating this charge and thus prevents a sudden discharge between electrically charged objects on contact. A wide variety of sizes are available for these mats, which are typically placed on the floor or a work surface.
Larger workspaces or dedicated ESD workstations require rolls of ESD matting or custom-sized ESD mats to ensure the entire work surface is covered.
As with other forms of static safety equipment, ESD mats serve two purposes. First, they disperse static electricity of individuals and objects, and second, they prevent the buildup of static electricity in the workplace. Their use, together with grounding wristbands, antistatic clothing, antistatic tools, and antistatic packaging, helps reduce the possibility of an electrostatic discharge.
Best practice: Use metal grounding hardware snaps and ground cords connecting the work surface mat to the common ground point.
ESD mats are available in different types depending on where and how they are used, including workbench mats, floor mats, and specialised anti-fatigue mats. Each type is designed to control static electricity safely while supporting different working environments.
Workbench ESD mats are used on flat surfaces like workbenches and tables and are a key part of an ESD workstation, particularly in areas where hand assembly occurs. It is important that each bench or work surface is covered with the proper ESD material and is properly connected to Earth using a system of cords and Earth Bonding Points (EBPs).
Most workstations use pliable ESD matting to cover the bench and create a safe work surface for handling ESD-sensitive (ESDS) items. The mat must be grounded using metal grounding snaps and ground cords connected to a common point ground. Without proper grounding, static charge may transfer between components, tools, or users, increasing the risk of damage.

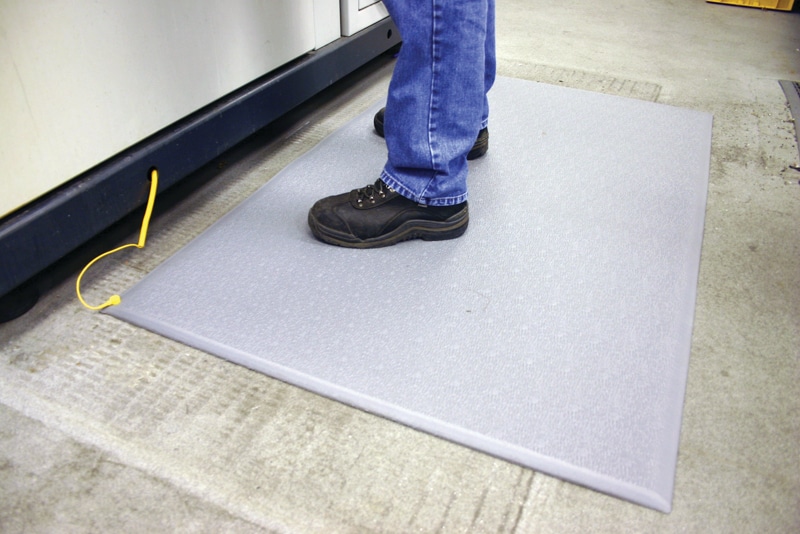

ESD floor mats are designed for use in areas where movement can generate static electricity, such as standing workstations or production floors. Walking alone can create static charge, but ESD flooring helps safely dissipate this electricity through conductive materials such as carbon fibres.
These mats also improve workplace safety by:
To work effectively, floor mats should be used with ESD footwear or heel straps to ensure a continuous path to ground.
Some ESD mats are designed with additional features such as anti-fatigue cushioning to improve worker comfort during long tasks. These are commonly used in environments where employees stand for extended periods while handling sensitive electronics.
There are also different construction types, including 2-layer and 3-layer mats. These combine dissipative and conductive materials to control how quickly static electricity is discharged. While conductive layers move charge quickly, dissipative surfaces ensure it flows in a controlled and safe manner to prevent damage.
If you need a larger workspace or a dedicated ESD setup, ESD matting is available in rolls or custom sizes to suit your environment. Regardless of the type or size, proper grounding is essential for effective static control.
It is also important to choose mats that meet recognised standards, such as IEC certification, to ensure reliable performance and protection for your electronic components.
Although often used interchangeably, ESD mats and anti-static mats are not exactly the same.
In most electronics environments, ESD mats are preferred because they provide complete static control rather than just prevention.
You need ESD matting if you:
Without proper ESD protection, even small static shocks can permanently damage electronic components.
ESD matting is used in environments where electrostatic discharge could damage static sensitive electronic components or create safety risks. Its primary purpose is to protect electronic devices and maintain a controlled static-free workspace.
ESD mats work in two key ways:
ESD matting is commonly used in:
In these environments, ESD mats are typically used alongside other control measures such as wrist straps, grounding systems, and ESD-safe footwear to ensure complete protection.
Without proper ESD protection, even small static discharges can:
Using ESD matting helps create a controlled environment where static electricity is managed safely and effectively.
Work surfaces for ESD protection can be categorised as conductive or dissipative.
According to most standards, a conductive working surface is one with a surface resistance of less than 1 x 10^(4) ohms. Those materials that conduct electricity ground a charge the fastest, however, too much discharge can harm them.
Those materials are classified as dissipative if they have a resistance of 1 x 10^(4) or less, but not more than 1 x 10^(9) ohms. Using dissipative materials is recommended when handling electronic components, as they dissipate charges more slowly. Surfaces used for benchtop working are most often made with dissipative materials.
The topmost important part of an ESD Control Program is personnel grounding. However, most people think that working surfaces are important too. In order for a mat to work properly, a must must be able to conduct electricity so the range of conductivity is vital.
If the mat’s resistance is too low, static transfers to the mat and a spark is created causing an electrostatic discharge (ESD) which will in turn damage static sensitive electronic components or devices.
If the mat’s resistance is too high, static transfers slowly and any items placed on the mat will not lose their charge. When the item is removed from the mat, the static charge will be capable of discharging to other items.
ESD protective worksurfaces with a resistance to ground of 1.0 x 106 to 1.0 x 109 provide a surface that is at the same electrical potential as other ESD control items at the workstation. They also provide an electrical path to ground for the controlled dissipation of any static charges on materials that contact the surface. The ESD protective worksurface also helps define a specific work area in which ESDS items are to be handled. The ESD protective worksurface is connected to the common point ground.
ESD matting can be measured in three ways:
The main measurement, and the one we’ll focus on most in the examples below. RTG measures the resistance given between the most heavily used part of the ESD mat and the electrical ground.
This functions like RTG with one difference. It measures the resistance between a single point on the mat’s surface and the grounding point of the work surface.
Surface resistance from one part of the mat’s surface to another point ten inches apart.
Before choosing your matting, there are three types of materials you need to familiarise yourself with first.
The type of matting material you opt for can provide you with different benefits, whether it be a more cost-effective solution or provide better static dissipation. Generally, antistatic mats are available in a vinyl or rubber material.

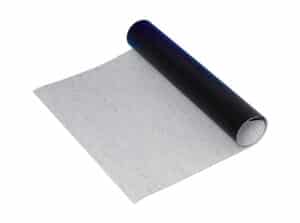

Vinyl is the most widely used material for table top or work surface applications. Vinyl mats are cost-effective, easy to cut to size and provide excellent static-dissipation overall.

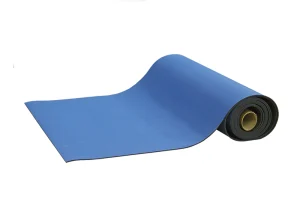

Rubber is generally used where high resistance to heat and chemicals is required. Mats made from rubber are resistant to hot solder, whereas a vinyl mat would melt. Compared to vinyl matting where the mats can change and become harder in cold conditions, rubber matting remains in its same form, staying stable; its ESD properties cannot change. Rubber mats are generally cheaper to manufacture. Therefore, they tend to be a cost-effective matting solution.
Anti static mats can be made from solid sheets, multiple layers and suspended particles, offering differing electrical performance. There are four common structures for vinyl and rubber mats:
Homogenous or solid mats are made of a single layer polymer mix and therefore consist of the same material throughout. These mats provide good mechanical service with electrical performance normally limited to about 10^(9) to 10^(10) RTG.

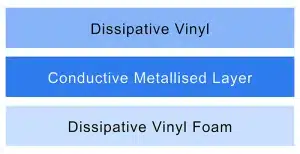

Three layer vinyl mats are constructed with a conductive metal/carbon inner layer that sits between a vinyl top surface and a foam backing. The conductive layer improves the electrical properties by acting as a fast track to move the static charge to ground. The foam back layer provides a cushioning effect, making it easier to pick up parts.

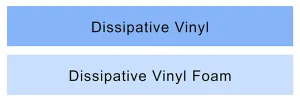

Two layer vinyl mats typically combine the foam used in three layer vinyl mats and dissipative vinyl from the solid mats. As they contain no metallised layers, they provide average electrical performance.

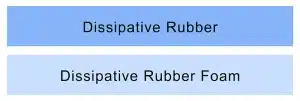

Two layer rubber mats, generally consisting of a static dissipative surface layer and a conductive backing, provide the same electrical performance as the three-layer vinyl mats. However, out of the two, the two layer rubber mats have a greater tolerance to heat and chemicals. This type of material does come with a cost premium.
ESD mats are used in environments that are electrostatically sensitive or where static electricity is a risk. This includes:
ESD mats are commonly used in static controlled areas where employees frequently interact with ESD-sensitive products; they are also necessary for employees who occasionally need to interact with these environments, such as back-office staff who sometimes need to access a cleanroom or manufacturing facility.
In cases where extended periods of standing are required, some ESD mats may incorporate “anti-fatigue” features, such as extra foam, to provide a more comfortable work environment.
1) The ESD Table Mat should be placed on your workbench when assembling general electronics. For workers who are doing electrical work or handling chemicals, ESD rubber mats are a good option. Static electricity is dissipated by the mat, which provides a route to the ground for static electricity buildup.
2) A ground snap is attached to your table mat to connect your ESD ground cord. Make sure the ring terminal of your ground cord is connected to a grounding receptacle nearby. You can accomplish this task by placing the outlet cover plate screw through the ring terminal.
3) Install your ESD wristband and insert the banana plug coil cord into the receptacle of the common point ground. The coil cord connects the wristband to the user. Wristbands are attached to the Ground Wire over the Coil Cord. With the coils, the wristbands can be easily moved.
4) Lay your floor mat before your workbench to prevent the buildup of static electricity. Static electricity builds up in the mat, which allows it to be discharged to the ground.
5) Connect the ground snap of your floor mat to the ground snap of your Low Profile ESD Ground Cord. The ring terminal must be connected to the grounding receptacle as described in step 2. To keep the shoes connected to the floor mat, wear ESD Heel Straps when standing on the ESD mat. If safety shoes are worn, the ESD heel straps need not be worn.
An ESD mat prevents electrostatic discharge by safely dissipating static electricity to ground. This protects static sensitive electronic components from damage caused by sudden electrical shocks.
ESD mats work by controlling and slowly draining static electricity through a dissipative surface and conductive layer. When connected to ground, they safely neutralise static charge instead of allowing a sudden discharge.
Yes, if you handle electronic components, an ESD mat is essential. Even small static discharges can damage circuits, reduce product reliability, and lead to costly failures.
Electrostatic discharge (ESD) is the sudden transfer of electricity between two objects with different electrical charges. This can happen through contact, friction, or separation.
Anti-static mats reduce the generation of static electricity, while ESD mats both prevent static build-up and safely dissipate existing charges to ground. ESD mats provide more complete protection.
ESD grounding is the process of safely directing static electricity into the ground using grounding cords, common point ground systems, and ESD mats. Proper grounding is essential for ESD protection to work effectively.
Yes, ESD mats can be used on carpet, but they must be properly grounded. Additional grounding methods, such as heel straps or ESD footwear, may be required to ensure effective static control.
The lifespan of an ESD mat typically ranges from 1 to 5 years, depending on usage, material quality, and environmental conditions. Regular testing ensures continued effectiveness.
ESD mats typically have a surface resistance between 1 × 10⁶ and 1 × 10⁹ ohms. This range allows controlled dissipation of static electricity without causing damage to sensitive components.
If an ESD mat is not grounded, static electricity cannot dissipate properly. This can lead to charge build-up and increase the risk of electrostatic discharge, making the mat ineffective.
Yes, over time ESD mats can degrade due to wear, contamination, or environmental factors. Regular cleaning and testing are recommended to maintain performance.
ESD mats should be used in environments where static-sensitive components are handled, such as electronics manufacturing, repair stations, cleanrooms, and server rooms.
Yes, when properly grounded, ESD mats are safe and designed specifically to protect static sensitive electronic devices from static damage.
Bondline Electronics Ltd are a leading UK supplier of ESD control products since 1986. They specialise in providing the highest quality ESD consumables at competitive prices, including ESD matting.
Bondline offer an extensive range of ESD worktop mats and ESD floor mats, including:
If you are finding that you still require more guidance around ESD matting, we’d be happy to help you. Our team is always on hand to answer any technical questions you may have. We also offer guidance and advice across our full product range.
Please get in touch with a member of our team on +44 (0)1793 511000 or send us an email to [email protected] and we can direct you to the best person to speak to. For more information on ESD mats, take a look at our ESD matting guidebook.
