Glossary of ESD Terminology

In this article, we have compiled a comprehensive glossary of definitions of the most common electrostatic discharge (ESD) terminology. The following ESD terminology in this article can be found across ESD standards and reading material on our website. Understanding what each of the terms mean can help you select the right static control products for your business. It is recommended that all personnel familiarise themselves with these key terms.

A – Z Glossary of ESD Terms:

A

Air Conductivity Air conductivity is the ability of air to conduct (pass) an electric current under the influence of an electric field.

Air Ions Air ions are molecular clusters of about 10 molecules (water, impurities, etc.) bound by polarisation forces to a singly charged oxygen or nitrogen molecule.

Air Ioniser An air ioniser is a source of charged air molecules (ions). They help to neutralise electrostatic charges on “process-essential” insulators and isolated (non-grounded) conductors. For more information, see our guide on ionisers in ESD control.

Antistatic  Antistatic is a minimal generation or retention of a ‘static’ charge. It usually refers to the property of a material that inhibits triboelectric charging. Note: A material’s antistatic characteristic is not necessarily co-relatable with its resistively or resistance.

Auxiliary Ground Auxiliary ground is a separate supplemental grounding conductor for uses other than general equipment grounding.

B

Bonding Bonding is the permanent joining of metallic parts to form an electrically conductive path that will assure electrical continuity and the capacity to safely conduct any current likely to be imposed.

Breakaway Force Breakaway force is the force required to disconnect the ground cord from the cuff.

C

Charge Decay Charge decay is the decrease and/or neutralisation of a net electrostatic charge.

Charge Induction Charge induction is the displacement of charge in an isolated conductor when placed in an electric field (for example, from a charged body). Note: Momentary grounding of such a conductor would result in its gaining a net charge.

Charged Plate Monitor (CPM) A charged plate monitor (CPM) is an instrument used to measure the charge neutralisation properties of ionisation equipment.

Common Connection Point A common connection point is a device or location (less than 1 ohm within itself) where the conductors of two or more ESD technical elements are connected in order to bring the ungrounded ESD technical elements to the same electrical potential through equipotential bonding.

Common Point Ground Common point ground is a grounded device or location where the conductors of one or more technical elements are bonded.

Compliance Verification (Periodic) Compliance verification is the periodic testing done to indicate that the performance has not changed from initial baseline values to exceed selected limits.

Compliance Verification Equipment (Periodic Testing) Compliance verification is the periodic testing done to indicate that the performance has not changed from initial baseline values to exceed selected limits.

Component A component is an active or passive item such as a resistor, diode, transistor, integrated circuit, or hybrid circuit.

Component Failure Component failure is a condition in which a tested component does not meet one or more specified static or dynamic data sheet parameters.

Catastrophic Failure When an electronic device is exposed to an ESD event it may have caused a metal melt, junction failure or oxide breakdown, permanently damaging its circuitry and resulting in catastrophic failure. Such failure can usually be detected when the device is tested before shipping. If the ESD event occurs after the test the damage will go undetected until the device fails in operation.

Conductive The term “conductive” refers to the ability of a material to conduct a charge to ground; low resistance (i.e. less than 1 meg-ohm (106) – the closer to 1 meg-ohm, the slower the discharge.)

Conductive Flooring Material Conductive flooring material is a floor material that has a resistance to ground of less than 1.0 x 106 ohms. The term ‘conductive’ or ‘conductivity’ does not guarantee low charge generation. To prevent static charge and ESD damage to static sensitive components, flooring materials must measure in the required resistance range and either be used in conjunction with ESD footwear/heel straps or be low charge generating.

Conductive Material A conductive material is a material that has either a surface resistance of less than 1 x 104 ohms or a volume resistance of less than 1 x 104 ohms or a surface resistivity less than 1 x 105ohms/square or a volume resistivity less than 1 x 104 ohm-cm.

Note: “conductive flooring material” is not the same as “conductive material.”

Conductivity Conductivity is the ratio of the current per unit area (current density) to the electric field in a material. Conductivity is expressed in units of siemens/meter. In non-technical usage, conductivity is the ability to conduct current.

Conductor A conductor is a material with low electrical resistance that will effectively attract and transport an electrical charge to ground.

Examples of conductors are carbon, copper, aluminium and water. Practical examples of conductors are a lightning rod and a copper wire.

Corona Corona is the production of positive and negative ions by a very localised high electric field. The field is normally established by applying a high voltage to a conductor in the shape of a sharp point or wire.

D

Decay Rate Decay rate is the decrease of charge or voltage per unit time.

Decay Time Decay time is the time required for an electrostatic potential to be reduced to a given percentage (usually 10%) of its initial value.

Device A device is the product being processed by AHE (e.g., an integrated circuit [IC] or a printed circuit [PC] board).

Dielectric Dielectric is an insulating material that can sustain an electric field with little current flow.

Dielectric Strength Dielectric strength is the maximum electric field that a dielectric can sustain.

Discharge Current A discharge current is the current produced by causing a stored charge to flow out of a component into a conductor from an ESD simulator.

Discharge Time The discharge time is the time necessary for the voltage (due to electrostatic charge) to decay from an initial value to some arbitrarily chosen final value.

Dissipative Materials Dissipative materials is a material that has a surface resistance greater than or equal to 1 x 10E4 ohms but less than 1 x 10E11 ohms or a volume greater than or equal to 1 x 10E4 ohms but less than 1 x 10E11 ohms.

E

Electric Charge An electric charge is an absence or excess of electrons.

Electrostatic Discharge (ESD) “ESD” is the abbreviation for electrostatic discharge. Electrostatic discharge (ESD) is an uncontrolled surge of “static” between objects with different potentials. It is the rapid, spontaneous transfer of electrostatic charge induced by a high electrostatic field. Details of such processes, such as the rate of the charge transfer, are described in specific electrostatic discharge models. ESD events occur when people walk across various forms of flooring, then touch or approach static-sensitive components or devices.

Electrostatic Protected Area (EPA) “EPA” is the abbreviation for electrostatic protected area. An EPA (Electrostatic Protected Area) is a static-safe handling area where static-sensitive electronic components are handled, requiring special ESD protection. An example on an EPA could be a bench, a room or any other designated area and should not have and ‘static field’ greater than 100v maximum.

Electronics manufacturing and handling facilities have designated EPAs, where static-control measures are in place and stringently enforced – including the use of special ESD footwear – following protocols outlined in ANSI/ESD S20.20.

Electrostatic Discharge Protective Worksurface An electrostatic discharge protective worksurface is a worksurface that dissipates electrostatic charge from materials placed on the surface or from the surface itself.

Electrostatic Discharge Sensitivity (ESDS) Electrostatic discharge sensitivity (ESDS) is the ESD level that causes component failure.

Electrostatic Discharge Shield An electrostatic discharge shield is a barrier or enclosure that limits the passage of current and attenuates an electromagnetic field resulting from an electrostatic discharge.

Electrostatic Discharge Susceptibility (ESDS) Electrostatic discharge susceptibility is the propensity to be damaged by electrostatic discharge. (See also electrostatic discharge sensitivity).

Electrostatic Discharge Susceptible Item Electrostatic discharge susceptible item is an electrical or electronic piece part, device, component, assembly, or equipment item that has some level of electrostatic discharge susceptibility.

Electrostatic Field An electrostatic field is an attractive or repulsive force in space due to the presence of electric charge.

Electrostatic Potential Electrostatic potential is the voltage difference between a point and an agreed upon reference.

Equipotential The term “equipotential” refers to having the same electrical potential; of uniform electrical potential throughout.

ESD Event  An ESD event is the occurrence of a single electrostatic discharge from any source. Examples of source include ESD simulators, humans and other charged objects. ESD events far below the human threshold for perception—static charges humans cannot see, hear, or feel—can damage static-sensitive components/devices and cause product failure, disruption or financial loss. In work environments, most ESD events are caused by the static generated when people walk, called walking body voltage.

Electrostatic damage to static-sensitive electronic components/devices can occur at any point from manufacture to field service. Damage results from handing the devices in uncontrolled surroundings or when poor ESD control practices are used. Generally damage is classified as either a catastrophic failure or a latent defect.

ESD Grounding The ESD grounding system selected for use in a facility or situation that best suits the application: a) AC equipment ground; b) auxiliary ground; c) equipotential bonding.

Electrical Resistance Electrical resistance describes the capacity of a material to stop, or resist, the flow of electricity. Resistance tests are typically used to predict how quickly or slowly an ESD flooring material will transport static charges to ground; this is measured in ohms (Ω).

Electrification Time Electrification time refers to the time for the resistance measuring instrument to stabilise at the value of the upper resistance range verification fixture.

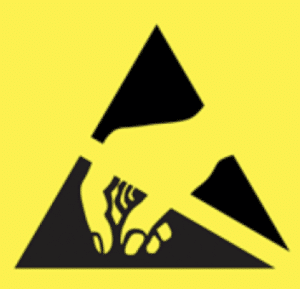

ESD Susceptible Symbol – The ESD Susceptibility Symbol, consists of a triangle, a reaching hand, and a slash through the reaching hand. The triangle means “caution” and the slash through the reaching hand means “Don’t touch.” Because of its broad usage, the hand in the triangle has become associated with ESD and the symbol literally translates to “ESD sensitive device, don’t touch.”

The ESD Susceptibility Symbol is applied directly to integrated circuits, boards, and assemblies that are static sensitive. It indicates that handling or use of this item may result in damage from ESD if proper precautions are not taken. If desired, the sensitivity level of the item may be added to the label.

Screenshot 2021-10-18 at 15.20.06

ESD Protected Symbol The ESD Protective Symbol, consists of the reaching hand in the triangle. An arc around the triangle replaces the slash. This “umbrella” means protection. The symbol indicates ESD protective material. It is applied to ESD furniture, mats, chairs, wrist straps, garments, packaging, and other items that provide ESD protection. It also may be used on equipment such as hand tools, conveyor belts, or automated handlers that is specially designed or modified to provide ESD control.

Screenshot 2021-10-18 at 15.22.11

F

Faraday Cage A faraday cage is a conductive barrier against ESD that attenuates a stationary electric field. e.g. Metallised Shielding Bag, Conductive Box etc.

Field Induced Charging Field induced charging is a charging method using electrostatic induction.

G

Ground In electrical terminology, the term “ground” refers to a conductive connection; representing “zero electrical potential”. It is the safe point of discharge of unwanted static electricity.

When something is grounded, it’s neutral; it has no charge. Connecting a conductive floor to ground ensures that static charges will be diverted to Earth through the conductive flooring system. Examples of typical grounds include: electrical conduit, building steel, copper bus bars and steel rods buried in the Earth.

Groundable Point A groundable point is a designated connection location or assembly used on an electrostatic discharge protective material or device that is intended to accommodate an electrical connection from the floor material to an appropriate ground.

Grounded The term “grounded” refers to being connected to Earth or some other conducting body that serves in place of the Earth.

I

Ionisation Ionisation is the process by which a neutral atom or molecule acquires a positive or negative charge.

Ioniser An ioniser is a specialised device which is designed to generate positive and/or negative air ions. Ionisers help to remove static charge on objects and surfaces by passing an electrical charge to molecules in the air. The primary function of an ioniser is to neutralise electrostatic charges on “process-essential” insulators and isolated (non-grounded) conductors. For more information, see our guide on ionisers in ESD control.

Isolated Conductor An isolated conductor is a non-grounded conductor. Examples of isolated conductors include: Conductive traces or printed circuit board components not in contact with ESD work-surface.

Insulative The property of “insulation” refers to a material’s ability to store as opposed to conduct electrical current.

An insulator is the opposite of a conductor. It does not allow the free flow of electrons, therefore it will more than likely cause problems to prevent a path to Earth, hold a ‘static’ field etc. Examples of insulative materials include: plastic, glass, wood and rubber.

Insulative Material The term “insulative material” refers to a material having a surface or volume resistivity ≥ 1 x 10E11 ohms.

Insulator An insulator is a material with high electrical resistance. It will not conduct a charge to ground. Examples of insulators are plastic, rubber, vinyl, glass and wood. A practical example of an insulator is the rubber or vinyl casings around common electrical wires.

L

Latent Failure – The term “latent failure” refers to a malfunction that occurs following a period of normal operation.

Latent failure, otherwise known as a latent defect, is much more difficult to identify. A device may be partially degraded yet continue to perform its intended function. However, the operating life of the device maybe reduced dramatically. This could cause premature systems failure which could prove extremely hazardous and very costly.

Low Charge Generation – The term “low charge generation” replaces the older, less descriptive term “antistatic” (or anti-static). Low charge generation is a property that refers to the propensity of a material (or flooring material) to inhibit static charges.

Low charge generation should not be confused with conductivity or grounding. A low charge-generating floor may or may not be electrically groundable. Likewise, a grounded floor may generate enough static to cause a damaging ESD event.

This is why ESD floors should be evaluated for both conductivity (electrical resistance) and charge generation.

N

Neutralise The term “neutralise” refers to eliminating an electrostatic field by recombing positive and negative charges, either by conducting the charge to ground or by introducing an equal opposite charge.

O

Offset Voltage Offset voltage refers to the observed voltage on the isolated conductive plate of a charged plate monitor that has been placed in an ionised environment.

OhmOhm is a unit of resistance. Symbolised by the Greek capital letter omega (Ω). It is defined as the resistance, at 0o C, of a uniform column of mercury weighing 14.451 grams. One ohm is the value of resistance through which a potential difference of one volt will maintain a current of one ampere.

P

Peak Offset Voltage For pulsed ionisers, the maximum value of the peak offset voltage for each polarity, as the ioniser cycles between positive and negative ion outputs.

Potential Difference Potential difference causes ESD when there is a static voltage difference between two items/objects: i.e. flooring, articles of clothing, shelving, conveyers, work surfaces, people.

Path To Ground The path to ground is an electrical link between a static-dissipative and conductive material and the Earth.

Point-To-Point Resistance Point-to-point resistance is the resistance in ohms measured between two electrodes placed on any surface.

Process-Essential Insulator – A process-essential insulator is necessary to build or assemble the finished product. When grounding of these is not possible, choosing a method to neutralise electrostatic charge is necessary. This can be achieved with ionisation. Examples of a process-essential insulator include: product plastic housing or PC board substrate.

R

Resistance Range Resistance range refers to a user-specified upper and lower resistance values which define the user-acceptable resistance values of a wrist strap or wrist strap system.

Resistance To Ground Resistance range refers to a user-specified upper and lower resistance values which define the user-acceptable resistance values of a wrist strap or wrist strap system.

Resistance To Groundable Point Resistance to groundable point is the resistance in ohms measured between a single electrode placed on a surface and a groundable point.

S

Static Electricity Static electricity is a stationary electrical charge/ field, typically produced by friction, which causes sparks, crackling or the attraction of dust or hair.

All items are made of small atoms. These atoms are made up of even smaller items called protons, neutrons and electrons. The protons are charged positive, the neutrons have no charge and the electrons are charged negative. Under normal conditions, there are the same amount of protons and electrons giving atoms no charge.

However, these electrons can move. When separating or rubbing together materials, electrons can move from atom to atom or from one material to another (triboelectric charges). This can mean that atoms can hold a positive or negative charge. (Dependant on movement and direction of electrons). If the material in question is an insulator, this charge can be held and not move. This is called static electricity.

The rapid movement or decay of these charges can cause expensive problems, whether it is huge and dangerous charges such as lightening or simply an annoying (and sometimes painful) “electric shock” when touching a filling cabinet or when getting out of a car. (These charges are normally on you!).

These charges can be a huge problem for small sensitive electronic devices. Some devices can be damaged or destroyed by as little as 10 volts. Charges on your body simply by walking or even sitting at your chair can be in excess of 5000 volts (human body material). This is because of items of clothing rubbing together or as simple as shoes separating from the ground.

When items are insulators such as carpets, charges are much higher – imagine the damage this could cause. This is why it is important that insulators should be avoided and all possible static electricity generators (such as you) should (must) be grounded to eliminate any build up of charges.

Static GenerationAn example of static generation is when people walk across a floor, the friction between the soles of their shoes and the surface of the floor generates static—also called walking body voltage.

Static Dissipative Static dissipative refers to increased resistance, which protects better against an ESD (between 1 meg-ohm and 1000 meg-ohm).

Static Control Static control is a generic term for measures taken to diminish the effects of electrostatic discharge. Anti-static products such as ESD mats, ESD bags or conductive flooring are used to create an ESD protected area where static is controlled.

Surface Resistance – Surface resistance is the resistance of a surface measured by a concentric ring electrode test method defined in 61340-5-1 and IEC 61340-2-3: 2000.

It is the ratio of DC voltage to the current flowing between two electrodes of specified configuration that contact the same side of a material. This measurement is expressed in ohms.

Static Decay Test A static decay test is a procedure in which an item is first charged to a specified voltage, then allowed to dissipate to a specified voltage while measuring the duration of the discharge.

Surface Resistivity  Not to be confused with surface resistance, surface resistivity is a measurement of a material’s inherent electrical resistance. For electric current flowing across a surface, the ratio of DC voltage drop per unit length to the surface current per unit width.

In effect, the surface resistivity is the resistance between two opposite sides of a square and is independent of the size of the square or its dimensional units.

To test a material’s electrical resistance, a surface resistivity meter can be used. Surface resistivity measurements are expressed in ohms/square.

T

Tribocharge Tribocharge, otherwise known as triboelectric charge or tribocharging, is the generation of electrostatic charges by the rubbing or separating of surfaces. The molecules in the two materials interact, forming an electrical bond. Separating the materials creates friction. This frictional force draws electrons away from one material and deposits an excess of electrons on the other, leaving a positive or negative electrical charge on both materials.

U

Unprotected Area – Any area outside an electrostatic discharge protected area.

Z

Zap In layman’s terms, the term “zap” refers to an electrical discharge or electrostatic discharge (ESD). A “zap” can occur when touching a filling cabinet, getting out of a car or walking across a carpet and touching a door handle.

For More ESD Guidance, Get In Touch With Bondline

With over 35 years of experience, our team have an abundance of knowledge of the ESD industry and static control products. If you need any help choosing a product or would like to ask us a question, we’d be more than happy to help! Please get in touch with us on +44 (0)1793 511000, sales@bondline.co.uk or fill in the contact form below.

To learn more about ESD, Bondline can offer a complete ESD training course for your business. We can do this in small groups or presented on a ‘one-to-one’ ‘train-the-trainer’ basis. Our trainers have many years of experience of training people on ESD and have a great knowledge of ESD themselves; so you can be sure you will be provided with the very best, expert trainers. If you are interested in ESD training, please contact us.
