A Guide to Anti-Static, Static-Dissipative and Conductive Foam

Understanding ESD Safe Foam

Intricately manufactured electronic components can be very delicate and fragile; especially those that are electrostatic-sensitive. Extra precautions must be taken, particularly during transportation and shipping, to prevent physical and electrostatic damage to the component or device. Fortunately, there is an answer to this: ESD safe foam.

Static protective foams offer protection from both physical and static damage. While they help to protect static sensitive components from electrostatic discharge, they are also widely used for their exceptional cushioning protection. Combined with exterior packaging (i.e. conductive box, container, etc.), ESD safe foam can absorb any impact, abrasion, and shock caused during shipment and handling. As a result, the products will arrive at their destination undamaged, leading to fewer returns, minimising the costs of replacements and greatly reducing product rejects. ESD safe foam packaging can even boost long-term sales through reliable supply, customer satisfaction and an enhanced company reputation.

ESD safe foam comes in three various types: conductive, anti-static and static dissipative, each with their unique properties. When it comes to choosing between anti-static, static-dissipative and conductive foams, it helps to understand the differences between the three. In this article, we will guide you on the different types of ESD safe foams, their uses and benefits, as well as helping you to decide which foam is best suited to your application.

What Is Conductive Foam?

The first type of ESD safe foam we will be introducing is conductive foam. Conductive foam is a polyethylene foam filled with carbon, giving it its conductive properties and distinctive black colour. There are two types of conductive foam: low-density conductive foam and high-density conductive foam. Although similar, the two types of conductive foams offer different properties and applications from each other. Designed for repeat use, the foam offers an extremely reliable method for protecting static-sensitive components in transit.

Conductive foam can help to minimise the effects of ESD on static-sensitive electronic components by acting like a Faraday cage when an item is fully enclosed within it. Because of this, a static shielding bag is not needed as an outer container when using conductive foam. Despite it being the most expensive type of ESD foam, it serves its purpose in fully protecting your ESD sensitive component (plus, it is better value for long-term applications!)

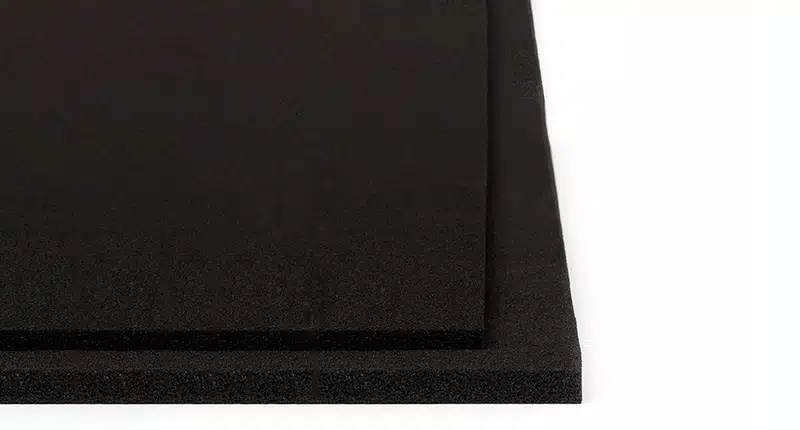

FoamBHD wide image 3

Key Benefits of Conductive Foam:

  • Permanent electrostatic discharge protection
  • Less than 10^(4) ohms surface / volume resistivity
  • Ideal for multi-trip, storage, and in-plant handling applications
  • Can be stamped or shaped to accommodate the most demanding criteria
  • Performance isn’t affected by atmospheric conditions
  • Quick transfer of static charge
  • Non-corrosive
  • Very low shedding
  • Extra cushioning protection for delicate components

Conductive Foam Usage Considerations:

  • Better value for long-term applications (can be reused)
  • Not recommended in applications where static dissipative properties are required
  • Extremely reliable method for protecting components in transit

How Low-Density and High-Density Conductive Foam Works

While conductive foam is similar to standard packaging foams, there is one crucial difference – the addition of carbon to the polymer mix during the manufacturing process to provide a high level of conductivity. This allows any electric current to pass through the cell structure of the foam and away from the component. Thus, a static shielding bag is not needed as an outer container when using conductive foam.

Overall, the foam will have permanent conductive performance, meaning it is ideal for multi-trip packaging and in-plant handling applications. Its performance isn’t affected by atmospheric conditions such as humidity.

This ESD safe material will typically have a surface resistivity of fewer than 10^(4) ohms/sq. and a volume resistivity of fewer than 10^(4) ohms/cms, which offers a quicker transfer of any static charge to a grounding source or adjacent conductive material.

Difference Between High-Density and Low-Density Conductive Foam

High-density conductive foams are semi-rigid and have no structural strength. This type of foam should be only used for inserting “legged” static sensitive components, because it “shorts out” all of the pins, ensuring no potential difference between any of them.

In contrast, low-density conductive foams are softer, lightweight, and much more flexible compared to high-density foams. This makes them a suitable choice for transit packaging and cushioning of static-sensitive components such as circuit boards or hard disk drives.

Left image: high density conductive foam.                            Right image: low density conductive foam.

High Density Conductive Foam - Bondline Low Density Conductive Foam - Bondline

What Is Anti-Static Foam?

Next, we move on to anti static foam. Anti-static foam, also known as pink anti-static foam, provides excellent cushioning and exceptional mechanical and electrical protection for static-sensitive components such as computer chips, circuit boards, etc. These specialised foams help in eliminating static discharge and provide a high degree of cushioning protection from shock, impact, and vibration. Due to this, this type of foam is widely used in many forms of anti-static packaging / storage devices like conductive euro boxes, component boxes, transit packs and so forth.

Anti-static foam is a polyurethane foam that is chemically enhanced with anti-static agent (surfactant). Its distinct pink colouring makes this type of foam easy to identify. When rubbed against itself, the foam will not generate a static charge. Generally, anti-static foam is used for single trip shipping and is not reusable.

The unique properties of pink anti-static foam allow the foam to slowly dissipative electrostatic charges that are potentially created by adjacent components, the component itself or even human handlers during the transit process. To ensure the static-sensitive component is fully protected during shipping, make sure the component is placed in a static shielding bag to protect it from outside electrostatic charges.

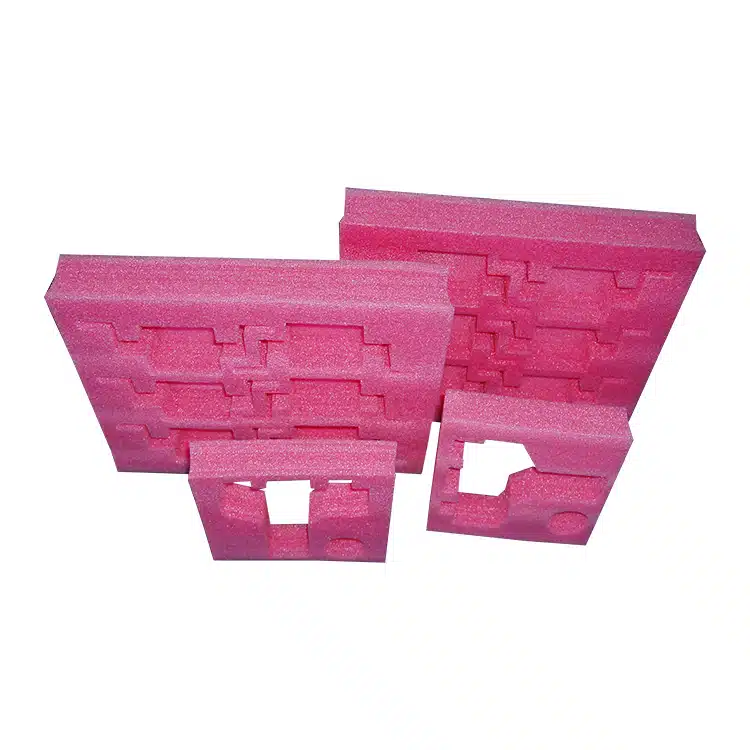

Various sizes of pink anti static foam cut, profiled and stamped to bespoke requirements by BondlineCorstat Transit Pack With Foam

How Anti-Static Foam Works

Manufactured to include an anti-static additive, these pink anti-static foams give a surface conductivity that will decrease over time. A commonly used additive to manufacture the foams is Glycerol Monostearate (GMS). This additive is introduced during the extrusion phase of the material manufacture. It will then slowly migrate to the edges of the foam before forming lines on the surface.

One end of the microscopic anti-static molecule protrudes from the material edge and draws in moisture from the ambient air to allow a conductive path for current to pass through. This type of foam typically has a volume resistivity in the range of 10^(10) – 10^(12) ohms/cms and often has a surface resistivity that is higher still. Due to the way in which the foam works, performance can be enhanced with increased atmospheric humidity.

Key Benefits of Anti-Static Foam:

  • Protection of static-sensitive electronic components
  • Unaffected by high atmospheric humidity
  • Extremely cost-effective, assisting in reducing damage costs
  • Provides extra cushioning protection for delicate components
  • Customisable to suit any application
  • Sponge / soft material

Anti-Static Foam Usage Considerations:

  • Not recommended for lead insertion applications
  • When exposed to the environment, the foam will not discolour over time
  • Used for single trip shipping
  • Used for moulding around parts

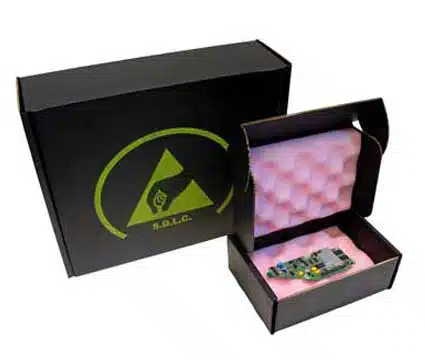

Corstat transit pack with component, lined with pink anti-static foam. Bondline Electronics Ltd.

What Is Static Dissipative Foam?

The last type of ESD foam we will talk about it static-dissipative foam. Static dissipative foam, often blue in colour, falls between in the middle range of electrical resistance; greater than anti-static and lower than conductive. This type of foam allows the static charge to slowly dissipate from its surface to ground, preventing sudden electrostatic discharge. Controlling the speed in which the static charges go to the ground, helps the foam protect the material enclosed inside of it.

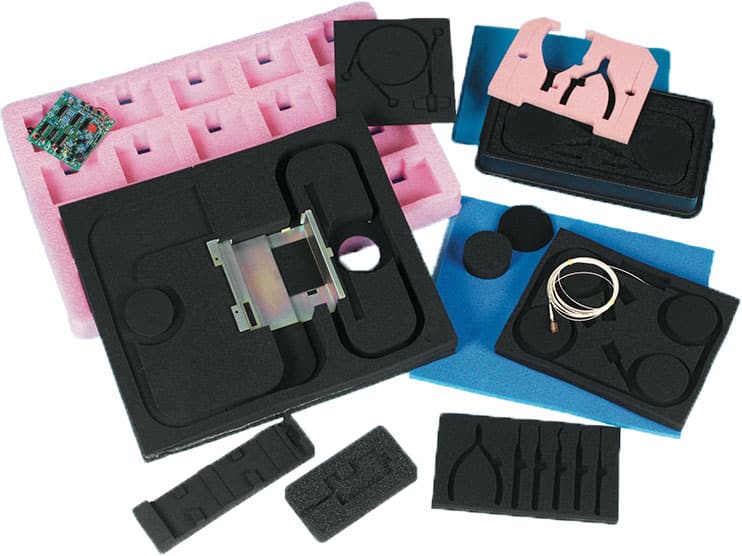

Image of an assortment of ESD safe foams including, pink anti-static foam, black conductive foam and blue static-dissipative foam.



Anti-static foam - Bondline



Deciding On Which Type of ESD Foam You Need

Now you know about the three types of ESD foams, you may ask yourself “so, which type of foam do I need?“. The choice of ESD safe foam material depends on several factors, most importantly the specific requirements of the electronic components being protected. To help guide you on choosing the best foam for your application, we have listed several key points to consider.

  • Component sensitivity: If the component is highly sensitive, a foam with a higher ESD protection might be necessary (i.e. conductive foam).
  • Environment: Areas with high humidity might require different types of ESD foam compared to dry environments.
  • Application: Will you be inserting leads into the foam? Do you need soft packaging to protect your sensitive components during transit?
  • Usage: Will the foam be used for single-trip or multi-trip shipping? Will it be needed for long-term applications or short-term applications?
  • Compliance to ESD standards: Foams that meet the required ESD standards assures the foam’s quality and efficacy (international standards include the ANSI/ESD S20.20, EN61340-5-1 and IEC 61340-5-1).
